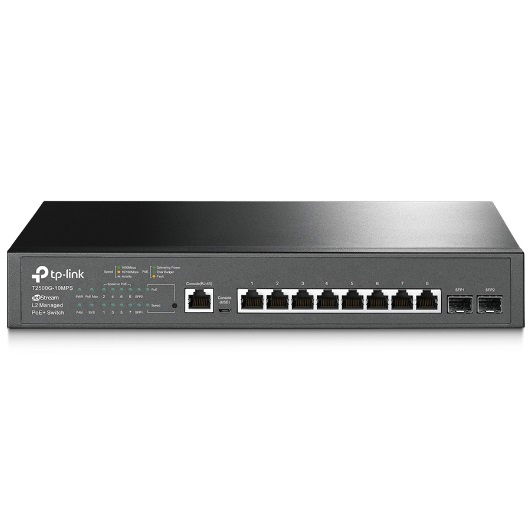

TP-Link T2500G-10MPS JetStream 8-Port Gigabit L2 Managed PoE+ Switch with 2 SFP Slots

JetStream T2500G-10MPS from TP-Link is a layer 2 managed switch equipped with 8 gigabit RJ45 ports and 2 SFP slots. All RJ45 Ports support the 802.3af/at (PoE+) standard, supplying total PoE power of 116W.

• Features 8 PoE+ ports compliant with 802.3af/at, 116W total PoE power output and an array of PoE management options
• Gigabit Ethernet connections on all ports for fast data transfer speeds
• Selectable RJ45 console port and Micro-USB console port
• Advanced security features including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• Web/CLI managed modes, SNMP, RMON and Dual Image provide abundant management features

Hardware:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Interface: 8 10/100/1000Mbps RJ45 ports, all supporting PoE+, 2 Gigabit SFP Slots, 1 RJ45 Console Port, 1 Micro-USB Console Port
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: 1

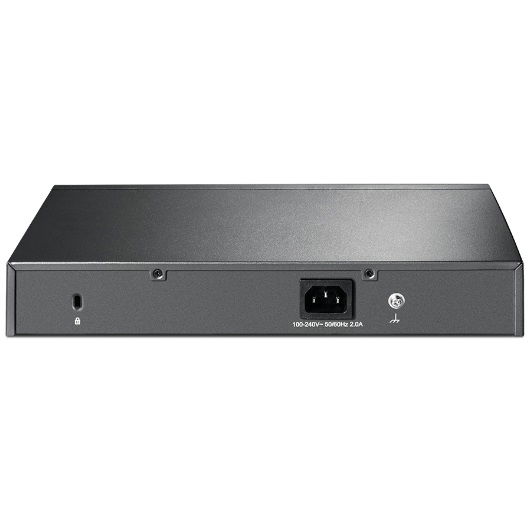

• Power Supply: 100~240VAC, 50/60Hz
• Dimensions (W x D x H): 294 x 180 x 44 mm
• Mounting: Rack Mountable

Performance:

• Bandwidth/Backplane: 20Gbps
• Packet Forwarding Rate: 14.9Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4Mb
• Jumbo Frame: 10KB

Environment:

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.

• Switch
• Power Cord
• Quick Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
