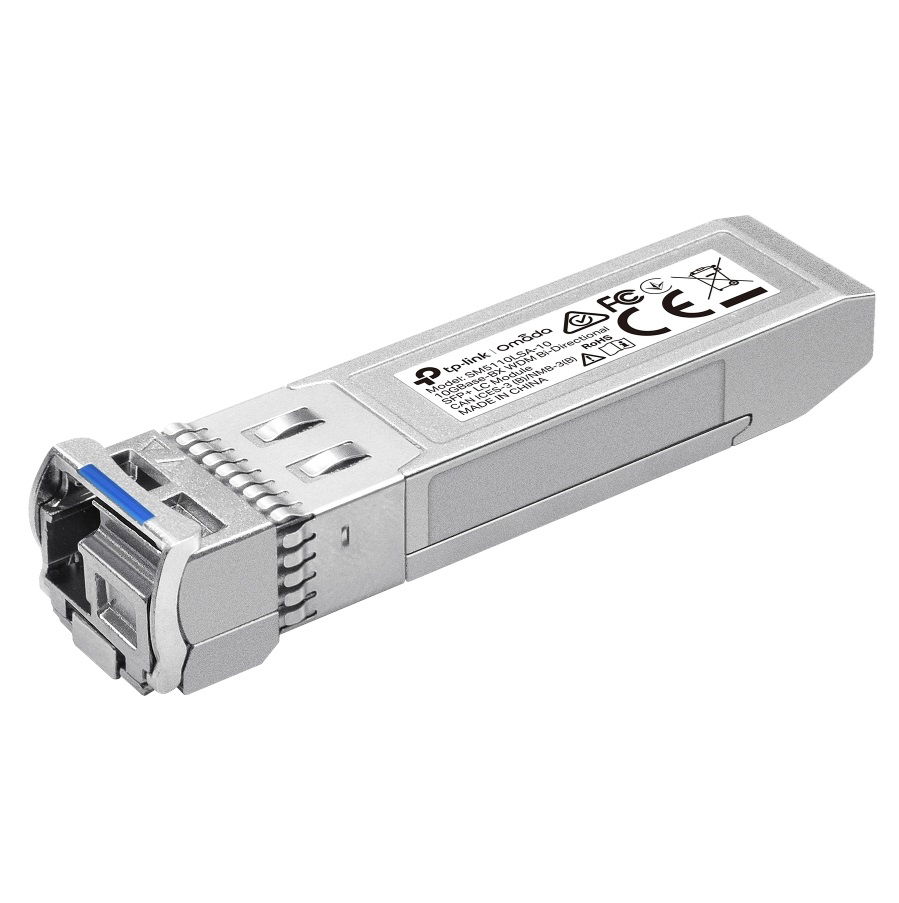

TP-Link SM5110LSA-10 Omada 10GBase-BX WDM Bidirectional SFP+ LC Module

The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.

• Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
• Single mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
• Compatible with switches with 10G ports like SG3428X and SG3452X

• Standards and Protocols: IEEE 802.3ae, SFF 8431, SFF 8432, SFF-8472
• Wave Length: TX: 1330nm; RX: 1270nm
• Power Supply: 3.3V
• Fiber Type: 9μm/125μm Single-Mode
• Max. Cable Length: 10km
• Data Rate: 10.3125 Gbps
• Connector: LC/UPC
• Regulatory Compliance: CE, FCC, RoHS
• Operating Temperature: 0°C to 70°C (32–158 ℉)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• DDM: Yes
• Hot Swappable: Yes
• Dimensions (W x D x H): 57 x 14 x 12.0 mm
