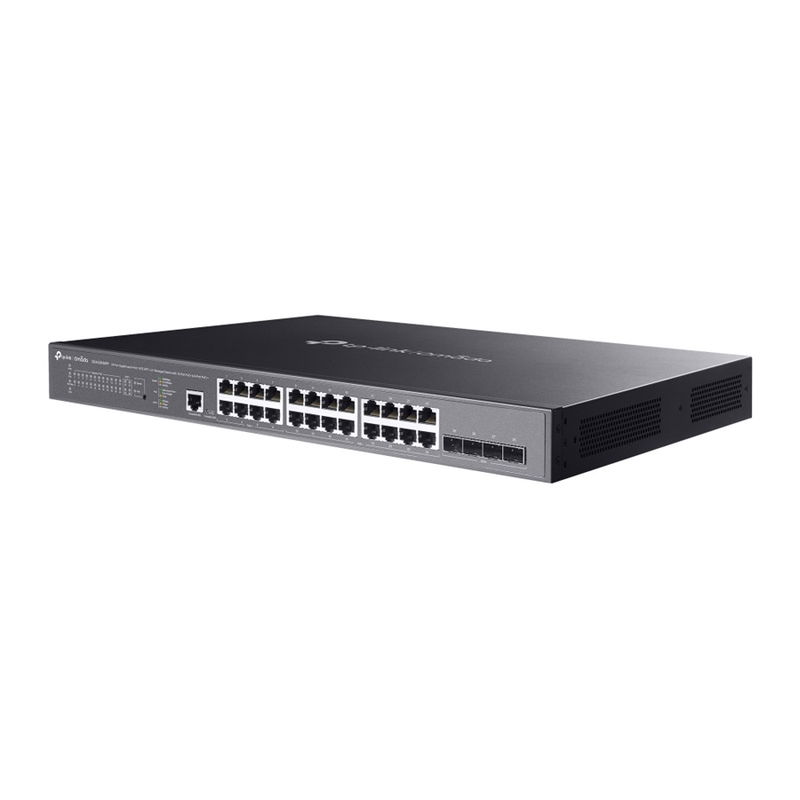

TP-Link SG3428XMPP Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Empowering the high-power devices with Gigabit PoE++ ports.

• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 500 W total PoE budget
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Hardware Features:

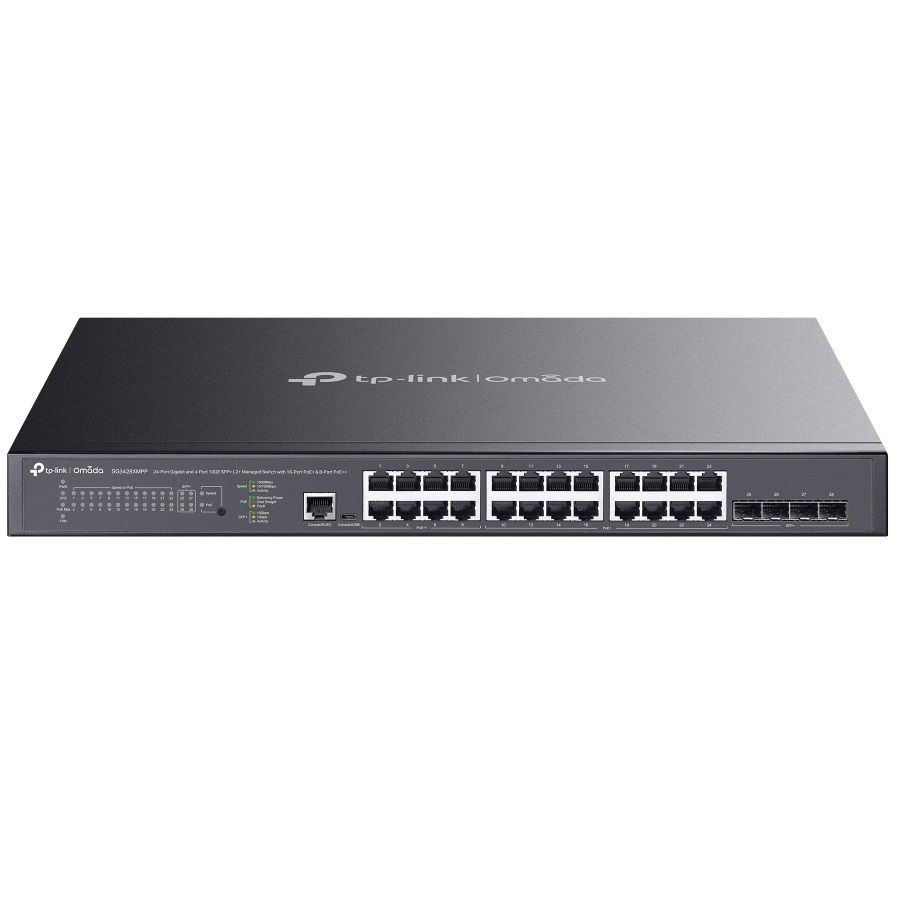

• Interface: 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB - Console Port
• Fan Quantity: 3
• Physical Security Lock: Yes

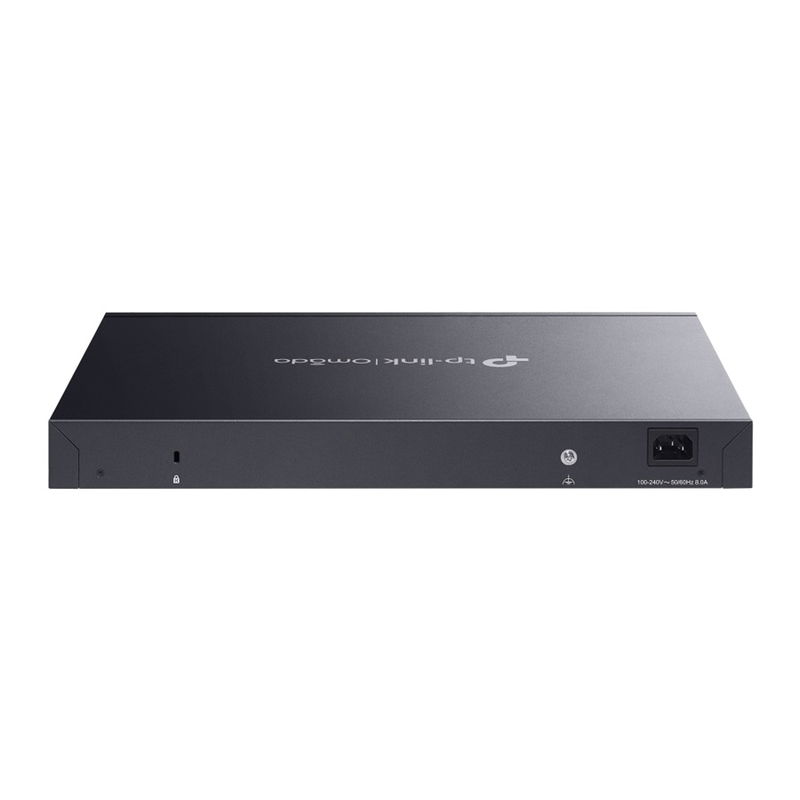

• Power Supply: 100-240 V AC~50/60 Hz
• PoE Ports (RJ45): Standard: 802.3at/af/bt compliant, PoE++ Ports: Ports 18 (up to 90 W PoE Output per Port), PoE+ Ports: Ports 924 (up to 30 W PoE Output per Port)
• Power Budget: 500 W
• Dimensions (W x D x H): 440×330×44 mm
• Mounting: Rack Mountable
• Max. Power Consumption: 605.5W (110V/60Hz) (with 500W PD connected)
• Max Heat Dissipation: 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected)

Performance:

• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB

Software Features:

• Quality of Service: 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Bandwidth Control: Port/Flow-based Rating Limiting, Smoother Performance, Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
  L2 and L2+ Features: 128 IP Interfaces: Support IPv4/IPv6 Interface, Static Routing: 48 IPv4/IPv6 Static Routes, Static ARP: 128 static entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP. DHCP Server, DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring
• L2 Multicast: Supports 1000 (IPv4, IPv6) IGMP groups, IGMP Snooping, IGMP Authentication, Multicast VLAN Registration (MVR), MLD Snooping, Multicast Filtering: 256 profiles and 16 entries per profile
• Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
• ISP Features: L2PT (Layer 2 Protocol Tunneling), Device Link Detect Protocol (DLDP), PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlow
• VLAN: VLAN Group: Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN: 30 Entries, Protocol VLAN: Protocol Template 16, Protocol VLAN 16, Private VLAN, GVRP, VLAN VPN: VLAN Mapping, VLAN Replace, Voice VLAN
• Access Control List: Time-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 - ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
• Security: IP-MAC-Port Binding, IPv6-MAC-Port Binding, DoS Defend, DHCP Filter, Static/Dynamic Port Security: Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode, 802.1X, AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control
• IPv6: IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• MIBs: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB

Management Features:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller. Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features: Web-based GUI, Command Line Interface (CLI) through console port, telnet, SNMPv1/v2c/v3, SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log

Others:

• Certification: CE, FCC
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

• SG3428XMP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
