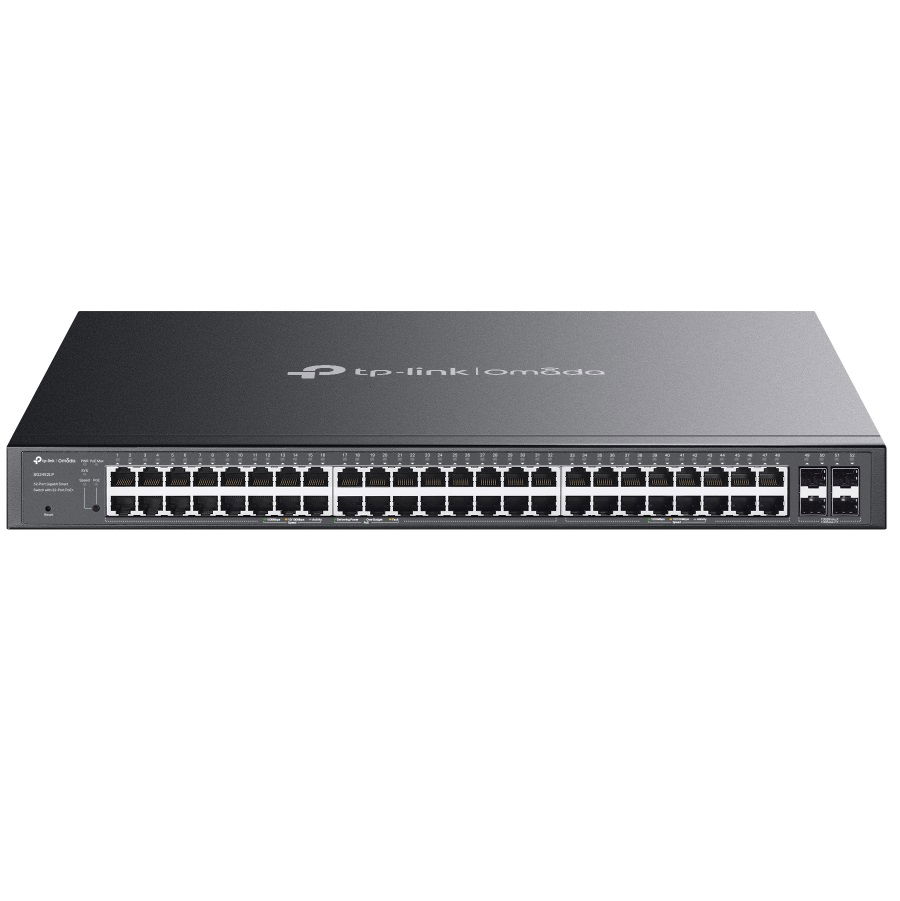

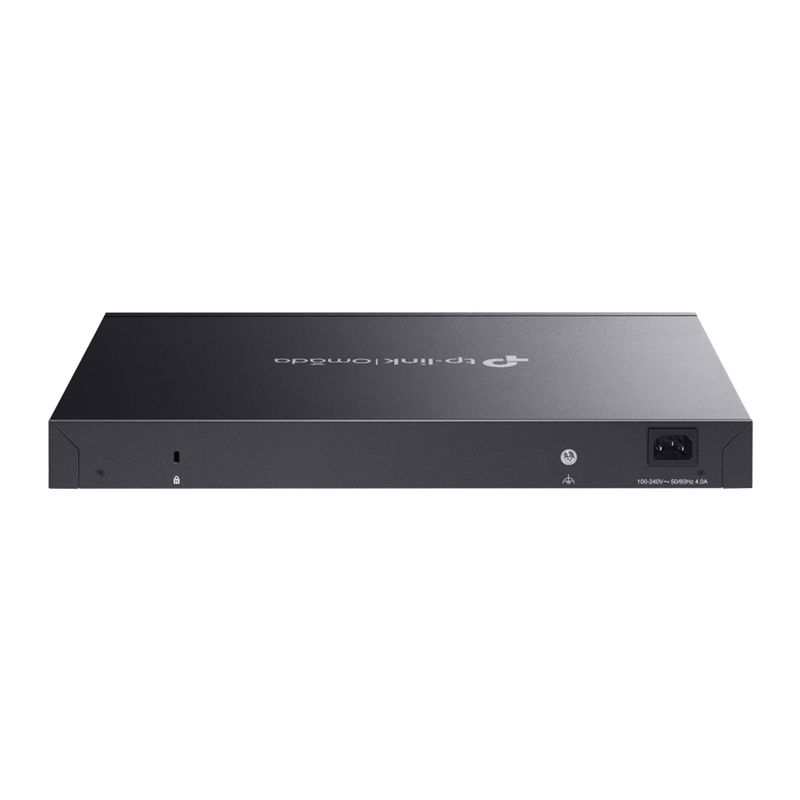

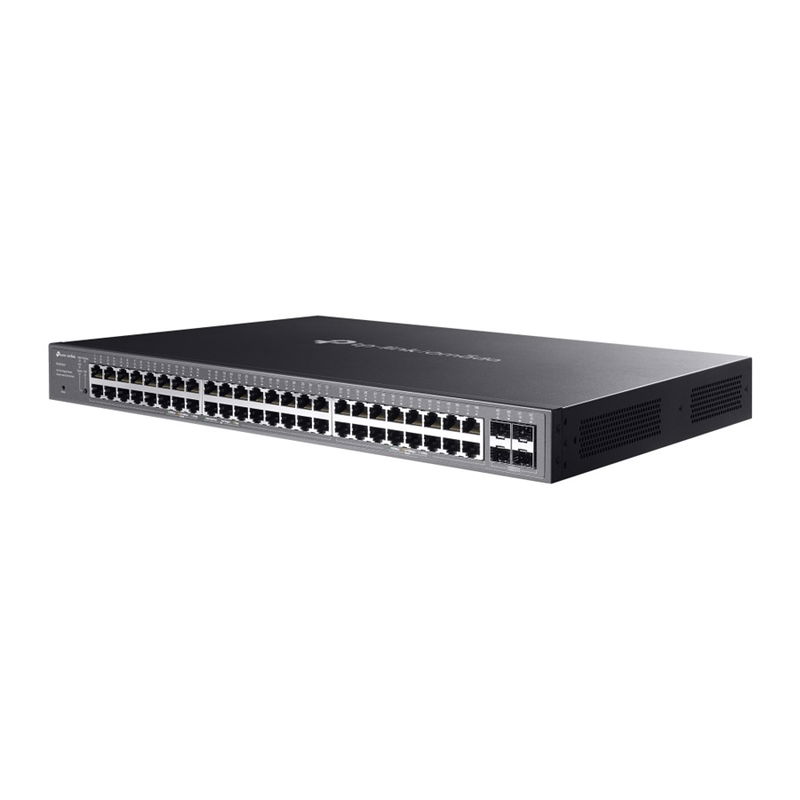

TP-Link SG2452LP Omada 52-Port Gigabit Smart Managed Switch with 32-Port PoE+

Easily build a whole 10G multi-gigabit network with the TP-Link SG2452LP Smart Switch

• 32× Gigabit 802.3af/at PoE+ ports
• 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design

Hardware Features:

• Interface: 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 4× Gigabit SFP Slots
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: 100-240 V AC~50/60 Hz
• PoE Ports (RJ45): Standard: 802.3at/af compliant; PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port); PoE Power Budget: 230 W
• Dimensions (W x D x H): 440×330×44 mm
• Mounting: Rack Mountable
• Max. Power Consumption: 304.5W (110 V/60 Hz) (with 230 W PD connected)
• Max. Heat Dissipation: 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected)

Performance:

• Switching Capacity: 104 Gbps
• Packet Forwarding Rate: 77.37 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB

Software Features:

• Quality of Service: 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control: Port/Flow-based Rating Limit, Smoother Performance, Storm - Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
• L2 and L2+ Features: 16 IP Interfaces: Support IPv4/IPv6 Interface, Static Routing: 32 IPv4/IPv6 Static Routes, DHCP Server, DHCP Relay, DHCP L2 Relay, Static ARP, Proxy ARP, Gratuitous ARP, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED
• L2 Multicast: 511 IPv4, IPv6 shared multicast groups, IGMP Snooping, Multicast VLAN Registration (MVR), Multicast Filtering, Limited IP Multicast (256 profiles and 16 entries per profile)
• Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
• VLAN: VLAN Group: Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN: 12 Entries, Protocol VLAN, GVRP, Voice VLAN
• Access Control List: Support up to 230 entries, Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Combined ACL, Rule Operation: Permit/Deny, Policy Action, ACL Rules Binding
• Security: IP-MAC-Port Binding, AAA, 802.1X, IP/IPv6-MAC Binding, IP Source Guard, IPv6 Source Guard, DoS Defend, Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control
• IPv6: IPv6 Static Routing and ACL, IPv6 Dual IPv4/IPv6, IPv6 Interface, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• MIBs: MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB (RFC1757, rmon 1,2,3,9)

Management Features:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features: Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

Others:

• Certification: CE, FCC, RoHS
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

• SG2452LP
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
