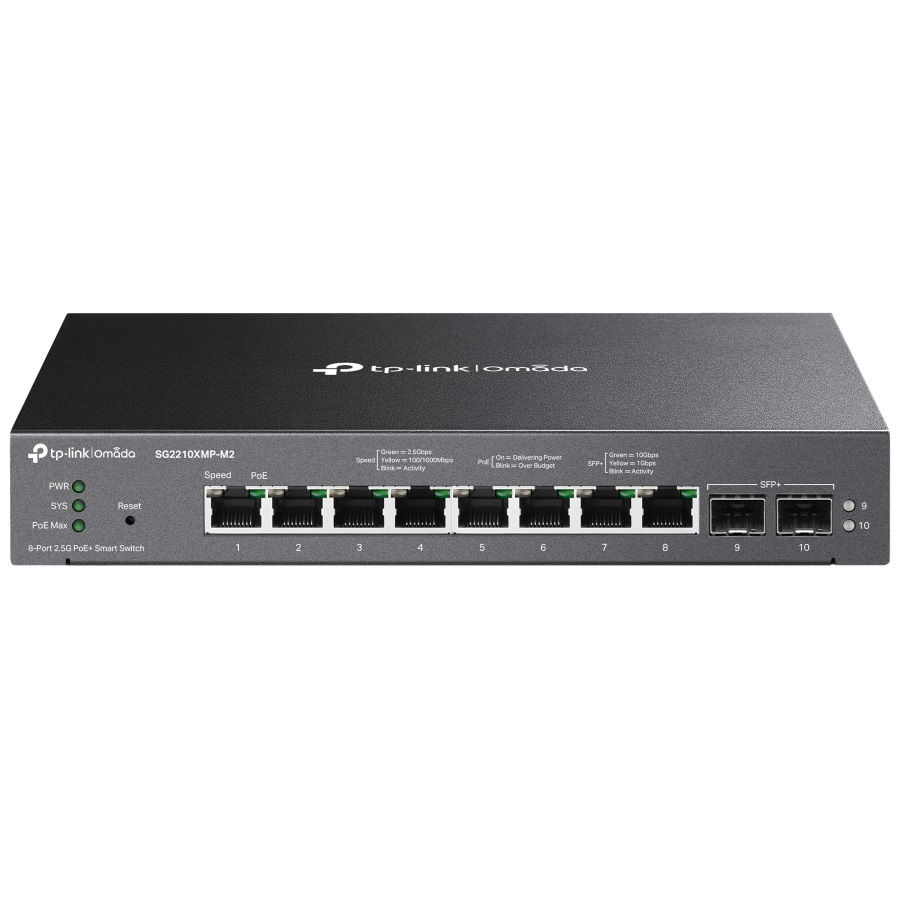

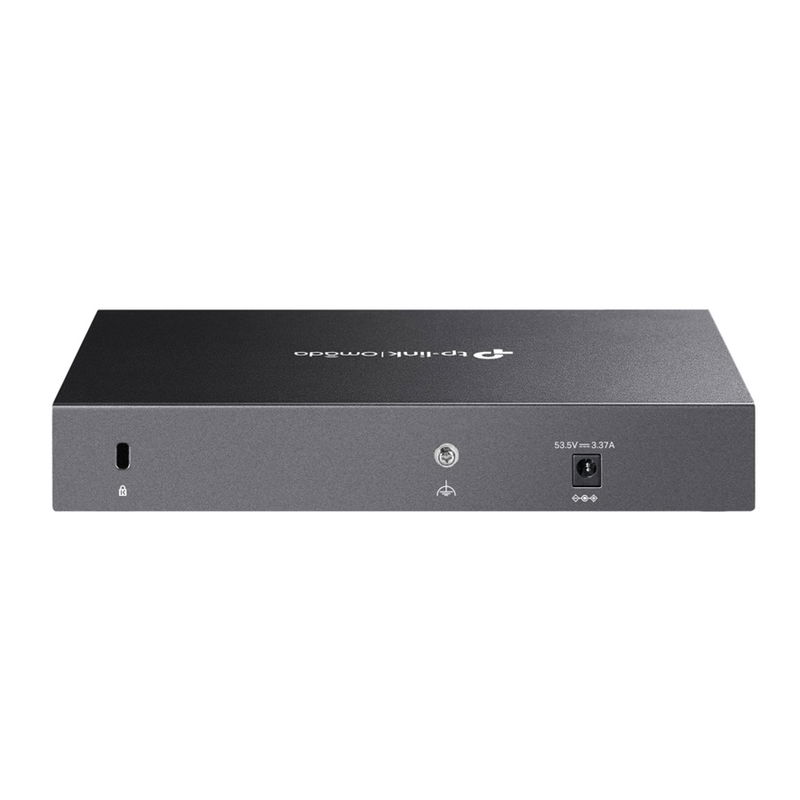

TP-Link SG2210XMP-M2 Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Managed Switch with 8-Port PoE+

SG2210XMP-M2 is a 2.5G multi-gigabit switch with eight 2.5G PoE+ ports and two 10G uplink ports, ideal for connecting multi-gigabit WiFi 7/6 access points. Up to 160 W PoE budget, fanless design with compact and durable metal casing, and desktop/wall-mounting design make it suited for different environments. High-performance static routing, advanced security features, a selection of Layer 2 management options, and integration into the Omada SDN (Software-Defined Networking) meet the demand of reliable business networking.

• 8× 2.5 Gbps 802.3at/af-compliant PoE+ ports
• 2× 10G SFP+ Slots
• 160 W total PoE budget with up to 30 W PoE output per port
• Centralised cloud management via web or the Omada app
• Supports standalone management
• Static Routing
• Fanless design for quiet operation
• Desktop/Wall-Mounting

Hardware Features:

• Interface: 8× 100/1000/2500 Mbps RJ45 PoE+ Portsm 2× 10G SFP+ Slots
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: 53.5VDC/3.37A Power Adapter
• PoE Ports (RJ45): Standard: 802.3at/af compliant, PoE+ Ports: 8 Ports, PoE Power Budget: 160 W
• Dimensions (W x D x H): 226 × 131 × 35 mm
• Mounting: Desktop/Wall-Mounting
• Max. Power Consumption: 180.1 W (110V/60Hz) (with 160 W PD connected)
• Max. Heat Dissipation: 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

Performance:

• Switching Capacity: 80 Gbps
• Packet Forwarding Rate: 59.52 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB

Software Features:

• Quality of Service: 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, Queue Weight Config, Bandwidth Control, Smoother Performance, Storm Control
• L2 and L2+ Features: 2 IP Interfaces: Support IPv4/IPv6 Interface, Static Routing: 32 IPv4/IPv6 Static Routes, DHCP Server, DHCP Relay, DHCP L2 Relay, Static ARP, Proxy ARP, Gratuitous ARP, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED
• L2 Multicast: 511 IPv4, IPv6 shared multicast groups, IGMP Snooping, Multicast VLAN Registration (MVR), Multicast Filtering, Limited IP Multicast (256 profiles and 16 entries per profile)
• Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
• VLAN: VLAN Group, 802.1Q Tagged VLAN, MAC VLAN: 12 Entries, Protocol VLAN, GVRP, Voice VLAN
• Access Control List: Support up to 230 entries, Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Combined ACL, Rule Operation: Permit/Deny, Policy Action, ACL Rules Binding
• Security: IP-MAC-Port Binding, AAA, 802.1X, IP/IPv6-MAC Binding, IP Source Guard, IPv6 Source Guard, DoS Defend, DHCP Filter, Static/Dynamic/Permanent Port Security, Broadcast/Multicast/Unicast Storm Control, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control
• IPv6: IPv6 Static Routing and ACL, IPv6 Dual IPv4/IPv6, IPv6 Interface, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications
• MIBs: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB

Management Features:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features: Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

Others:

• Certification: CE, FCC, RoHS
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

• SG2210XMP-M2 Switch
• Power Adapter
• Quick Installation Guide
• Rubber Feet
