Key Details:
- Model: TL-SG1005P-PD
- Part #: DV018206
- Warranty: 5 Years
- Brand: TP Link
Ask Our Experts:

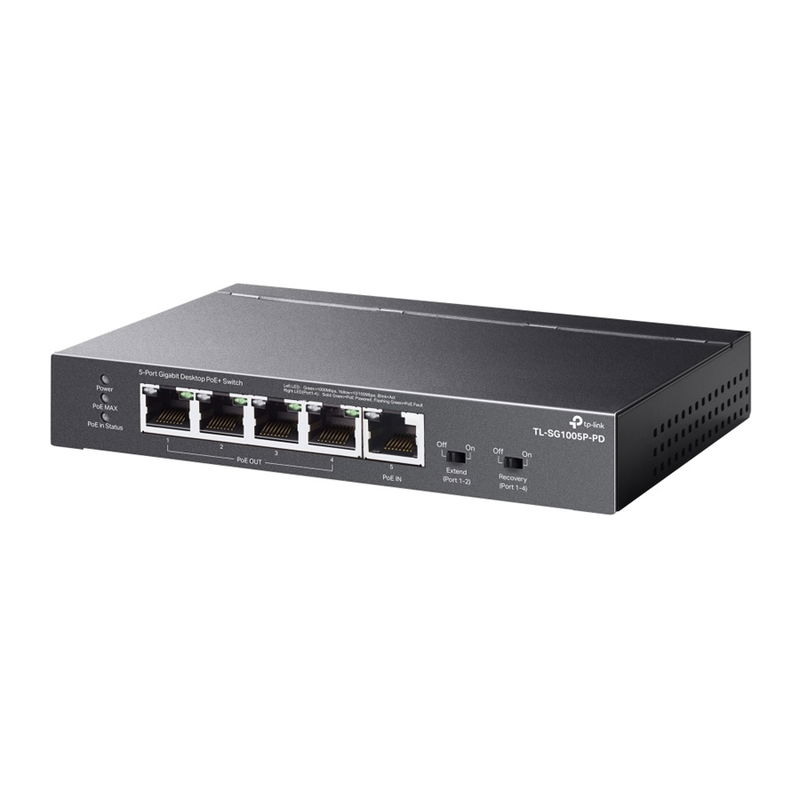

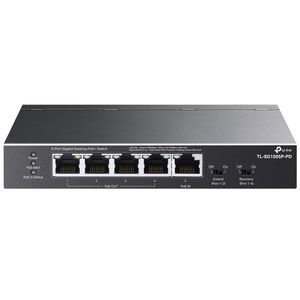

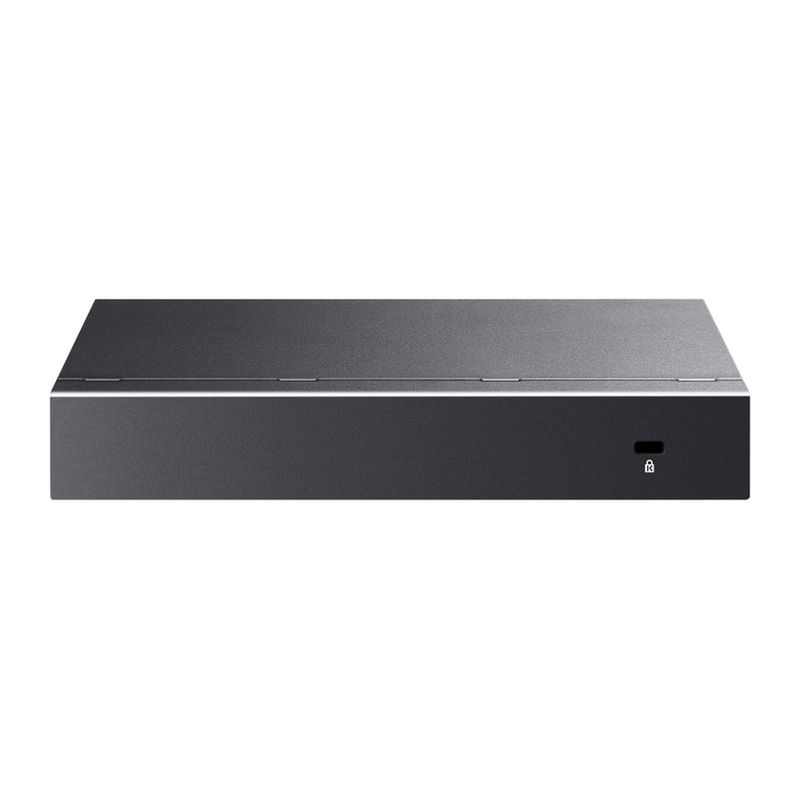

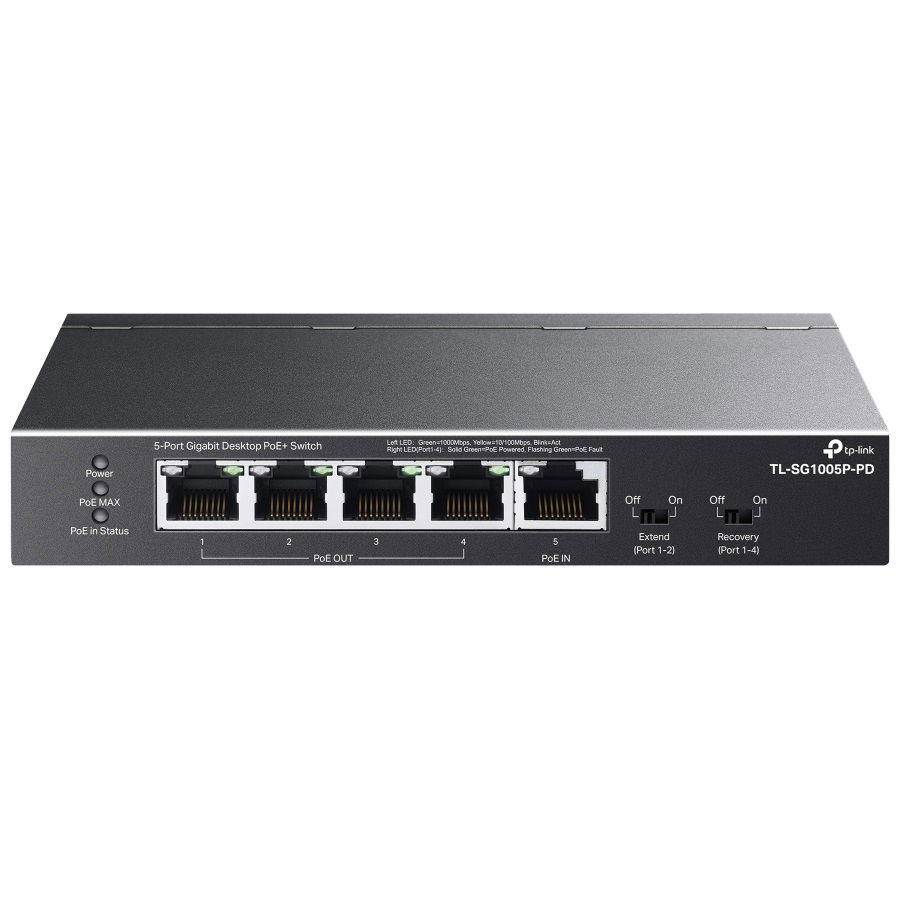

                                                        TP-Link SG1005P-PD 5 Port Gigabit PoE Powered Unmanaged Switch with 1-Port PoE++ In and 4-Port PoE+ Out
TP-Link SG1005P-PD 5 Port Gigabit PoE Powered Unmanaged Switch with 1-Port PoE++ In and 4-Port PoE+ Out
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
- Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Hardware Features:
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
- Interface: 5× 10/100/1000Mbps RJ45 Ports, 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4), 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at), AUTO Negotiation, AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: Only Powered by PoE Device
- PoE Ports (RJ45): PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4, PoE Out Ports: Ports 1-4, compliance with 802.3af/at
- PoE Power Budget: 66 W when powered by 802.3bt Type 4 (90 W), 47 W when powered by 802.3bt Type 3 (60 W), 21 W when powered by 802.3at (30 W), 9 W when powered by 802.3af (15.4 W)
- Dimensions (W x D x H): 158 × 101 × 25 mm
- Max. Power Consumption: 2.68 W (90W PoE In, with no PD connected), 68.59 W (90W PoE In, with 66 W PD connected)
- Max. Heat Dissipation: 9.112 BTU/h (90W PoE In, with no PD connected), 233.206 BTU/h (90W PoE In, with 66 W PD connected)
Performance:
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2k
Software Features:
- Advanced Features: Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission), PoE Auto Recovery (Ports 1-4), Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping
 Transmission Method Store-And-Forward
Others:
- Certification: CE, FCC, RoHS
- Operating Temperature: -30–70 ℃ (-22–158 ℉);
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
- TL-SG1005P-PD
- Installation Guide
