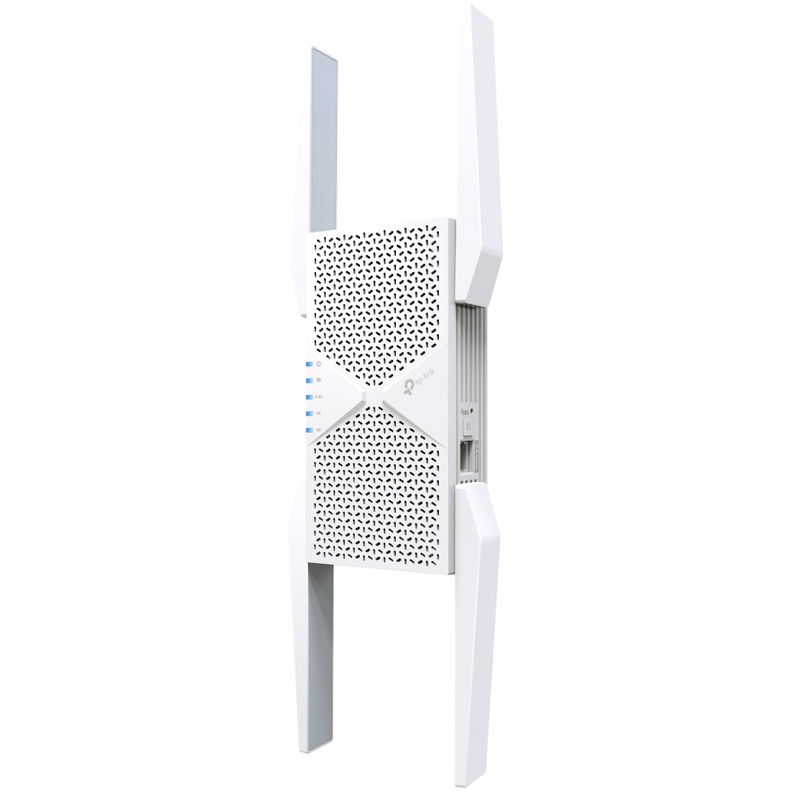

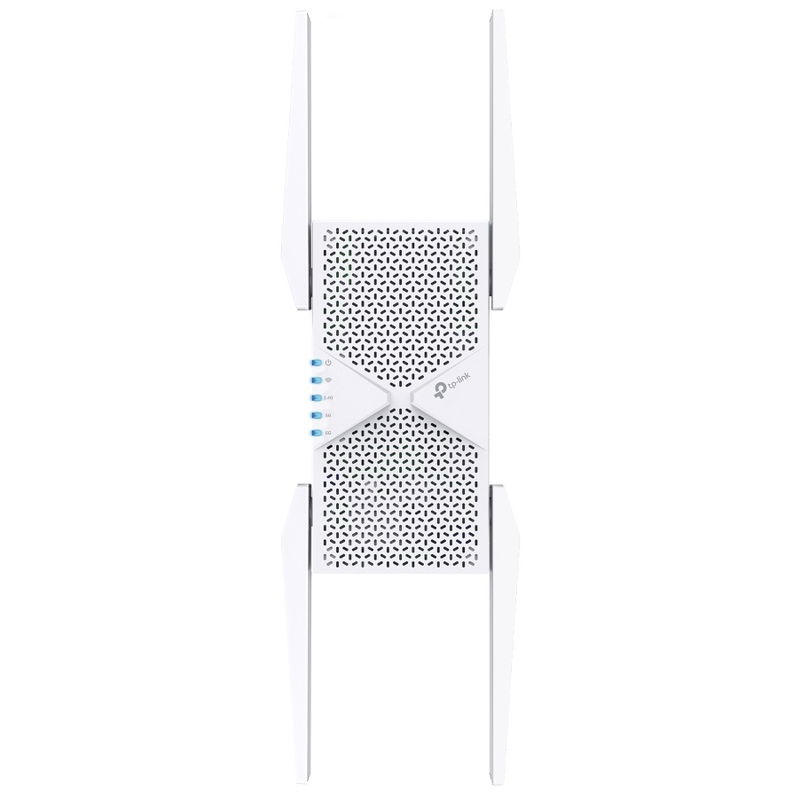

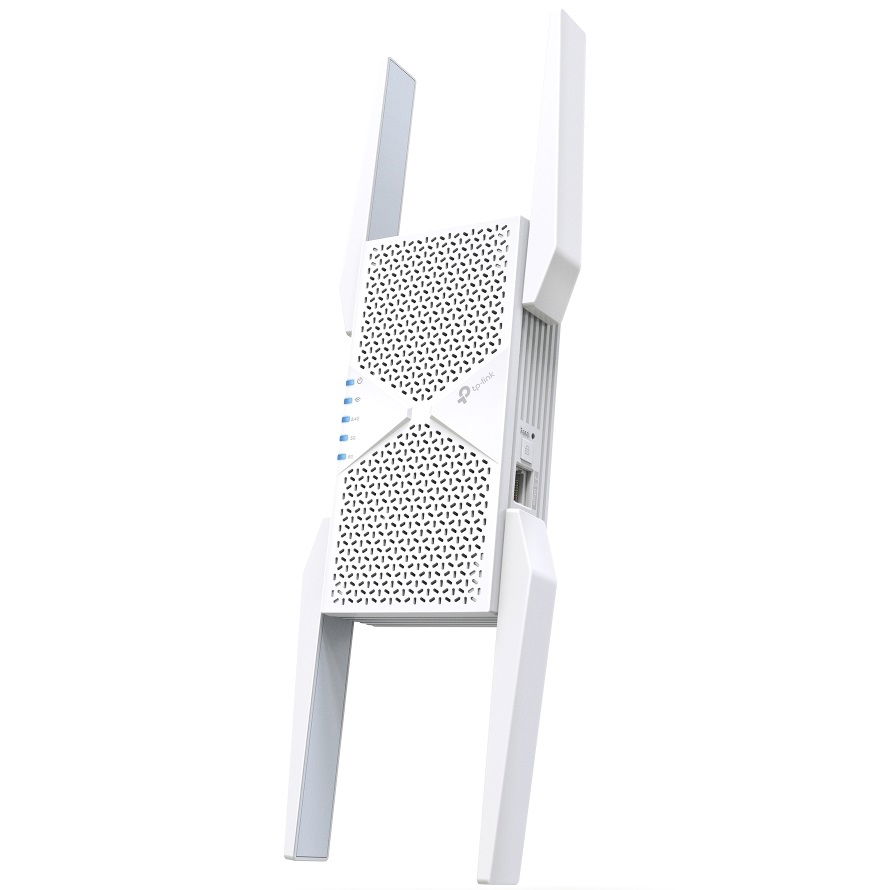

TP-Link RE655BE BE9300 Tri-Band Wi-Fi 7 Range Extender

Harness the power of the latest Wi-Fi standard - Utilize the 6 GHz band, 320 MHz channels, 4K-QAM, MLO and Multi-RU across 6 streams for optimized signal distribution throughout your entire home.

Unrivaled 9.3 Gbps Wi-Fi Speeds:
Tri-band Wi-Fi with dedicated 6 GHz (5764 Mbps), 5 GHz (2882 Mbps), and 2.4 GHz (688 Mbps) bands delivers ultimate speed, reduced congestion, and seamless connectivity for every device.

6 GHz Band:
The newest 6 GHz band offers more channels and a wider spectrum, minimizing interference and congestion from neighboring networks and older devices.

Multi-Link Operation (MLO):
Experience significant gains in data transfer speeds, response times, and network stability for future-proof connectivity.

2.5G Multi-Gigabit Ethernet Port:
Smoother streaming, faster downloads, and lower latency for all your connected devices while effortlessly handling bandwidth demands of today's most demanding applications.

Smart Adaptive Roaming:
Walk from room to room while automatically connecting to the most optimal node - Experience strong signals and continuous connections even as you roam.

Works with EasyMesh:
EasyMesh compatibility offers flexible expansion and unbeatable whole-home coverage by simply connecting the RE655BE to an EasyMesh compatible router or mesh system.

Easy Setup:
Plug in and then easily set up via a press of the WPS button or via the Tether App.

Great Compatibility:
Works with all Wi-Fi generations and devices and all internet providers.

Hardware Features:

• Interface: 1× 2.5 Gbps LAN Port
• Button: WPS Button, Reset Button
• Input Power: 100-240V~50/60Hz 0.5A
• Max. Power Consumption: 23.5W
• Dimensions (W x D x H): 107.2 × 39 × 161 mm
• Antenna: 4 External Antennas

Wireless Features:

• Wireless Standards: Wi-Fi 7 - IEEE 802.11be/ax 6 GHz, IEEE 802.11be/ax/ac/n/a 5 GHz, IEEE 802.11be/ax/n/b/g 2.4 GHz
• Frequency: 6 GHz, 5 GHz, 2.4 GHz
• Signal Rate: 5764 Mbps at 6 GHz, 2880 Mbps at 5 GHz, 688 Mbps at 2.4 GHz
• Working Modes: Range Extender/Access Point
• Reception Sensitivity - 6GH: 11be HE20 MCS0：-95dBm, 11be HE20 MCS13：-60dBm; 11be HE40 MCS0：-92dBm, 11be HE40 MCS13：-57dBm; 11be HE80 MCS0：-88dBm, 11be HE80 MCS13：-53dBm; 11be HE160 MCS0：-85dBm, 11be HE160 MCS13：-50dBm; 11be HE320 MCS0：-81dBm, 11be HE160 MCS13：-46dBm
• Reception Sensitivity - 5GHz: 11be HE20 MCS0：-93dBm, 11be HE20 MCS13：-58dBm; 11be HE40 MCS0：-89dBm, 11be HE40 MCS13：-54dBm; 11be HE80 MCS0：-87dBm, 11be HE80 MCS13：-51dBm; 11be HE160 MCS0：-85dBm, 11be HE160 MCS13：-49dBm
• Reception Sensitivity - 2.4GHz: 11be HE20 MCS0：-97dBm, 11be HE20 MCS11：-64dBm; 11be HE40 MCS0：-95dBm, 11be HE40 MCS11：-62dBm
• Wireless Security: WPA/WPA2-PSK encryptions, WPA3
• Advanced Features: Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs
• Transmission Power: 2.4GHz < 30dBm; 5GHz < 23dBm (Band1 - Band2), < 30dBm (Band 3 - Band 4); 6GHz < 23dBm
• Mesh Technology: EasyMesh-Compatible
• Wireless Function: LED Control, Access Control, Power Schedule, Wi-Fi Coverage

Others:

• Certification: CE, RCM, RoHS
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

• Wi-Fi 7 Range Extender RE655BE
• Quick Installation Guide
