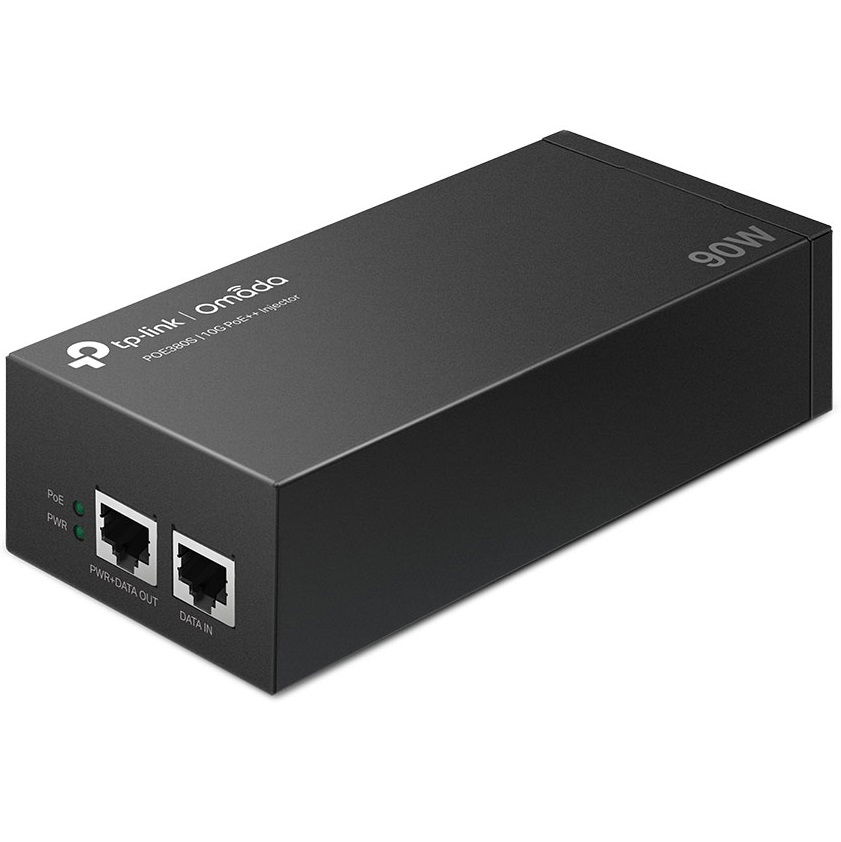

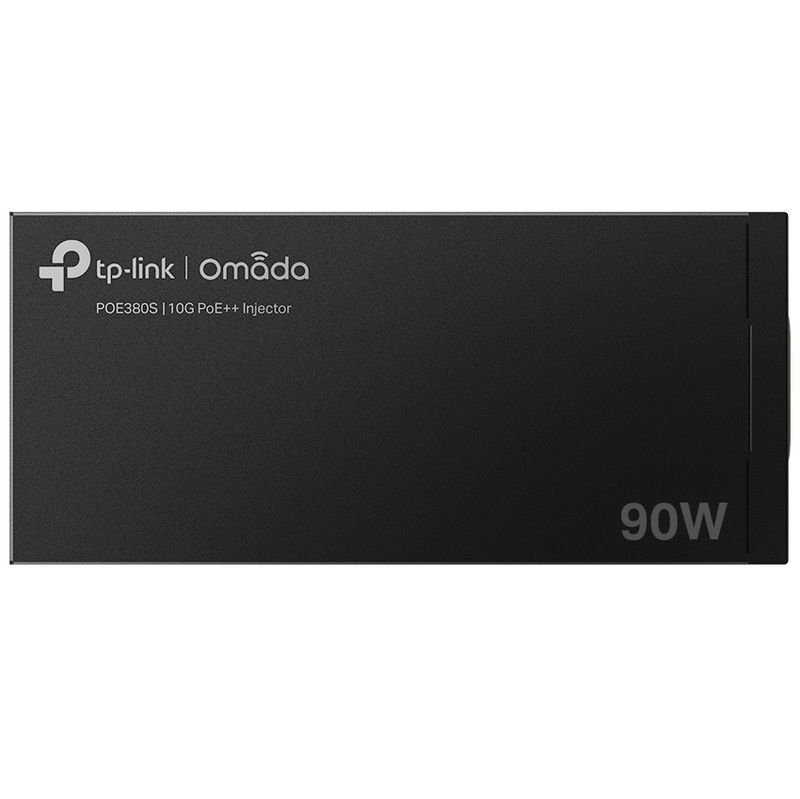

TP-Link POE380S Omada 10G PoE++ Injector

TP-Link POE380S Omada 10G PoE++ Injector

• 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
• Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, no configuration required
• Integrated power supply
• Durable metal casing

**Hardware Feature:</b

• Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
• Interface: 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port, 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W), 1× AC socket
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)
• Max. Power Consumption: Input: 100-240 V, 50/60 Hz, 1.6A; Output: Auto-determine the necessary power requirements (max. 90 W)
• Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation, Plug-and-Play
• LED: Power / PoE
• Dimensions (W x D x H): 155 x 70 x 42 mm

Others:

• Certification: FCC, CE, RoHS
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing

• POE380S
• Power Cord
• Installation Guide
