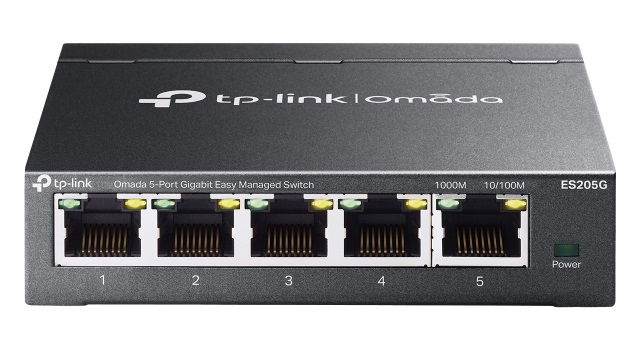

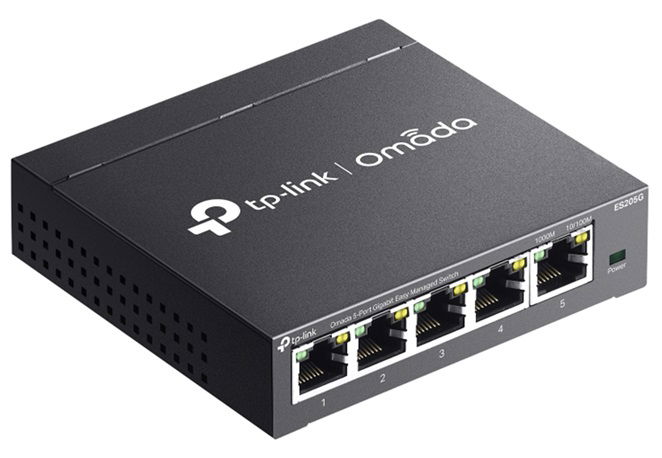

TP-Link Omada ES205G 5-Port Gigabit SDN Managed Switch

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design. Omada 5-Port Gigabit Easy Managed Switch.

• 5x 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Performance:

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 8 K
• Packet Buffer Memory: 4 Mbits
• Jumbo Frame: 15 KB

Quality of Service:

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mod: WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port-Based Rating Limit
• Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control

L2 Features:

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control: 802.3x Flow Control
• Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
• Port Statistics: Port Mirror Status, Traffic Statistics
• 802.1ab LLDP

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave

VLAN:

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID

Management Features:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
• Other Features: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration

Environment:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Hardware:

• Interface: 5x 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Installation: Desktop, Wall Mount
• Physical Security Lock: Yes

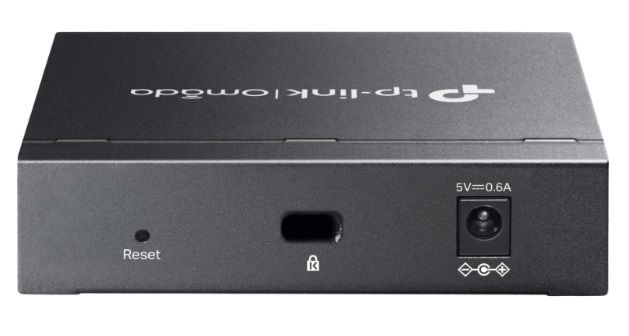

• Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
• Surge Protection: ±6kV
• Dimensions (WxDxH): 100 × 98 × 25 mm
