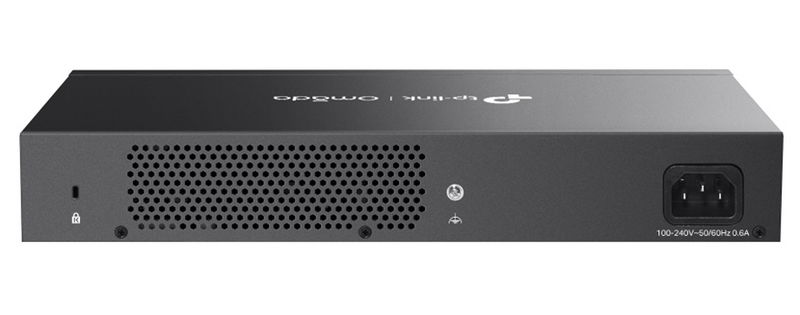

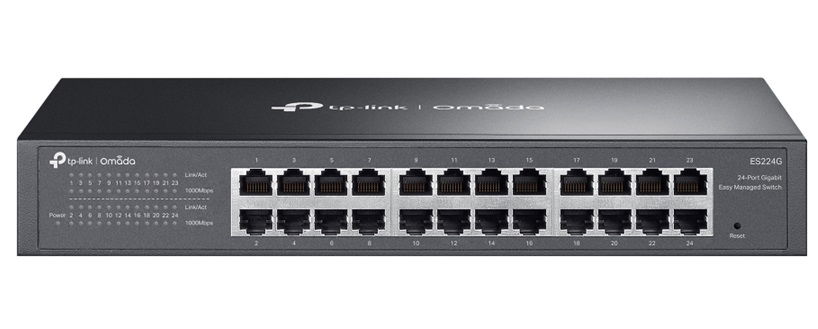

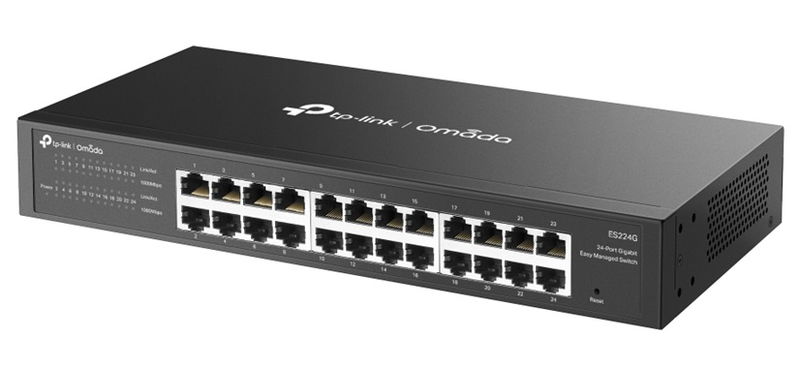

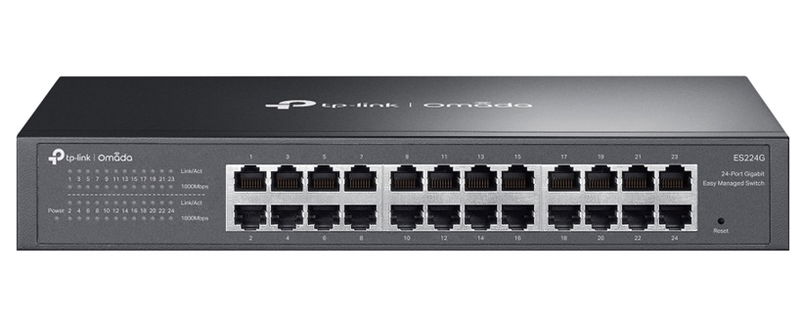

TP-Link Omada 24-Port Gigabit Easy Managed Switch

Omada 24-Port Gigabit Easy Managed Switch

• 24× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design

Hardware:

• Interface: 24× 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Installation: Desktop, Rackmountable
• Physical Security Lock: Yes
• Power Supply: 100-240 V~50/60 Hz
• Dimensions ( W x D x H ): 294× 140 × 44 mm
• Surge Protection: ±6kV

Performance:

• Switching Capacity: 48 Gbps
• Packet Forwarding Rate: 35.7 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB

Quality of Service:

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode: WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port-Based Rating Limit
• Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control

L2 Features:

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control: 802.3x Flow Control
• Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
• Port Statistics: Port Mirror Status, Traffic Statistics
• 802.1ab LLDP

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave

VLAN:

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID

Management Features:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
• Management: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration

Others:

• Certification: FCC, CE, RoHS
• Operating Temperature: -5℃~50℃ (23℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
