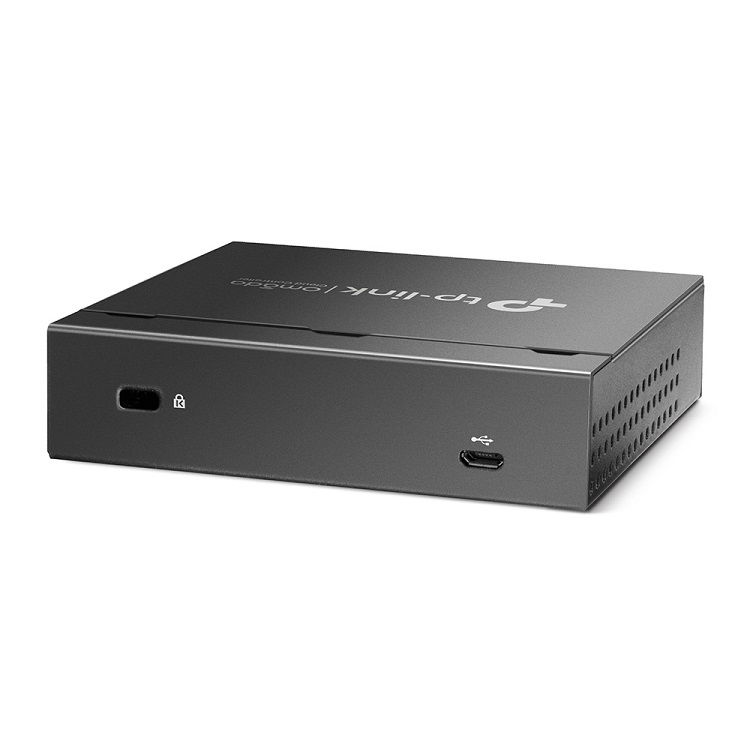

TP-Link OC200 Omada Cloud Controller

The OC200 Omada Cloud Controller dedicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

• Omada Wi-Fi network controller
• Accessible through direct access, cloud portal or mobile app
• Pre-installed Omada controller software. Power it on and start to play.
• No license fee, no monthly fee, manage from anywhere, anytime
• Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
• Powerful CPU and USB auto backup for robustness and stability
• Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)

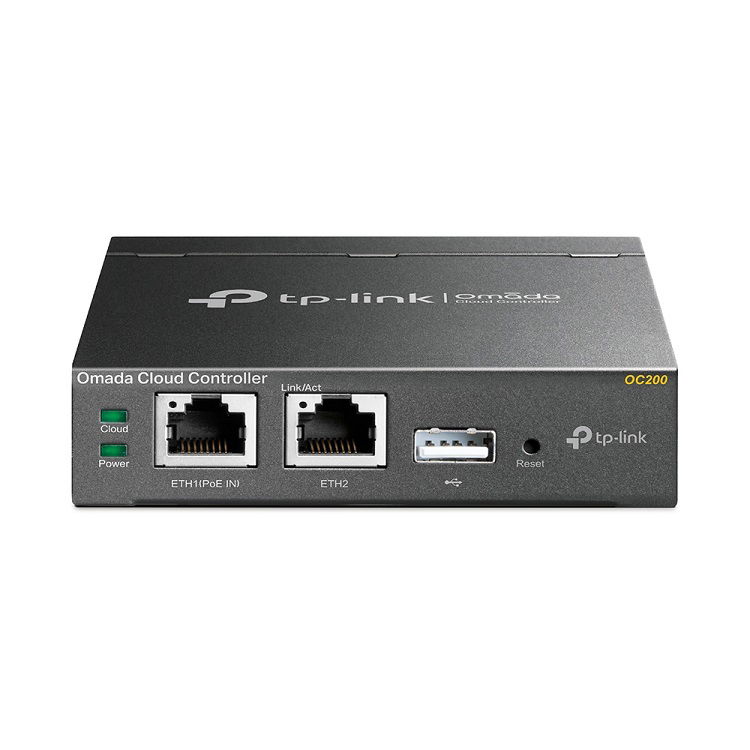

Interfaces:

• 2 x 10/100Mbps Ethernet Port
• 1 x USB 2.0 Port for configuration backup
• 1 x Micro USB Port for power

Wireless Function:

• L3 Management
• Multi-SSID
• Load Balance
• Band Steering
• Airtime Fairness
• Beamforming
• Rate Limit
• Wireless Schedule
• QoS

**Wireless Security: **

• WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption
• Access Control
• SSID to VLAN Mapping
• Guest Network

Management Features:

• Management Scale: 100 EAPs
• AP Management: Support Omada EAP Series, Cloud Access, Omada App Support, Reboot& Wireless Schedule, Auto Backup & Restore, Batch Firmware Upgrade
• Authentication: Captive Portal

Environment:

• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Power:

• Power Supply: 802.3af/at PoE or Micro USB?DC 5V/Minimum 1A?
• Power Consumption: 5 W

Physical Specifications:

• Dimensions: 100 x 98 x 25 mm

• Microsoft Windows 10, 8, 7,Vista, XP
• MAC OS
• NetWare
• UNIX
• Linux

• Omada Cloud Controller OC200
• Quick Installation Guide
• Ethernet Cable
