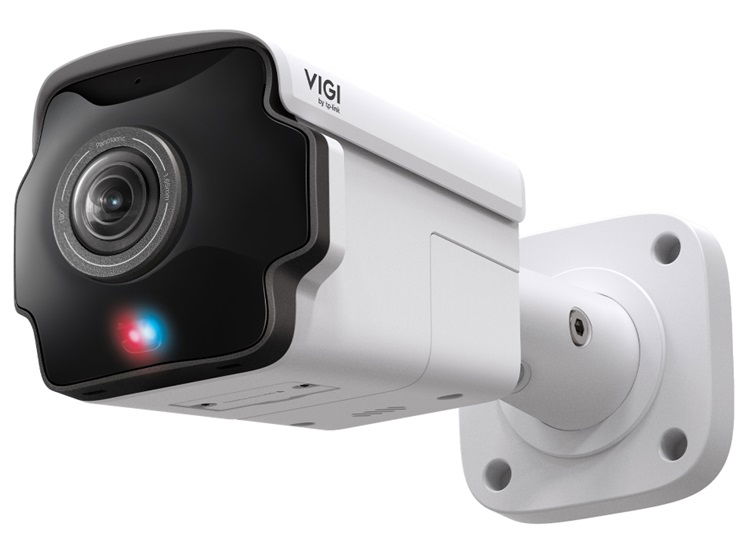

TP-Link InSight S385PI VIGI 4K 8MP IR Outdoor Panoramic Bullet Network Camera

One Shot, Huge Vision. 8MP Outdoor IR Panoramic Bullet Network Camera.

Cut Project Costs with 180° View and 4K (8MP) Clarity:
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

Powerful, Efficient Monitoring with Active Defense:
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Red-Blue Warning Lights with Stronger Deterrence:
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration:
The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications:
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

Efficient H.265+ Compression Technology:
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR Light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Fixed Focal Lens
• Focal Length: 1.65 mm
• Aperture: F2.0
• Horizontal FOV: 180°
• Vertical FOV: 86°
• Diagonal FOV: 180°
• Lens Mount: M12
• DORI Distance: Detect: 144.36 ft (44 m), Observe: 60.15 ft (18.33 m), Recognize: 28.87 ft (8.8 m), Identify: 14.44 ft (4.4 m)

Angle Adjustment (Manual):

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

Illuminator:

• IR LED Quantity: 4
• IR LED Range: 65.62 ft (20 m)
• IR LED Wavelength: 850nm
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 3840 X 2160
• Main Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
• Sub-Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression Main Stream: H.265+/H.265/H.264+/H.264
• Video Compression Sub-Stream: H.265/H.264
• H.264 Type: High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate Main Stream: 256 Kbps to 8 Mbps
• Video Bit Rate Sub-Stream: 64 Kbps to 1024 Kbps

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 4 Regions
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Built-in Microphone, Audio In Interface
• Audio Output: Built-in Speaker, Audio Out Interface
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps(G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
• ONVIF: Yes
• API: Open Network Video Interface (Profile S/T/G)
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
• Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception ( Illegal Login), Alarm Input Device
• Alarm Linkage: Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm

Deep Learning Function:

• People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: 1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: Yes
• Audio: 1 Audio In, 1 Audio Out

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Metal
• Power Supply: 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug, PoE: 802.3at, Class 4, Max. 21W
• Protection: IP67 Weatherproof, IK10 Vandal Proof
• Dimensions (LxWxH): 266 × 100 × 101 mm
• Net Weight: 1.01Kg
