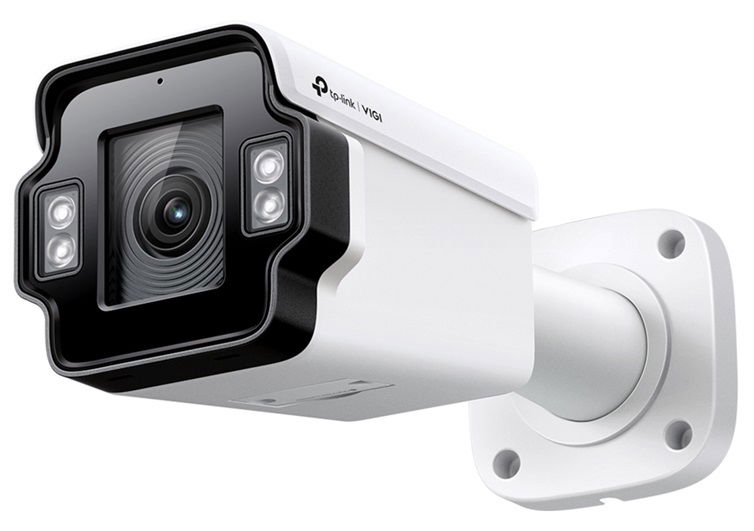

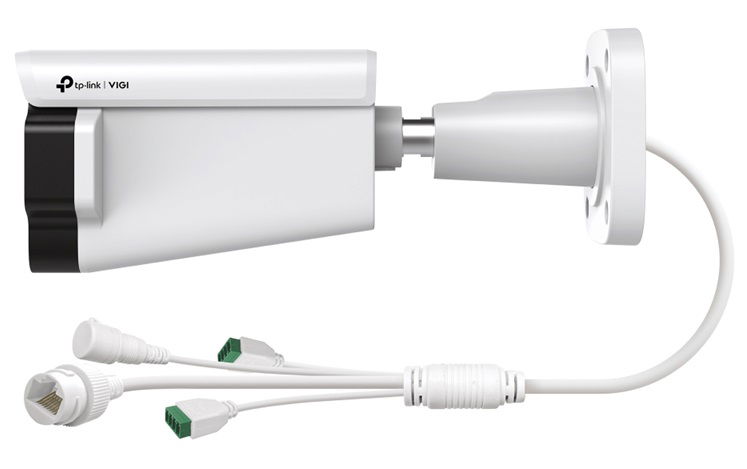

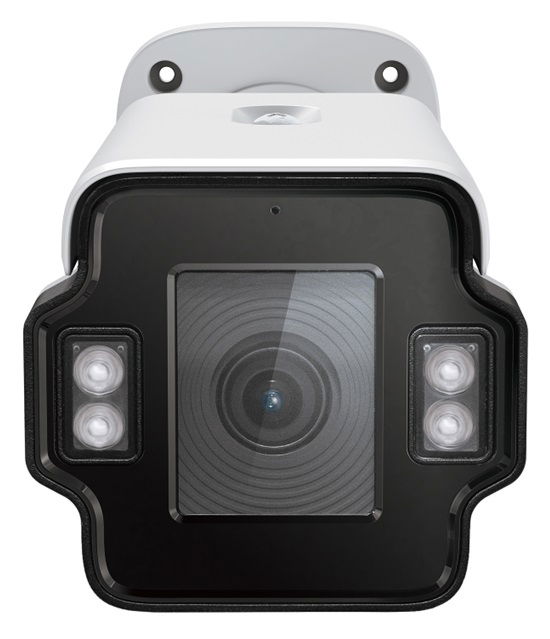

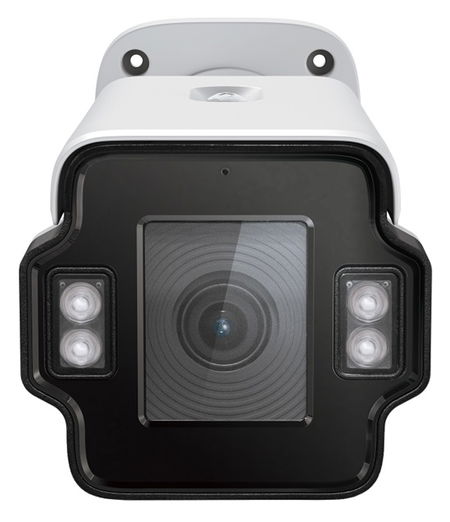

TP-Link InSight S345ZI VIGI 4MP Outdoor IR Motorised Varifocal Bullet Network Camera

See Every Detail Up Close. 4MP Outdoor IR Motorized Varifocal Bullet Network Camera.

Motorized Varifocal:
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification:
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR:
By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR:
Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

Efficient H.265+ Compression Technology:
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Camera:

• Image Sensor: 1/2.9” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Motorized Varifocal Lens
• Focal Length: 2.7-13.5 mm (5X Optical Zoom)
• Aperture: F1.6
• Horizontal FOV: 29.6°-102.0°
• Vertical FOV: 16.8°-53.8°
• Diagonal FOV: 34.1°-122.8°
• Lens Mount: Φ14
• DORI Distance: Detect: Detect: 66-207 m (217-579 ft), Observe: 28-86 m (92-282 ft), Recognize: 13-41 m (43-135 ft), Identify: 7-21 m (23-69 ft)

Angle Adjustment (Manual):

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

Illuminator:

• IR LED Quantity: 4
• IR LED Range: 60m (197ft)
• IR LED Wavelength: 850nm
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2688 x 1520
• Main Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
• Sub-Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression Main Stream: H.265+/H.265/H.264+/H.264
• Video Compression Sub-Stream: H.265/H.264
• H.264 Type: High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
• Video Bit Rate Sub-Stream: 512 Kbps to 1024 Kbps

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps(G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF: Yes
• API: Open Network Video Interface (Profile S/T/G)
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detectio, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
• Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, Email Alarm, Upload Capture to FTP, Alarm Out Device

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: 1 Alarm In, 1 Alarm Out
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: N/A
• Audio: 1 Audio In, 1 Audio Out

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Metal
• Power Supply: 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max.12 W
• Protection: IP67 Weatherproof, IK10 Vandal Proof
• Dimensions (LxWxH): 256 × 100 × 101 mm
• Net Weight: 1.04 Kg
