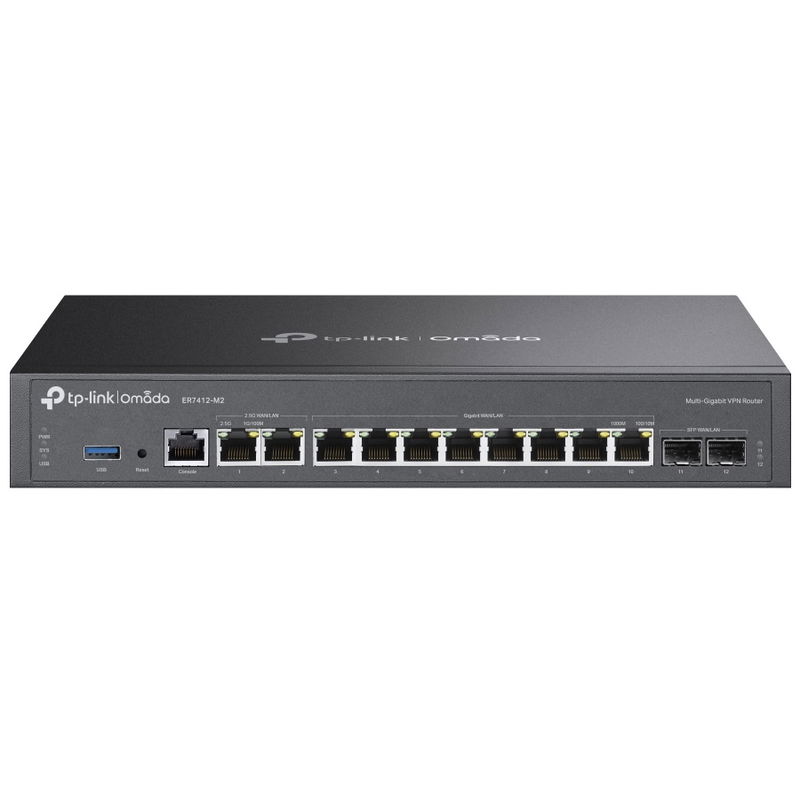

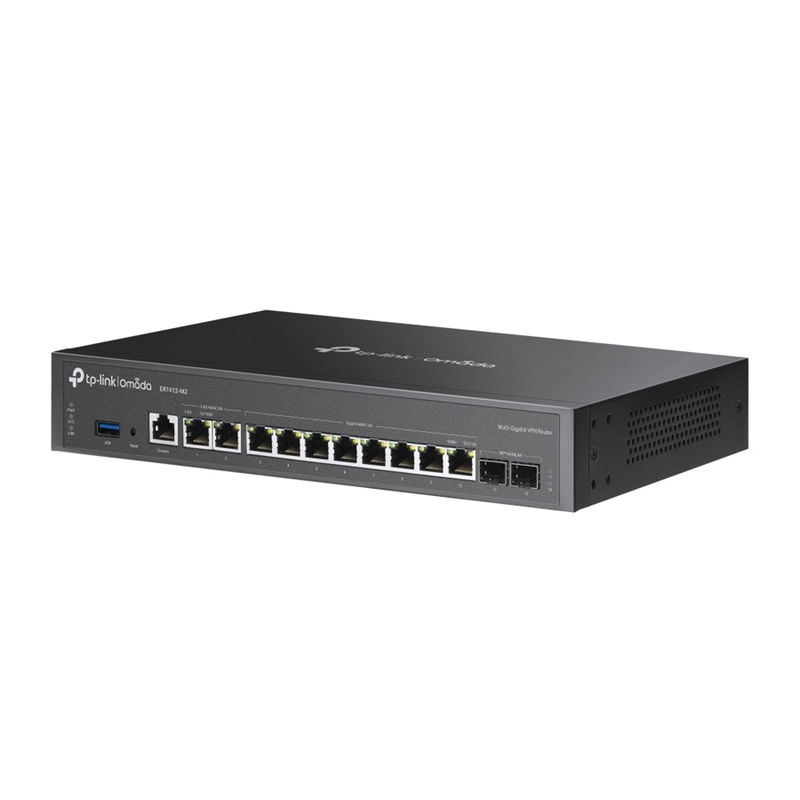

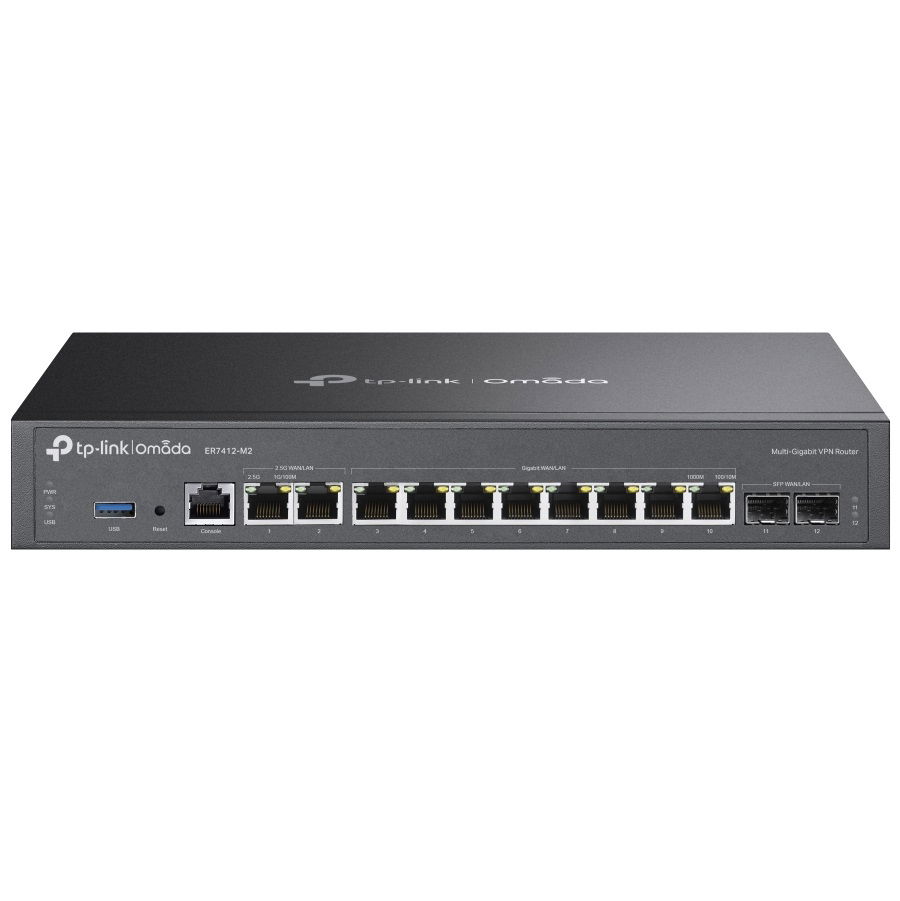

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

Engineered for dense environments, powered by dual 2.5 Gbps ports and quad-core 2.0 GHz CPU.

• Quad-core @2.0GHz CPU
• 2× 2.5G RJ45 WAN/LAN ports
• 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app
• DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

Security:

• Access Control: Source/Destination IP-Based ACL, Stateful ACL, IPv4/IPv6 ACL, Location Based ACL
• Filtering: WEB Group Filtering, URL Filtering, Web Security
• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

Hardware Features:

• Standards and Protocols: IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q; TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
• Interface: 1× 2.5G RJ45 WAN/LAN Port, 1× 2.5G RJ45 WAN/LAN Port, 2× Gigabit SFP WAN/LAN Ports, 8× Gigabit RJ45 WAN/LAN Ports: 1× RJ45 Console Port, 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m); 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
• Button: Reset Button

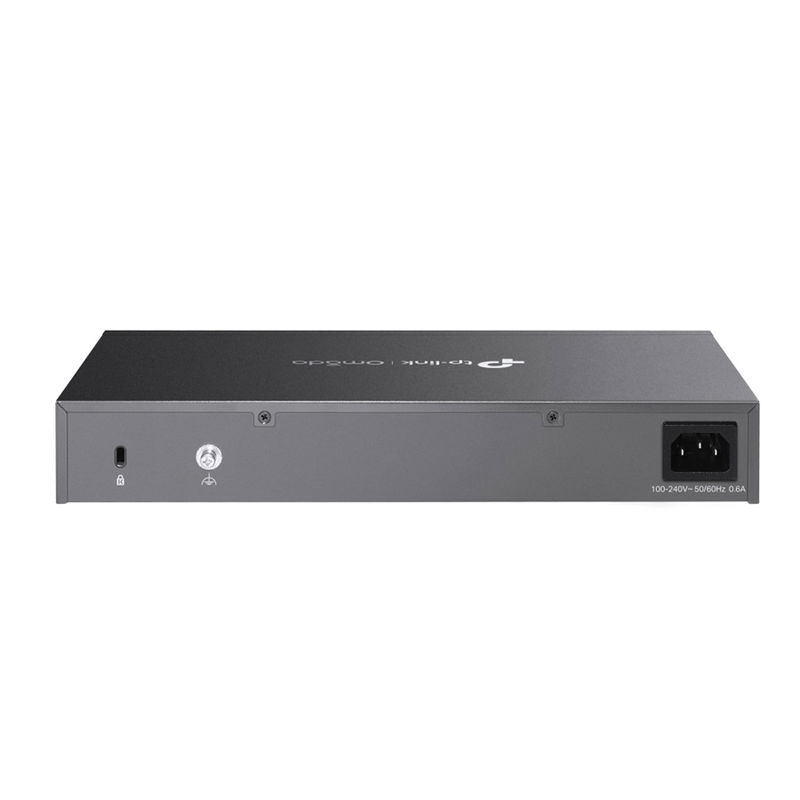

• Power Supply: 100–240 VAC, 50/60 Hz
• Flash: 128MB NAND
• DRAM: 1 GB DDR4
• Dimensions (W x D x H): 294×180×44 mm
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting: Desktop, Rackmountable
• Max. Power Consumption: 18.5W (With USB 3.0 connected)

Performance:

• IPS Throughput: 523Mbps
• DPI Throughput: 2.2Gbps
• GRE: Unencrypted: 1153.0 Mbps; Encrypted: 559.2 Mbps
• WireGuard VPN: 771.6 Mbps
• Concurrent Session: 1,000,000
• New Sessions /Second: 7,000
• NAT (Static IP): 2345.71 Mbps / 2351.22 Mbps
• NAT(DHCP): 2353.41 Mbps / 2353.40 Mbps
• NAT(PPPoE): 2336.52 Mbps / 2336.08 Mbps
• NAT (L2TP): 1937.53 Mbps / 1761.82 Mbps
• NAT (PPTP): 1757.54 Mbps / 2011.33 Mbps
• IPsec VPN Throughput: ESP-SHA1-AES256: 1125.60 Mbps; ESP-SHA256-AES256: 1133.1 Mbps; ESP-SHA384-AES256: 1126.6 Mbps; ESP-SHA512-AES256: 1132.8 Mbps
• OpenVPN: UDP: 266.2 Mbps
• L2TP VPN Throughput: Unencrypted: 2724.5 Mbps; Encrypted: 1018.4Mbps
• PPTP VPN Throughput: Unencrypted: 3035 Mbps; Encrypted: 534.6 Mbps
• SSL VPN Throughput: 263.1 Mbps
• 66 Byte Packet Forwarding Rate: 1833 Mbps / 1835 Mbps
• 1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps

Basic Functions:

• WAN Connection Type: Static IP/Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP, Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone: Modify WAN/LAN MAC Address
• DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features:

• Advanced Routing: Static Routing, Policy Routing, RIP (available in Standalone Mode), OSPF (available in Standalone Mode)
• Bandwidth Control: IP/Port-based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
• NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Session Limit: IP-based Session Limit

VPN:

• GRE: Only in Standalone Mode
• SSL VPN: 80 Tunnels
• IPsec VPN: 150 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
• PPTP VPN: PPTP VPN Server, PPTP VPN Client (15), 150 Tunnels, PPTP with MPPE Encryption
• L2TP VPN: L2TP VPN Server, L2TP VPN Client (15), 150 Tunnels, L2TP over IPSec
• OpenVPN: OpenVPN Server, OpenVPN Client (11), 121 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode
• WireGuard VPN: 20 Tunnels

Authentication:

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User/Voucher/SMS/Radius), External Radius Server, External Portal Server, LDAP

Management Features:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (only in Standalone Mode), Syslog Support
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule

Others:

• Certification: CE, FCC
• Operating Temperature: 0–45 ℃ (32–113 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

• ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord
