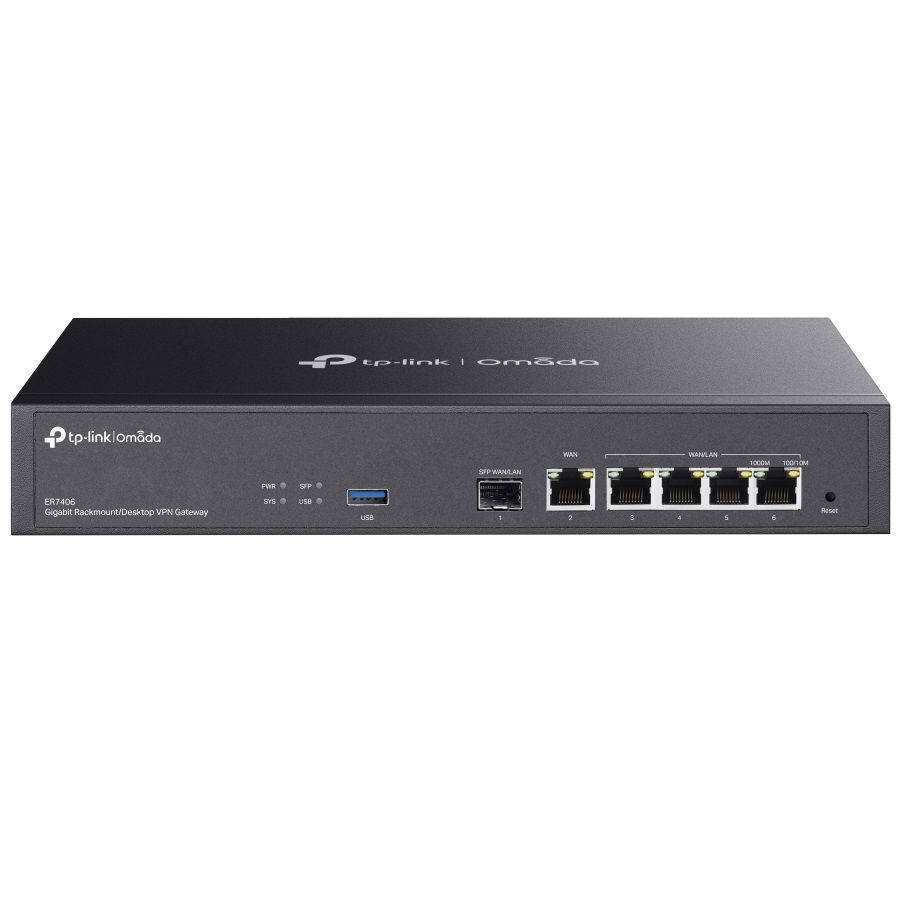

TP-Link ER7406 Omada Gigabit Rackmount Desktop VPN Gateway

TP-Link ER7406 Omada Gigabit Rackmount Desktop VPN Gateway

• 1× Gigabit SFP WAN/LAN port
• 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
• 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 5 WAN ports raises the utilisation rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralised cloud management via the web or the Omada app*
• DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
• Rackmount/Desktop

Security:

• Access Control: Source/Destination IP Based Access Control
• Filtering: WEB Group Filtering, URL Filtering, Web Security
• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

Hardware Features:

• Standards and Protocols: IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
• Interface: 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports, 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m), 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Fan Quantity: Fanless
• Button: Reset Button
• Power Supply: 100-240VAC, 50/60Hz
• Flash: 128 MB NAND
• DRAM: 512 MB DDR4
• LED: PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
• Dimensions (W x D x H): 294 × 140 × 44 mm
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting: Desktop, Rackmountable
• Max. Power Consumption: 7.5 W (with USB 3.0 connected), 4.5 W (without USB 3.0 connected)

Performance:

• IPS Throughput: TCP: 229 Mbps; UDP: 188 Mbps
• DPI Throughput: TCP: 933 Mbps; UDP: 927 Mbps
• GRE: Unencrypted: 611.9 Mbps; Encrypted: 325.0 Mbps
• WireGuard VPN: 341.3 Mbps
• Concurrent Session: 150,000
• New Sessions /Second: 5,300
• NAT (Static IP): 945.3 Mbps / 940.5 Mbps
• NAT(DHCP): 939.6 Mbps / 940.9 Mbps
• NAT(PPPoE): 943.6 Mbps / 940.9 Mbps
• NAT (L2TP): 880.1 Mbps / 859.0 Mbps
• NAT (PPTP): 855.0 Mbps / 907.2 Mbps
• IPsec VPN Throughput: ESP-SHA1-AES256: 617.1 Mbps, ESP-SHA256-AES256: 592.8 Mbps, ESP-SHA384-AES256: 592.4 Mbps, ESP-SHA512-AES256: 604.5 Mbps
• OpenVPN: 139.1 Mbps
• L2TP VPN Throughput: Unencrypted: 977.4 Mbps, Encrypted: 334.6 Mbps
• PPTP VPN Throughput: Unencrypted: 1064.1 Mbps, Encrypted: 206.8 Mbps
• SSL VPN Throughput: 131.6 Mbps
• 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
• 1,518 Byte Packet forwarding rate: 81,279 pps / 81,275 pps

Basic Functions:

• WAN Connection Type: Static IP, Dynamic IP, PPPoE(supports MRU Configuration), PPTP, L2TP
• MAC Clone: Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
• DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
• IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features:

• Advanced Routing: Static Routing, Policy Routing, RIP (available in Standalone Mode), OSPF (available in Standalone Mode)
• Bandwidth Control: IP-based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
• NAT: One-to-One NAT, Multi-Net NAT, Port Forwarding, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  Session Limit IP-based Session Limit

VPN:

• GRE: Yes (Only in Standalone Mode)
• SSL VPN: 50 Tunnels
• IPsec VPN: 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
• PPTP VPN: PPTP VPN Server, PPTP VPN Client (10), 50 Tunnels, PPTP with MPPE Encryption
• L2TP VPN: L2TP VPN Server, L2TP VPN Client (10), 50 Tunnels, L2TP over IPSec
• OpenVPN: OpenVPN Server, OpenVPN Client (5), 55 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode
• WireGuard VPN: 20 Tunnels

Authentication:

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User /Voucher/ SMS/Radius), External Radius Server, External Portal Sever, LDAP

Management Features:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute) (only in Standalone Mode), NTP Synchronize (only in Standalone Mode), Port Mirroring, CLI (only in Standalone Mode), Syslog Support
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller.
• Management Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule

Others:

• Certification: CE, FCC, RoHS
• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

• ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit
