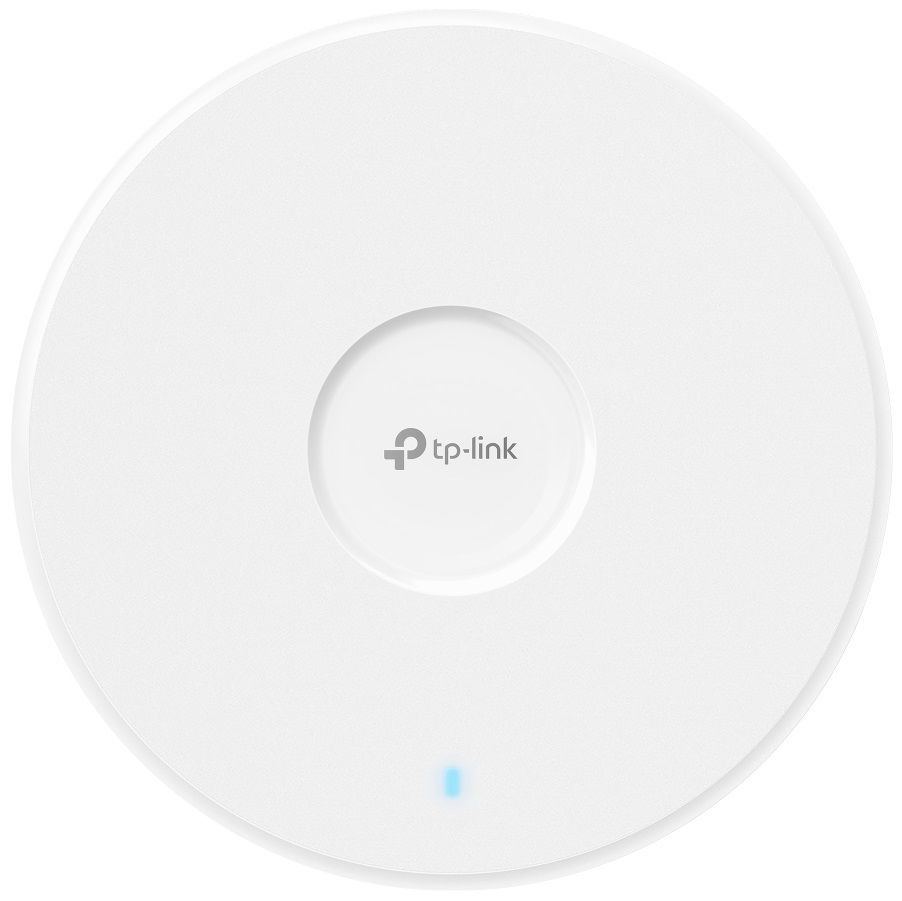

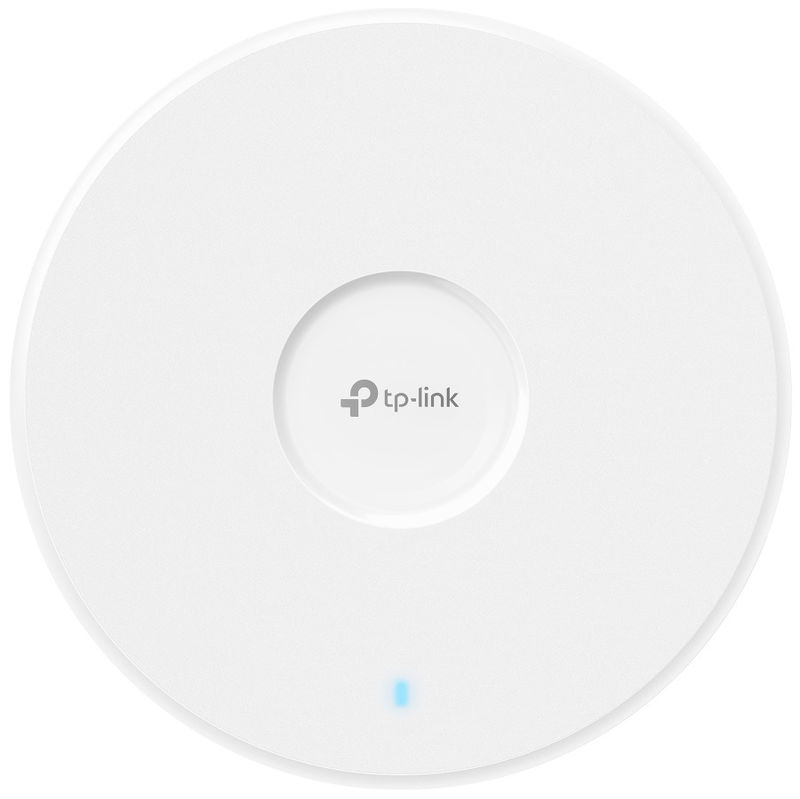

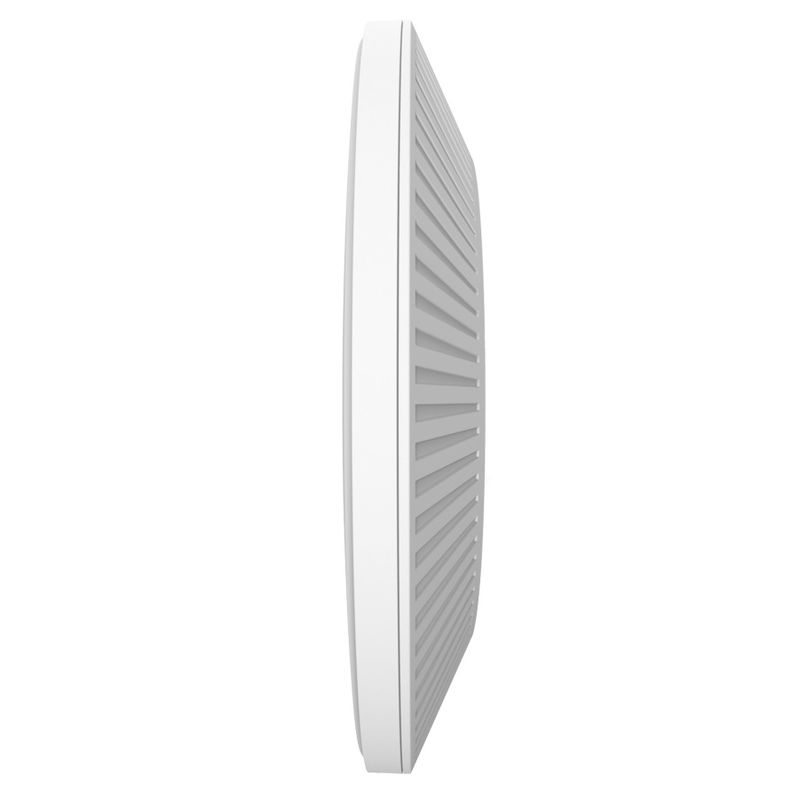

TP-Link EAP783 BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Break through the boundaries of your business with the EAP783 BE19000 ceiling mount tri-band Wi-Fi 7 access point.

• BE19000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz).
• A clear 6 GHz band brings cleaner and wider band resources.
• 2× 10GbE ports unlock the full potential of Wi-Fi 7.
• 320 MHz bandwidth enables many more simultaneous transmissions.
• Multi-Link Operation and Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralised management, mesh, and Seamless roaming.

Hardware Features:

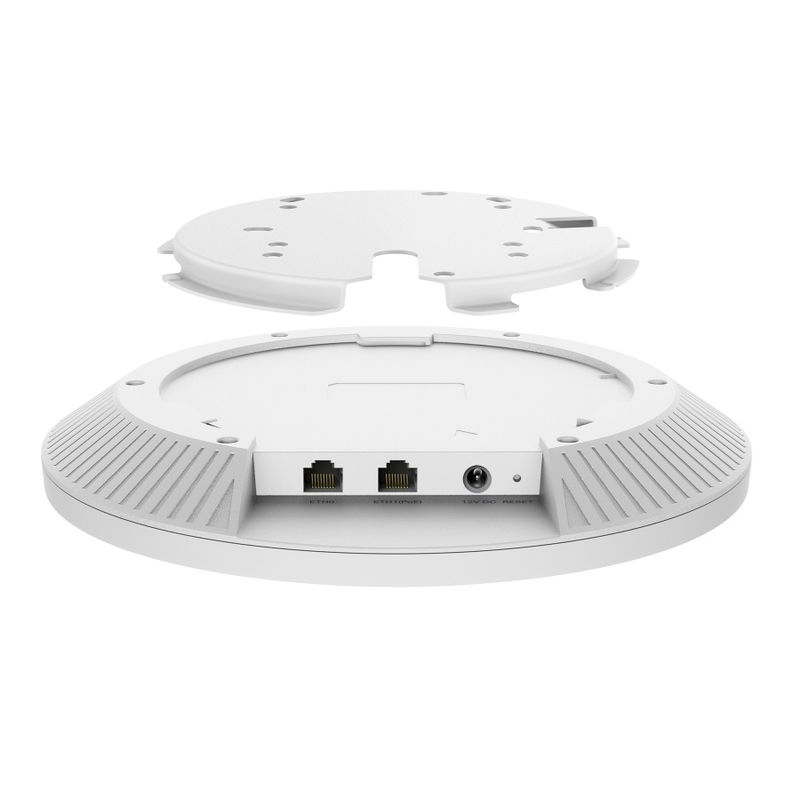

• Interface 2× 10G Ethernet Ports (20G Aggregation Speed†)
• Button Reset
• Power Supply: 802.3bt PoE++, 12V DC. Note: Power adapter is not included.
• Max. Power Consumption: 39W
• Dimensions (W x D x H): 280 x 280 x 46.5 mm
• Antenna - Internal Omni: 2.4 GHz - 4× 4 dBi; 5 GHz: 4× 5.5 dBi; 6 GHz: 4× 5 dBi
• Bluetooth: Yes
• Mounting: Ceiling / Wall Mounting (Kits Included)

Wireless Features:

• Coverage: 200㎡ (2150 ft²)
• Concurrent Clients: 760+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 6 GHz, 5 GHz, and 2.4 GHz
• Signal Rate: 6 GHz - Up to 11520 Mbps; 5 GHz: Up to 5760 Mbps; 2.4 GHz: Up to 1376 Mbps
• Wireless Functions: MLO, 4K-QAM, 4x4 MU-MIMO DL/UL, HE320 (320 MHz Bandwidth), Mesh, AI Roaming, Automatic Channel Selection and Power Adjustment, BSS Coloring, UL/DL OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
• Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication△, Maximum number of MAC Filter: 4,000, Wireless Isolation between Clients, WPA-- Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
• Transmission Power: CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz band 1&band 2, EIRP); < 30 dBm (5 GHz band 3, EIRP); < 23 dBm (6 GHz EIRP)

Management Features:

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

General:

• Weight: Net Weight:1384.6g
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

• EAP783
• Installation Guide
• Ceiling/Wall Mounting Kits
