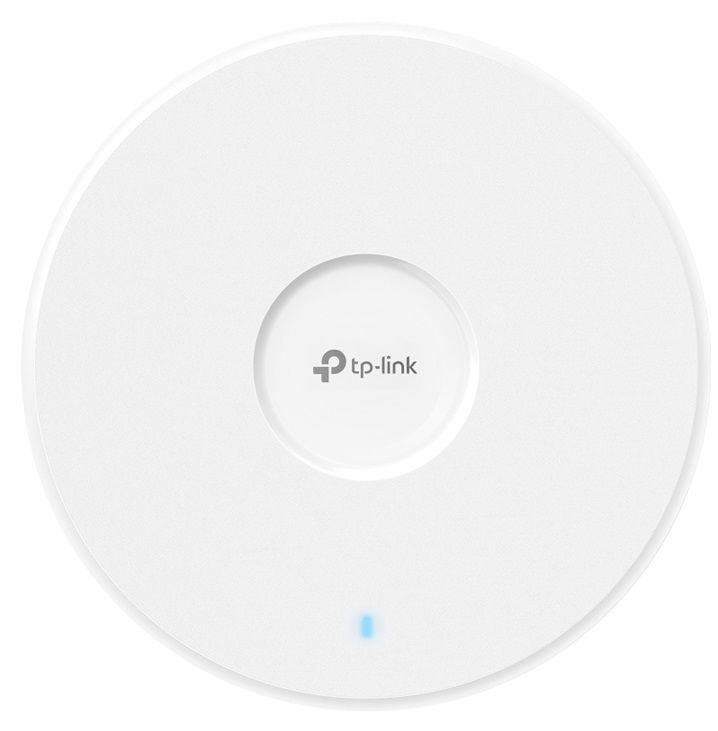

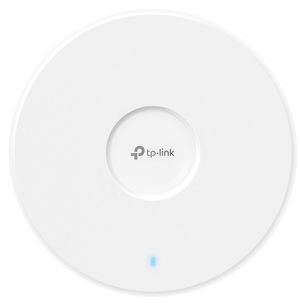

TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point

Ultra-Thin Enterprise Wi-Fi 7 Access Point

• Ultra-Thin Design for Flexible Deployment
• BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
• A clear 6 GHz band brings cleaner and wider band resources.
• 1x 2.5GbE Port unlocks the full potential of Wi-Fi 7.
• 320 MHz bandwidth enables many more simultaneous transmissions.
• Multi-Link Operation and Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralised management, Mesh, and Seamless Roaming.

Hardware:

• Interface: 1x 2.5G Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE or 12V/2.5A DC
• Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi, 6 GHz: 2× 5.0 dBi
• Bluetooth: x1 4.0 dBi, Bluetooth 5.2

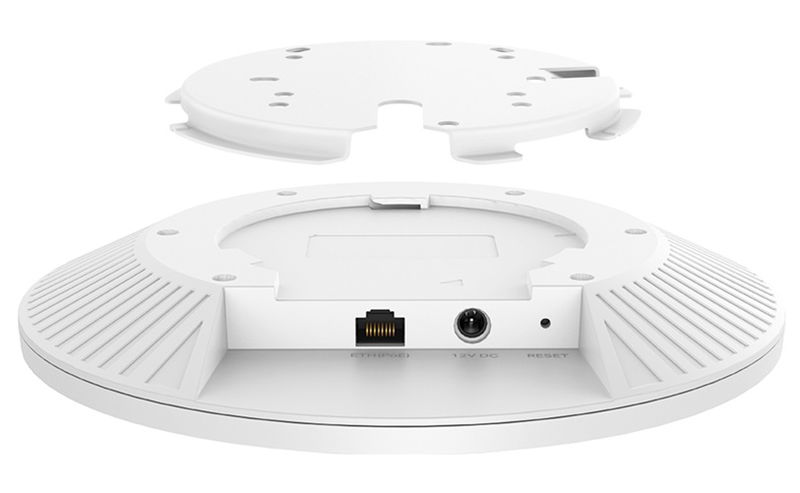

• Mounting: Ceiling /Wall Mounting

Wireless:

• Coverage: 140㎡(1500 ft²)
• Concurrent Clients: 380+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 6 GHz, 5 GHz, and 2.4 GHz
• Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
• Wireless Functions: MLO, 4K-QAM, Seamless Roaming (802.11k/v/r), MU-MIMO, EHT320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs: 24 (8 on each band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power (CE): <20 dBm(2.4 GHz, EIRP, <23 dBm(5 GHz, , band1 & band2, EIRP), <30 dBm(5 GHz, , band3, EIRP)
• Transmission Power (FCC): < 25dBm （2.4GHz), < 25dBm （5GHz), < 23dBm （6GHz）

Management Features:

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• Web-based Management: Yes

Others:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Dimensions (WxDxH): 220 × 220 × 32.5 mm
