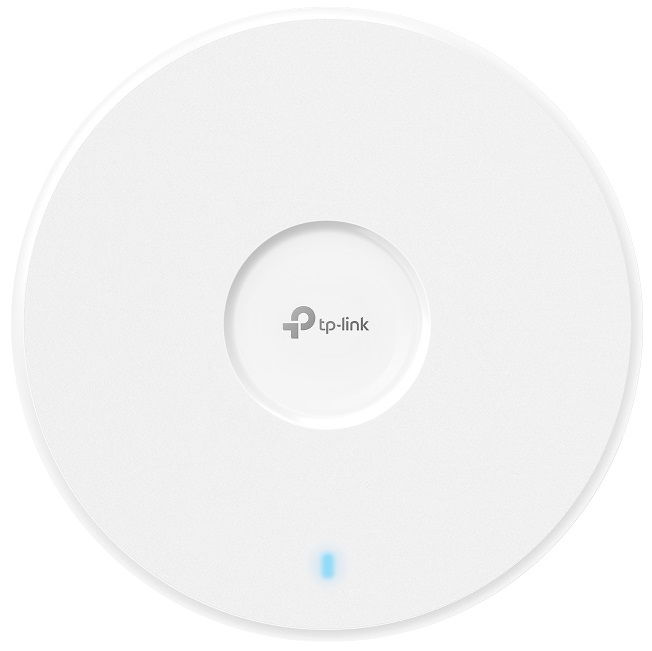

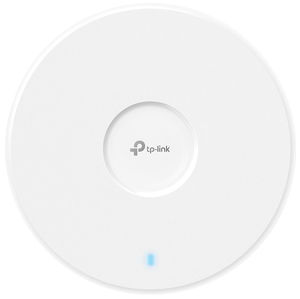

TP-Link EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point

With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
• 1× 2.5G port unlocks the full potential of Wi-Fi 7.
• 160 MHz bandwidth enables many more simultaneous transmissions.
• Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralised management, Mesh, and Seamless Roaming.

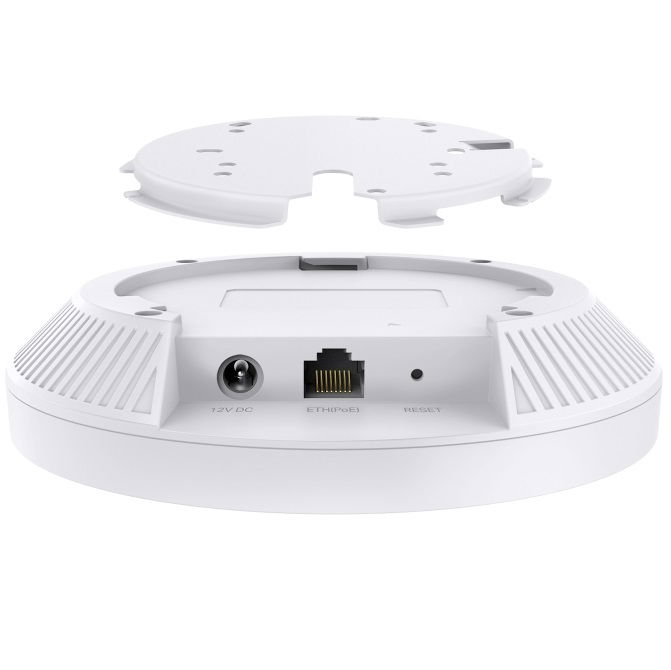

Hardware Features:

• Interface: 1× 2.5G Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
• Max. Power Consumption: 18.6 W (For PoE); 16.0 W (For DC)
• Dimensions (W x D x H): 160 × 160 × 36.7 mm
• Antenna: 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi
• Mounting: Ceiling / Wall Mounting (Kits Included)

Wireless Features:

• Coverage: 140㎡ (1500 ft²)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
• Wireless Functions: 4K-QAM, Seamless Roaming, MU-MIMO, EHT160, Mesh, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:16(8 on each band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz, band 1&band 2, EIRP), < 28 dBm (5 GHz, band 3, EIRP)

Management Features:

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• Web-based Management: Yes

Others:

• Certification: CE, FCC, RoHS, IC
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

• EAP723
• Installation Guide
• Ceiling/Wall Mounting Kit
