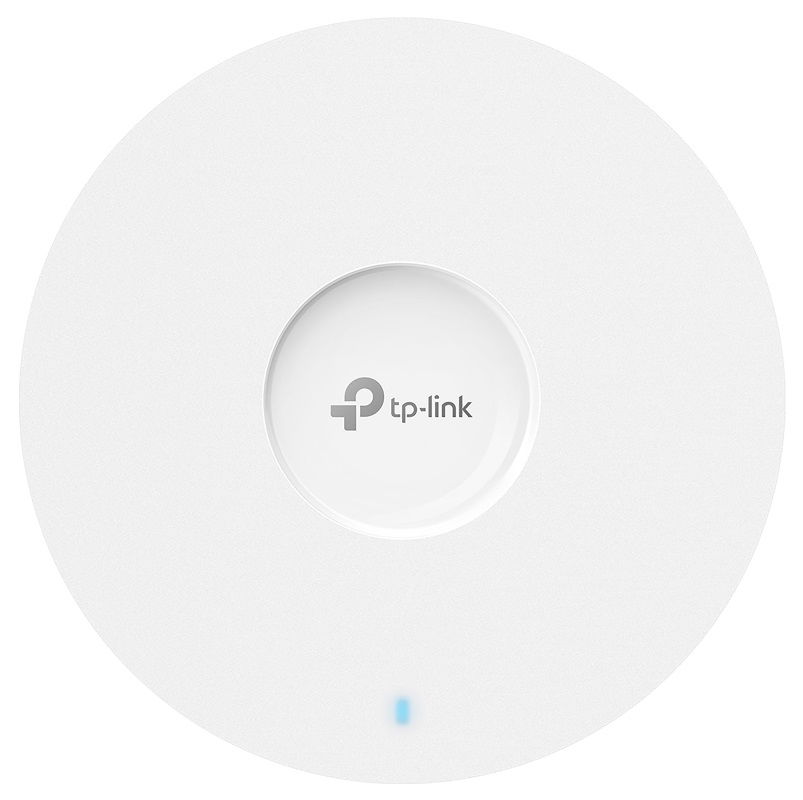

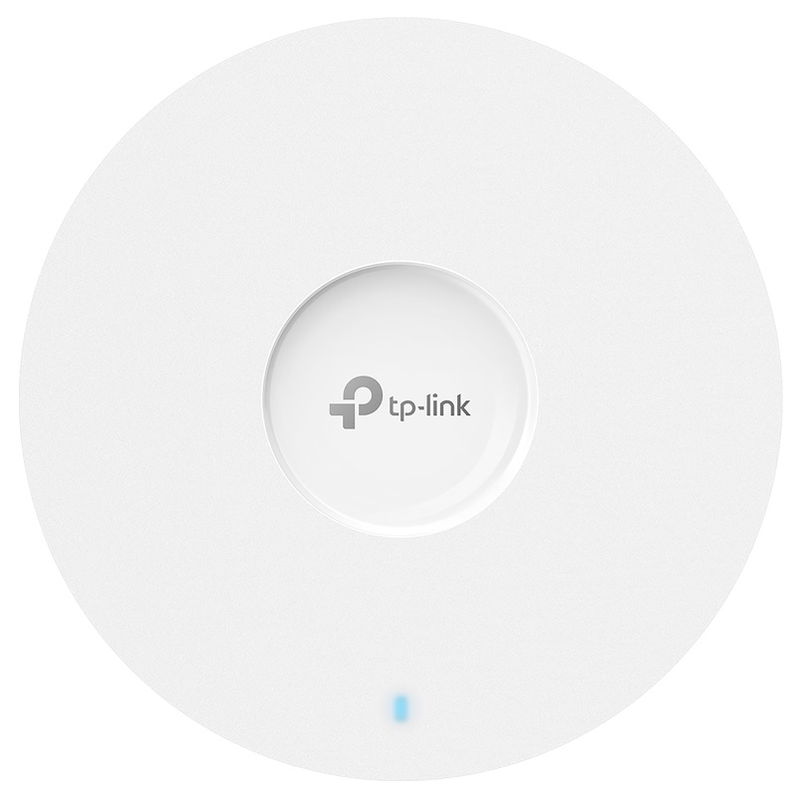

TP-Link EAP673 AX5400 Ceiling Mount WiFi 6 Wireless Access Point

High-End Business WiFi 6 to Power Up Your Business. AX5400 Ceiling Mount Wi-Fi 6 Access Point.

High-End Business Wi-Fi 6 Bring Real Power to Your Business:
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN:
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Pairing, Less Wiring:
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Always Stay Smooth with Fast Roaming:
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Hardware:

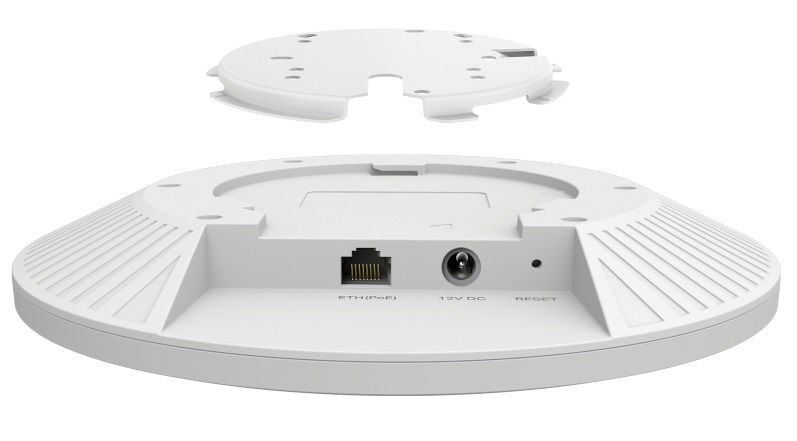

• Interface: 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 12 V / 2 A DC (Power adapter not included)
• Antenna: Internal Omni - 2.4 GHz: 2× 4 dBi, 5 GHz: 4× 5 dBi
• Bluetooth: V5.2

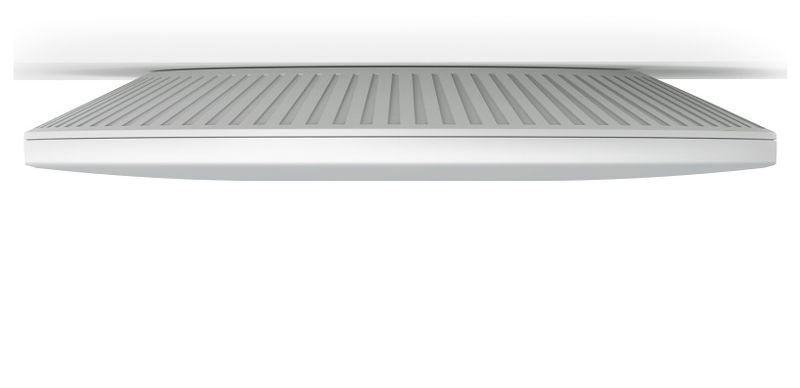

• Mounting: Ceiling /Wall Mounting

Wireless:

• Coverage: 140㎡(1500 ft²)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 4804 Mbps, 2.4 GHz: Up to 574 Mbps ,
• Wireless Functions: 4x Longer OFDM Symbol, OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power (CE): <20 dBm(2.4 GHz, EIRP, <23 dBm(5 GHz, , band1 & band2, EIRP), <30 dBm(5 GHz, , band3, EIRP)
• Transmission Power (FCC): <25 dBm (2.4 GHz), <28 dBm (5 GHz)

Management Features:

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.

Others:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Dimensions (WxDxH): 220 × 220 × 32.5 mm

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
