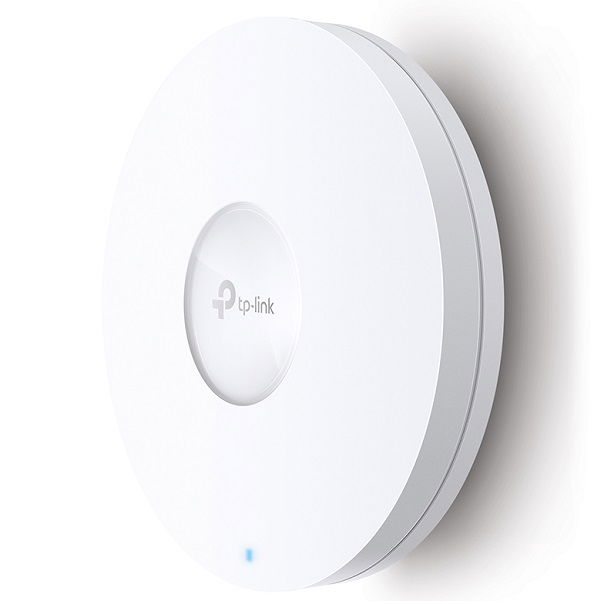

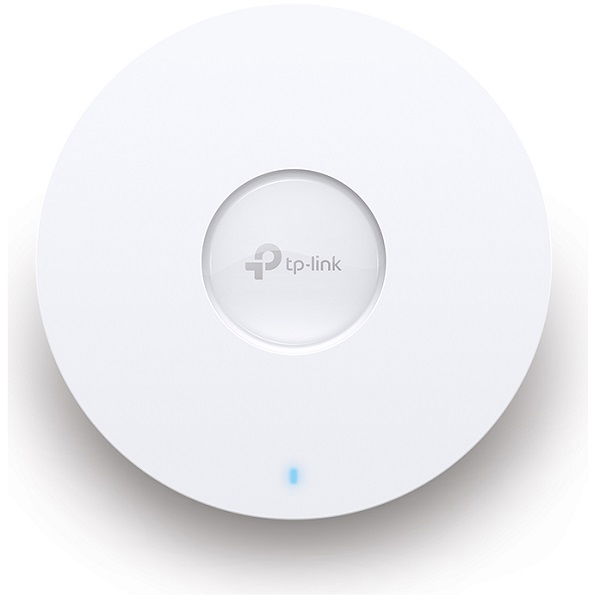

TP-Link EAP670 AX5400 Wall/Ceiling Mount MU-MIMO PoE Wireless Access Point

TP-Link Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Blazing-Fast WiFi 6 Speeds:
Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.

High-Efficiency WiFi 6:
More connected devices can enjoy faster speeds.

Centralized Cloud Management:
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel:
Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming:
Video streams and voice calls are unaffected as users move between locations.

Omada Mesh:
Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered:
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

Wireless Features:

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 4804 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power CE: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz, , band1 & band2, EIRP), < 30 dBm (5 GHz, , band3, EIRP); FCC: < 25 dBm (2.4 GHz), < 28 dBm (5 GHz)

Management:

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Hardware Features:

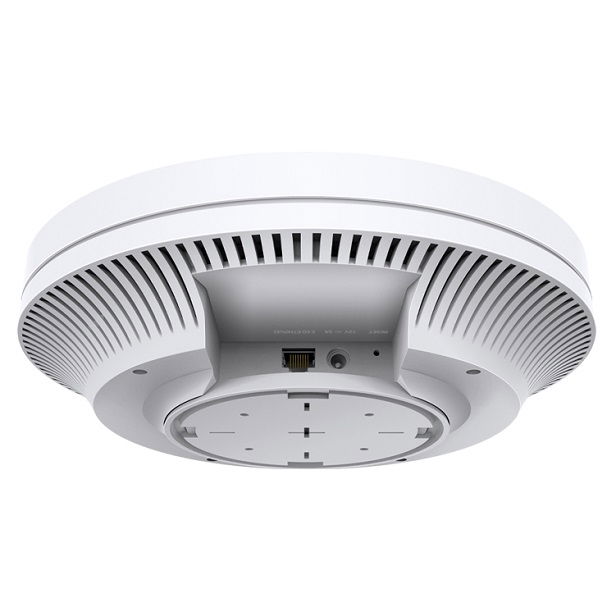

• Interface: 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 12 V / 1.5 A DC (Power Adapter included)
• Power Consumption: EU: 18.1 W, US: 19.8 W
• Dimensions (W x D x H): 243 × 243 × 64 mm
• Antenna Type: Internal Omni: 2.4 GHz: 2× 4 dBi, 5 GHz: 4× 5 dBi
• Mounting: Ceiling /Wall Mounting (Kits included)

• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

• EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
