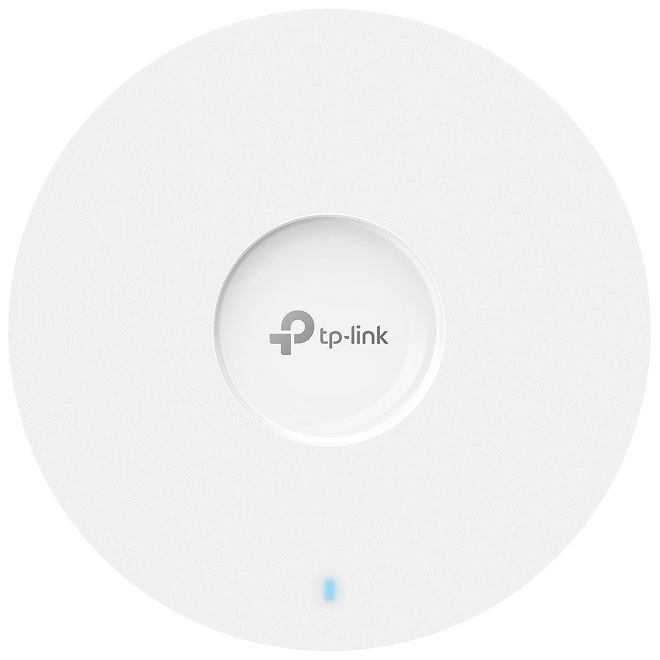

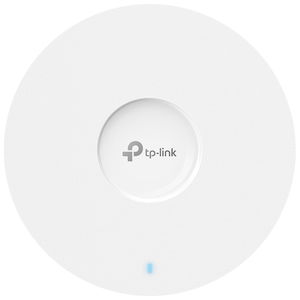

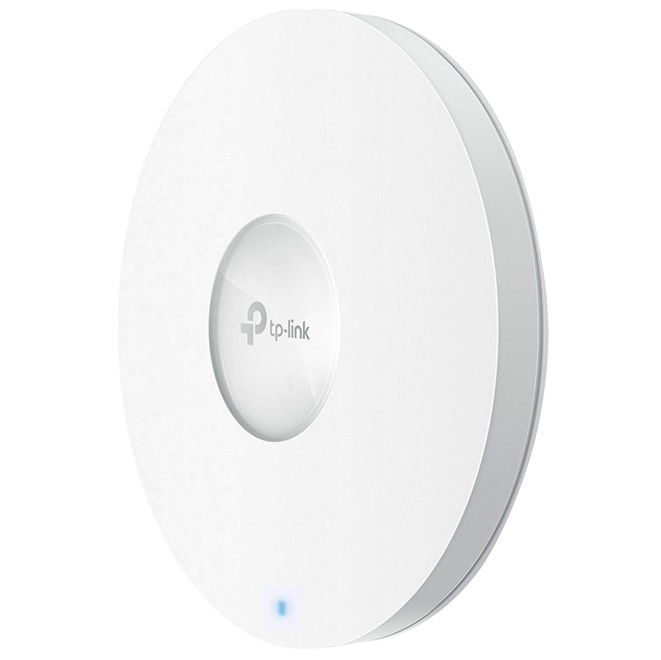

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point

Have an ultra-range wireless coverage for your office with the EAP653 UR AX3000 ceiling mount WiFi 6 access point.

• Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
• Ultra-range wireless coverage by more antennas with higher transmit power
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
• Advanced Features: Omada Mesh, Seamless Roaming, etc.
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
• Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
• Integrates with the Omada SDN platform for centralised management

Hardware Features:

• Interface: 1× Gigabit PoE+ Port
• Button: Reset
• Power Supply: 802.3at PoE, 12V DC / 1.5 A (Power Adapter IS NOT included), 48V Passive PoE
• Max. Power Consumption: EU: 14.2 W; US: 15.5 W
• Dimensions (W x D x H): 160 × 160 × 33.6 mm
• Antenna Internal - Omni: 2.4 GHz - 2× 5 dBi; 5 GHz - 3× 5 dBi

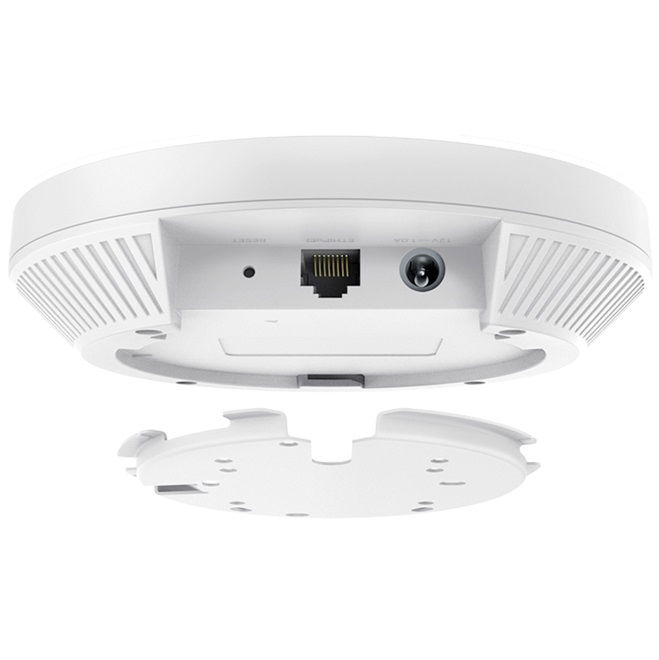

• Mounting: Ceiling /Wall Mounting (Kits included), Junction Box Mounting

Wireless Feature:

• Coverage: 185 ㎡ (2000 ft²)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO(2G: 22 MU-MIMO DL/UL; 5G:22 MU-MIMO DL/UL), HE160 (160 MHz Bandwidth), Seamless Roaming(802.11k/v/r), Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power - CE: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz, Band1 & Band2, EIRP), < 29 dBm (5 GHz, Band3, EIRP)
• Transmission Power - FCC: < 26 dBm (2.4 GHz), < 27 dBm (5 GHz)

Management Features:

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

General:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

• EAP653 UR
• Ceiling/Wall Mounting Kit
• Installation Guide
