Key Details:
- Model: EAP623-Outdoor HD
- Part #: AW001813
- Warranty: 1 Year
- Brand: TP Link
Ask Our Experts:

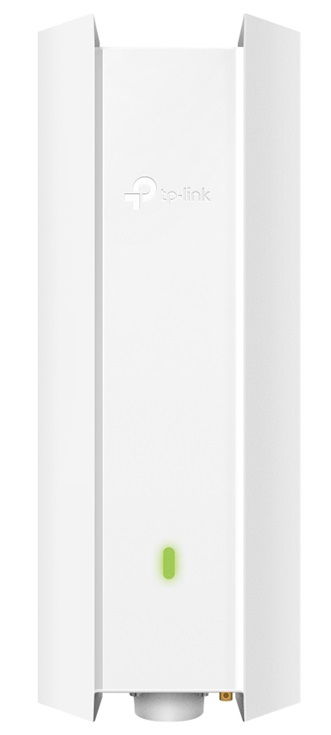

TP-Link EAP623-Outdoor HD, AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
AX1800 Indoor/Outdoor WiFi 6 Access Point.
Long-Range, High-Speed WiFi 6:
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage. Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
Explore More with Smart Antennas:
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes:
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
Hardware:
- Interface: 1x Gigabit Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE, 48V Passive PoE
- Antenna: 2x Internal Dual-Band Omni Antennas, 2.4 GHz: 4.0 dBi; 5 GHz: 5.0 dBi
- Weatherproof Enclosure: IP67

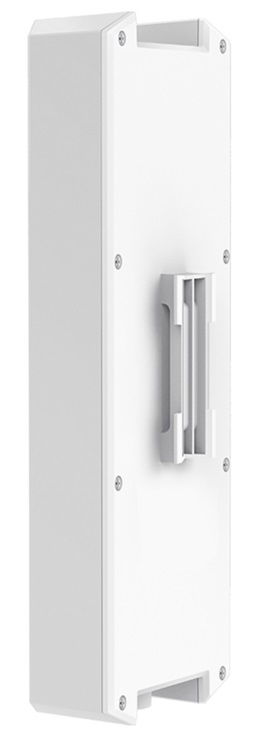

- Mounting: Ceiling / Wall Mounting
Wireless:
- Wireless Functions: Mesh, Seamless Roaming, Automatic Channel Assignment, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs:16 (8 for each band), Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
- Wireless Security: VLAN, Access Control, Rogue AP Detectio, Captive Portal Authentication, Maximum number of MAC Filter: 4,000, Wireless Isolation between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X Support
- Transmission Power: CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP), FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Management:
- Omada App: Yes
- Restore & Backup: Yes
- Firmware update via Web: Yes
- NTP: Yes
- Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- SSH: Yes
- Web-based Management: Yes
Others:
- Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
- Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing
We are an Official Reseller of TP-Link in New Zealand
