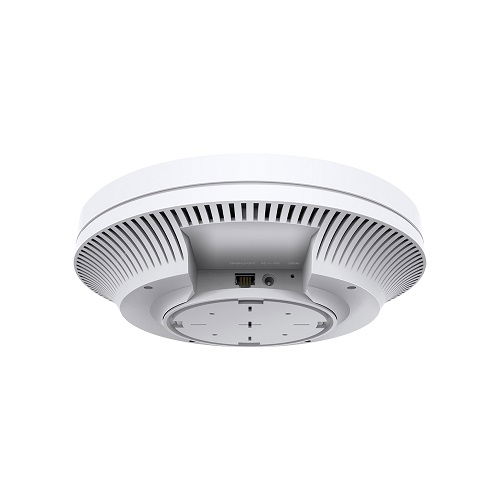

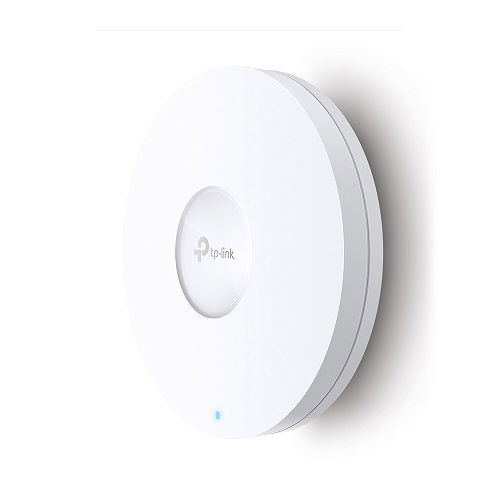

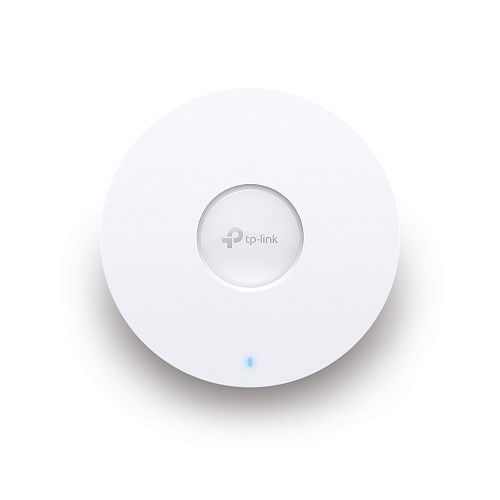

TP-Link EAP610 AX1800 Wall/Ceiling Mount MU-MIMO POE Wireless Access Point

EAP610 is an AX1800 Ceiling Mount WiFi 6 Access Point and is ideal for networking upgrades to WiFi 6, such as offices, campuses, retails, and hotels. WiFi 6 technology, provides faster speeds, less lag, and higher capacity. The advanced functions including Omada Mesh, Seamless Roaming, MU-MIMO, Captive Portal further boost network security, efficiency, and coverage.

Additionally, this product is integrated into Omada Software Defined Networking (SDN) system, and can be centrally managed with cloud access via Omada Hardware Controller or Software Controller. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management efficient than ever before.

Ultra-Fast WiFi 6 Speeds:
Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Efficiency WiFi 6:
More connected devices can enjoy faster speeds.

Centralized Cloud Management:
Manage the whole network locally or from the cloud via web UI or Omada app.

Seamless Roaming:
Even video streams and voice calls are unaffected as users move between locations.

Omada Mesh:
Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered:
Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.

Secure Guest Network:
Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Hardware Features:

• Interface: Uplink: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3af/at PoE, 12 V / 1 A DC
• Power Consumption: EU: 10W (802.3at PoE, PoE Out off), US: 11.5W (802.3at PoE, PoE Out off)
• Dimensions: 243 × 243 × 64 mm
• Antenna Type: Internal Omni: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi
• Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features:

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps; 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band). Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: less than 20 dBm (2.4 GHz, EIRP), less than 23 dBm (5 GHz, EIRP); FCC: less than 25 dBm (2.4 GHz), less than 25 dBm (5 GHz)

Management:

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

• EAP610
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
