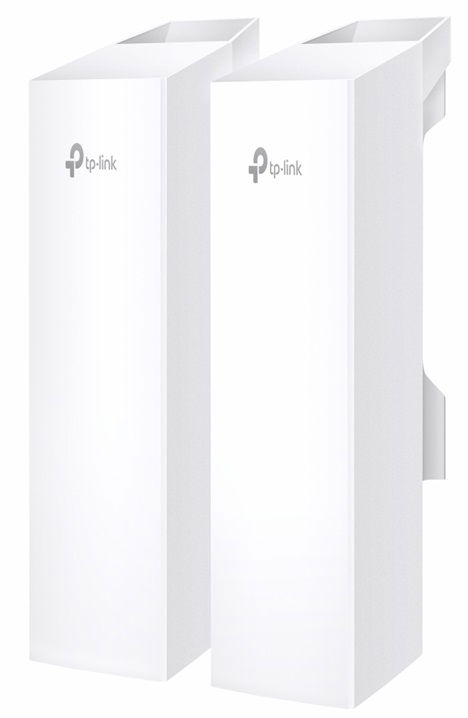

TP-Link EAP215 Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit

Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios.

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 5 km.
• Auto-pairing and agile LEDs for efficient deployment.
• 3x Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralised management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
• Supports Passive PoE for flexible deployment.

Hardware:

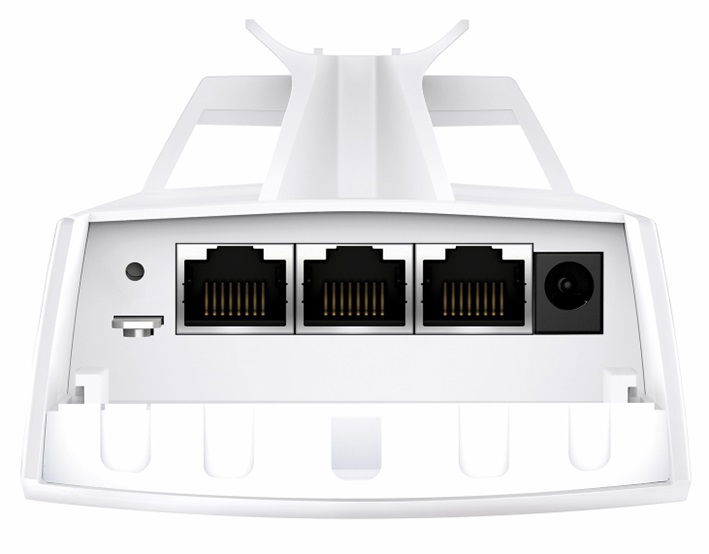

• Interface: 3x Gigabit Ethernet Ports
• Button: Reset
• Power Supply: 12V DC / 24V Passive PoE
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 11.0 dBi, Horizontal:35°, Vertical: 35°
• Weatherproof Enclosure: IP65

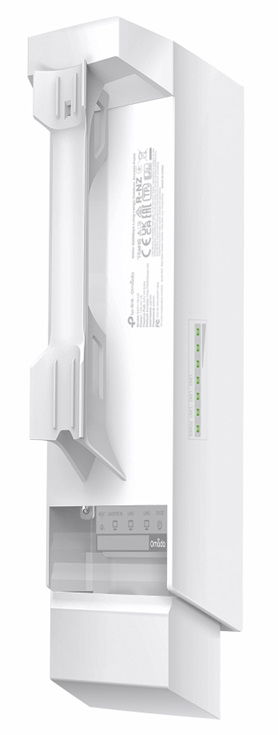

• Mounting: Pole mounting

Wireless:

• Coverage: 5000m(16400ft)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps
• Wireless Functions: Mesh, MU-MIMO: 5G 2x2 MU-MIMO DL, Load Balance, Beamforming, Seamless Roaming (802.11r), Airtime Fairness, Multiple SSIDs: 8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
• Wireless Security: VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum number of MAC Filter: 4,000, WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power (CE): <23dBm (5 GHz, band 1/2, EIRP), <30dBm (5 GHz band3, EIRP)
• Transmission Power (FCC): <22dBm (5 GHz band1/4)

Management Features:

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

Others:

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
• Dimensions (WxDxH): 79 × 60 × 224 mm
