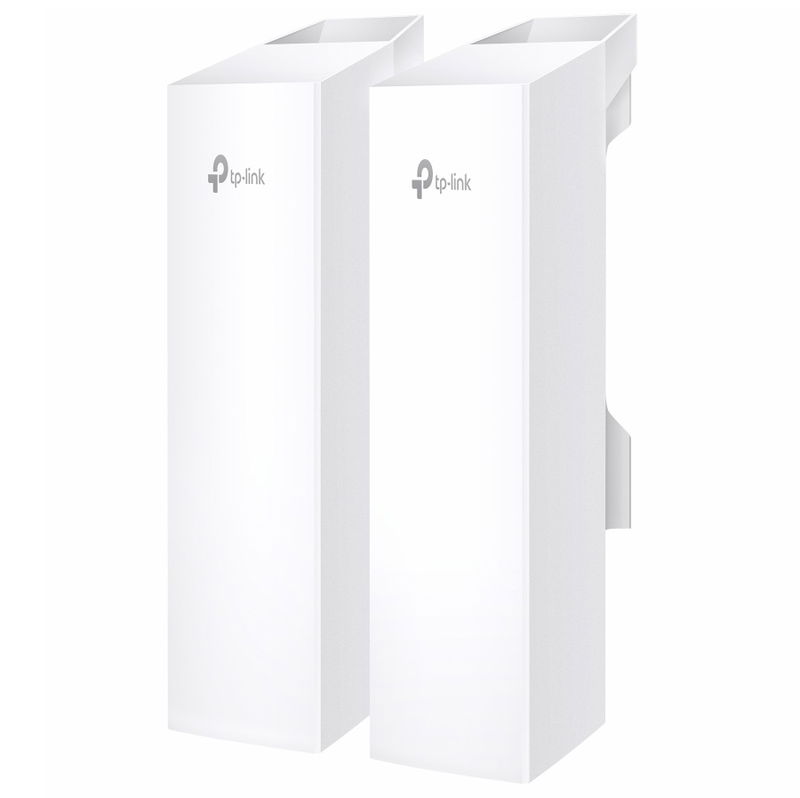

TP-Link EAP211 Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge Kit

Long-distance PtMP & PtP wi-fi transmission, perfect for multiple scenarios.

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 1 km.
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralised management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
• Supports Passive PoE for flexible deployment (adapter included).

Hardware Features:

• Interface: 3x Gigabit Ethernet Ports*6
• Button: Reset
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Max. Power Consumption: 11.5W
• Dimensions (W x D x H): 79 × 60 × 224 mm
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas; 5 GHz: 7.0 dBi; Horizontal: 70°, Vertical: 70°
• Weatherproof Enclosure: IP65
• Mounting: Pole Mounting (Accessories included)

Wireless Features:

• Coverage: 1000m(3280ft)5
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps
• Wireless Functions: Mesh, MU-MIMO: 5G 2x2 MU-MIMO DL, Load Balance, Seamless Roaming (802.11r), Beamforming, Airtime Fairness, Multiple SSIDs: 8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
• Wireless Security: VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum number of MAC Filter: 4,000, WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power - CE: < 23dBm (5 GHz, band 1/2, EIRP); < 28.5dBm (5 GHz, band3, EIRP)
• Transmission Power - FCC: < 22dBm (5 GHz, band1/4)

Management Features:

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

Others:

• Certification: CE, FCC, RoHS
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
