TP-Link EAP100 Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Kit

Enjoy reliable network performance up to 1640 ft (500 m) transmission distance with the TP-Link EAP100-Bridge KIT Wireless Bridge.

• Up to 1640 ft (500 m) Wi-Fi transmission
• Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
• Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
• App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
• Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
• 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
• Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.
• Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.

Hardware Features:

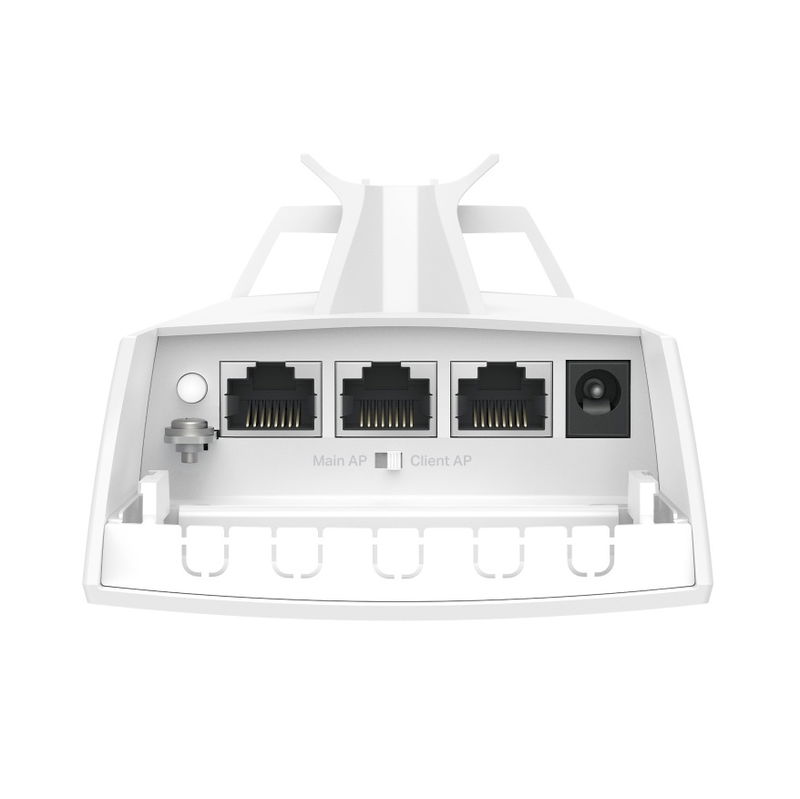

• Interface: 3x 10/100 Mbps Ethernet Ports
• Button: Reset
• Power Supply: 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE
• Max. Power Consumption: 4.8 W
• Dimensions (W x D x H): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas; 2.4 GHz: 8.0 dBi; Horizontal:70°; Vertical: 70°
• Weatherproof Enclosure: IP65
• Mounting: Pole and wall mounting (Pole accessories included)

Wireless Features:

• Coverage: 500 m (0.31 mi)
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 2.4 GHz: Up to 300 Mbps
• Wireless Functions: MIMO: 2.4G 2 × 2 MIMO, Mesh, Beamforming, Channel: 1-11 (US); 1-13 (EU), Multiple SSIDs: 8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, Static IP/Dynamic IP, Rate Limit, Guest Network, Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast
• Wireless Security: VLAN, Rogue AP Detection, Maximum number of MAC Filter: 4,000, Wireless Encryption
• Transmission Power: CE: < 20dBm (2.4 GHz, EIRP); FCC: < 22dBm (2.4 GHz)

Management Features:

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management: Omada Hardware Controller, Omada Software Controller, Omada App
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• SNMP: Yes
• System Logging Local/Remote Syslog: Yes
• SSH: Yes
• Web-based Management: Yes

Others:

• Certification: CE, FCC, RoHS
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

• EAP100-Bridge KIT
• Installation Guide
• Pole Mounting Kit
