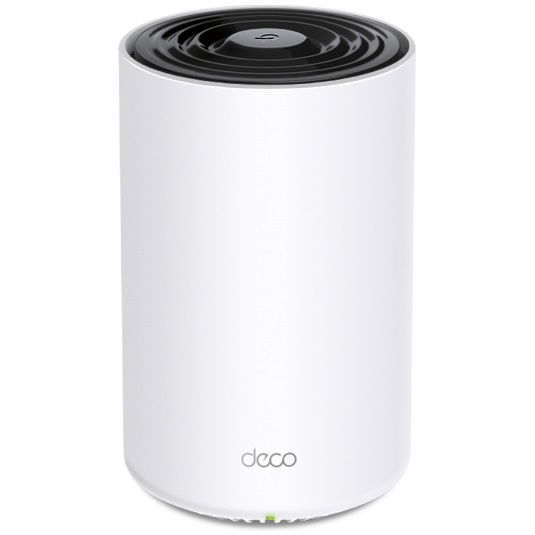

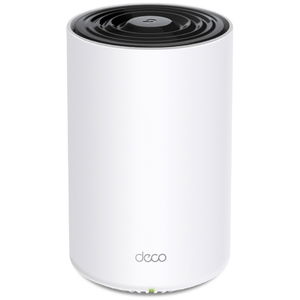

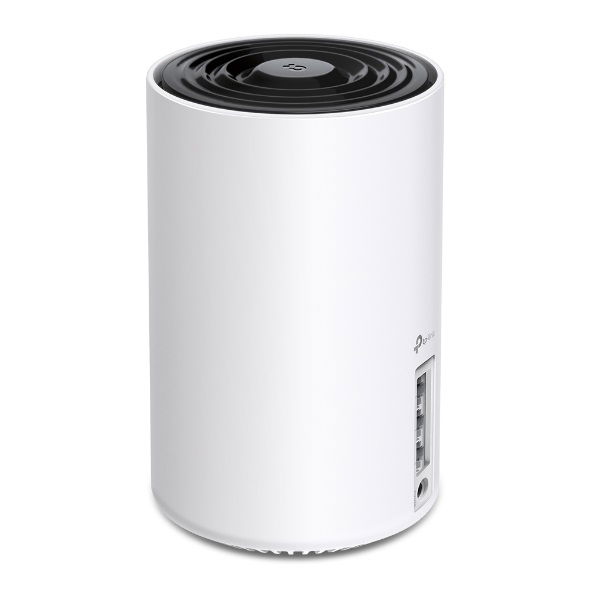

TP-Link Deco X75 AX5400 Tri-Band Mesh Wi-Fi 6 System - Single Pack

Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

• True Tri-Band Speed - All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices
• 6 Streams, Less Lag - 2×2/HE160 2402 Mbps + 2x2/HE160 2402 Mbps + 2×2 574 Mbps
• Boosted Seamless Coverage - Mesh WiFi coverage up to 7,200 ft2 (3-pack), 5,500 ft2 (2-pack), and 2,900 ft2 (1-pack)
• Gigabit Wired Speed - 3x Gigabit ports provide sufficient connectivity
• Seamless AI-Driven Mesh - Unites your home under one name and password while delivering the best connections as you move room to room
• TP-Link HomeShield - Keeps your home network safe with cutting-edge features for network and IoT protection
• Universal Compatibility - Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem
• Setup Made Easier Than Ever - The Deco app walks you through setup step-by-step

Wireless:

• Standards: Wi-Fi 6: IEEE 802.11ax/ac/n/a 5 GHz (1), IEEE 802.11ax/ac/n/a 5 GHz (2), IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds: AX5400 - 5 GHz (1): 2402 Mbps (802.11ax, HE160), 5 GHz (2): 2402 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range: 1-3 Bedroom Houses, TP-Link Mesh Technology (Optional Ethernet backhaul work together to link Deco units to provide seamless coverage), AI-Driven Mesh (Intelligently learns the network environment to provide ideal Wi-Fi unique to your home), 4x High-Gain Antennas (Internal, Multiple antennas form a signal-boosting array to cover more directions and large areas), Tri-Band (Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage), Beamforming (Concentrates wireless signal strength towards clients to expand WiFi range)
• WiFi Capacity: Very High - Tri-Band (Distribute devices to different bands for optimal performance), 2x2 MU-MIMO (Simultaneously communicates with multiple MU-MIMO clients), OFDMA (Simultaneously communicates with multiple WiFi 6 clients), 6 Streams (More than enough bandwidth for connected devices)
• Working Modes: Router Mode, Access Point Mode

Hardware:

• Ethernet Ports: 3x Gigabit Ports (Per Deco Unit supports WAN/LAN auto-sensing)
• Buttons: RESET Button

Security:

• WiFi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal
• Network Security: SPI Firewall; Access Control; HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
• Guest Network: 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network

Software:

• Protocol: IPv4, IPv6
• Service Kits: HomeShield
• Parental Controls: HomeShield Parental Controls - Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: HomeShield QoS, QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link
• Management: Deco App

Test Data:

• WiFi Transmission Power, CE: ≤ 20 dBm (2.4GHz), ≤ 30 dBm (5GHz)
• WiFi Transmission Power, FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz)

General:

• Certification: CE, FCC, RoHS
• Operating Temperature: 0°C40°C (32°F104°F)
• Storage Temperature: -40°C60°C (-40°F140°F)
• Operating Humidity: 10%~90%RH
• Storage Humidity: 5%~90%RH
• Dimensions (W×D×H): 105 x 105 x 169 mm

• 1 Deco X75 unit
• 1 RJ45 Ethernet cable
• 1 Power adapters
• Quick Installation Guide
