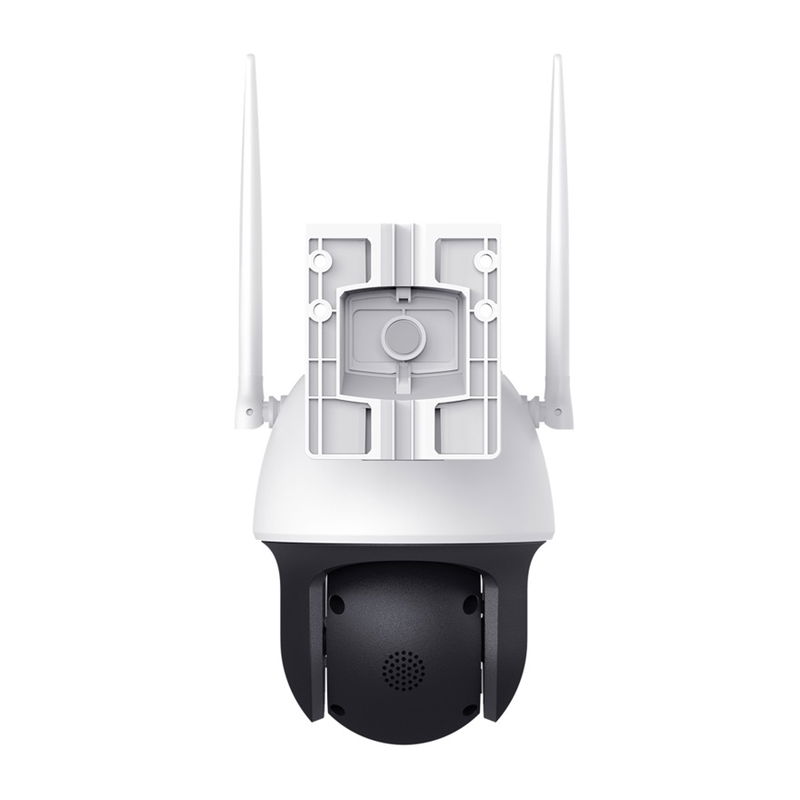

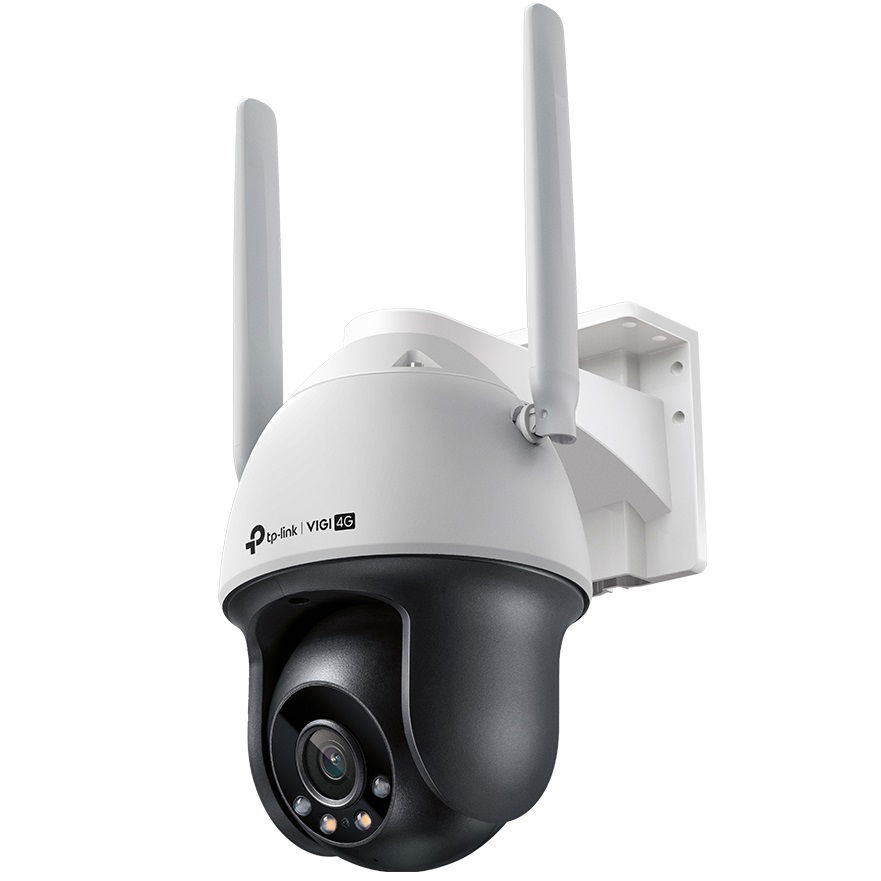

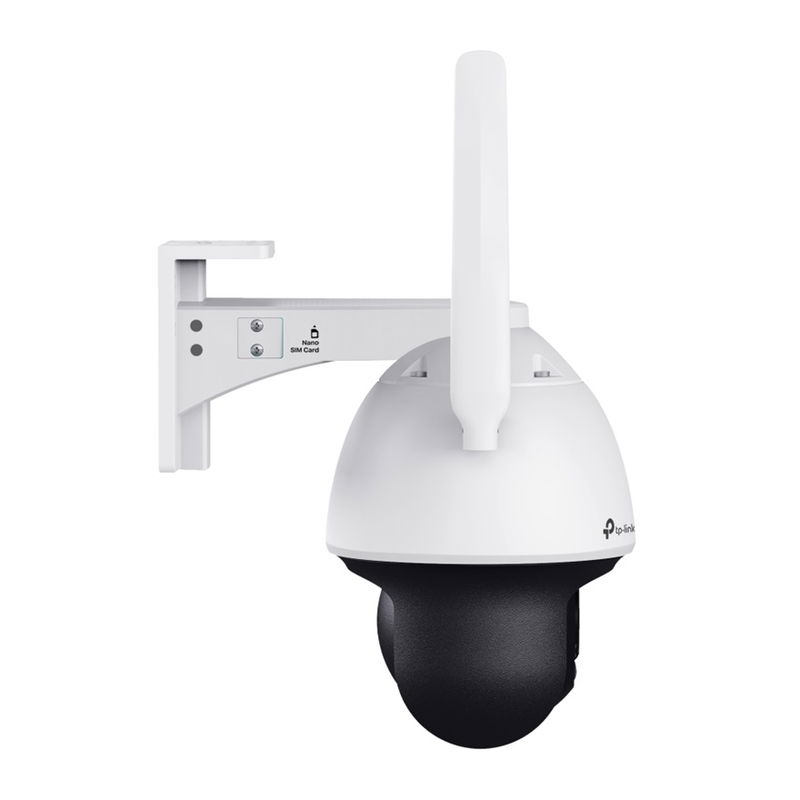

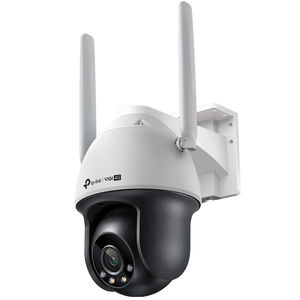

TP-Link C540-4G 4MP 4mm 4G Outdoor Pan Tilt Network Camera

Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

• 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
• 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
• 360° Monitoring: Cover every corner and eliminate blind spots.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof: Reliable IP66 for stable outdoor performance.
• Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
• Onboard Storage: Support on-board storage up to 256 GB (SD card slot).

Camera:

• Image Sensor: 1/3.06” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
• Lens Mount: M12x0.5
• DORI Distance: Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft)

PTZ:

• Pan/tilt Range: Pan: 0° to 348°, Tilt: 0° to 120°
• Pan/tilt Speed: Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s; Tilt Speed: Configurable from 8° to 44°/s, - Preset Speed: 44°/s
• Manual Control Speed: Configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan: 8 patrols, up to 8 presets for each patrol
• Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
• Park Action: Yes; Preset; Patrol Scan
• 3D Positioning: Yes

Angle Adjustment (Manual):

• Pan: 0° to 348°
• Tilt: 0° to 120°

Illuminator:

• IR LED Quantity: 2
• IR LED Range: 30m
• IR LED Wavelength: 850nm
• White LED Quantity: 2
• White LED Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2560 X 1440
• Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 640x480, 352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate: Main Stream: 256 Kbps to 3 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps (G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF: Yes
• API: ONVIF
• Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G:

• Standard: LTE-TDD/LTE-FDD/WCDMA
• SIM Type: Nano SIM
• Category: 4
• Frequency: LTE-FDD: B 1/3/5/7/8/20/28; LTE-TDD: B 38/40/41; WCDMA: B 1/5/8

Alarm and Event Management:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, People Detection, Vehicle Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method: N/A
• Output Notification: Message Push

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm: N/A
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Nano-SIM Card Slot: Yes
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: Yes
• Audio: N/A

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Plastic
• Net Weight: 0.69 Kg
• Gross Weight: 1.16 Kg
• Power Supply: 12V DC/1A, 5.5mm Coaxial Power Plug
• Antenna: 2x 690960&17102690MHz Dipole Omni-Directional Antenna
• Antenna Gain: Ant1: 0.84dBi@690960MHz, 2.85dBi@17102690MHz; Ant2：0.74dBi@690960MHz, 3.06dBi@17102690MHz
• Protection: IP66
• Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas)
• Certifications: CE, RCM, BSMI, RoHS, NCC

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
