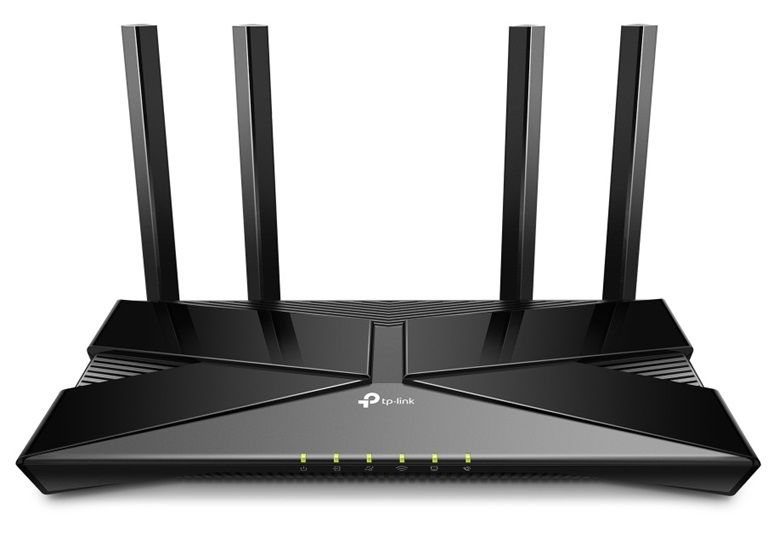

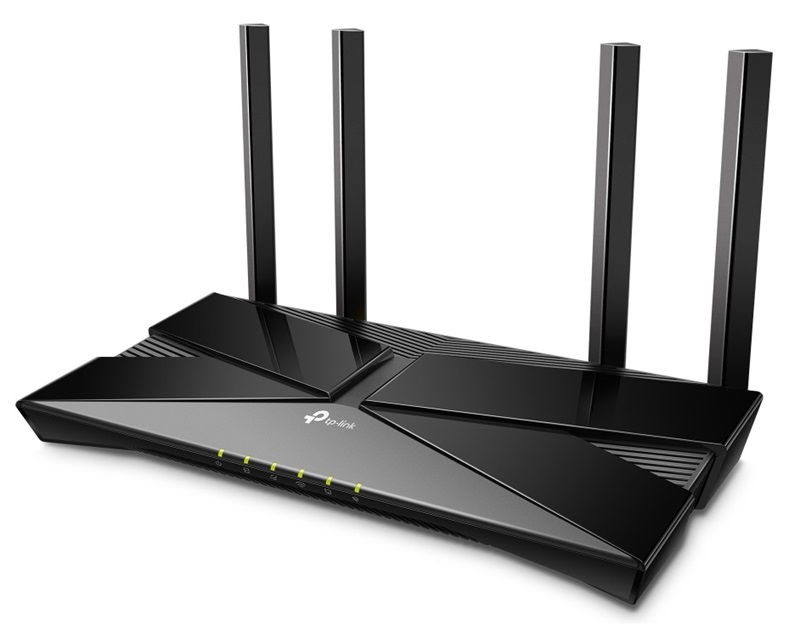

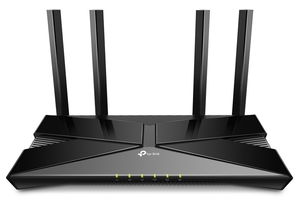

TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

Stay Fast with Wi-Fi 6. AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router.

Wi-Fi 6 Upgrades Incedible Speed:
The Archer VX1800v features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5× faster than its VDSL2 predecessor. Compatibility with the leading ISPs provides ideal IP-based connections for any home. The integrated DSL port also supports all standard DSL connections.

Versatile Connectivity:
Archer VX1800v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection.

Flexibly Create Whole Home Mesh WiFi:
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Easy Setup and Use:
Set up the Archer VX1800v in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Hardware:

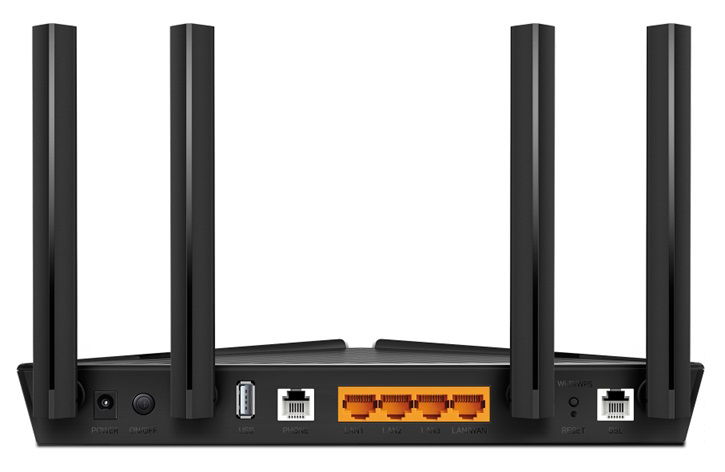

• Interface: 1x Gigabit WAN/LAN, 3x Gigabit LAN, 1x USB 2.0, 2x RJ11 (1× DSL + 1× FXS)
• External Power Supply: 12V / 1.5A
• IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab
• VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T, G.994.1 (G.hs), ITU-T G.995.11
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards: ITU-T G.992.5(Annex A/L/M)
• Dimensions (LxWxH): 260.2 × 135.0 × 41.6 mm
• Antenna: 4x External Antennas

Wireless:

• Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
• Wireless Speeds: 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Wireless Functions: Enable/Disable Wireless Radio, WMM
• Wireless Security: WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions
• Transmission Power: CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
• Wireless Schedule: Supports 2.4 GHz and 5 GHz Wireless Schedule

VoIP Features:

• VoIP Standards: SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726
• Integrated Answering Machine: Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices
• Advanced Telephone Functions: Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number

Software:

• Advanced Features: IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
• Security: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
• Operating Modes: VDSL/ADSL Modem Router, 3/4G Router, Wireless Router
• Management Features: Access Control, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP, TP-Link
• VPN: OpenVPN, PPTP VPN, IPSec VPN
• Protocols: Support IPv4 and IPv6
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
• USB Sharing: Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage
• Guest Network: 2.4 GHz guest network, 5 GHz guest network
• IPSec VPN: Support up to 10 IPSec VPN tunnels

Others:

• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
