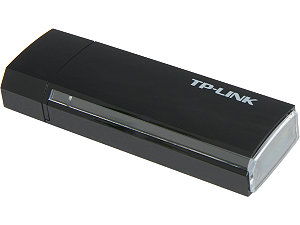

TP-Link Archer T4U AC1200 Wireless Dual Band USB Adapter

TP-LINK’s Archer T4U comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds. With 867Mbps wireless speeds over the crystal clear 5GHz band or 300Mbps over the 2.4GHz band, the Archer T4U is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

• Supports 802.11ac standard- The next generation of Wi-Fi
• SuperSpeed USB 3.0 port—Up to 10x faster than USB 2.0
• Dual Band connections for lag-free HD video streaming and gaming
• Maximum speed up to 5GHz 867Mbps or 2.4GHz 300Mbps
• Backward compatible with 802.11 a/b/g/n products
• Supports ad-hoc and infrastructure mode
• Easy wireless security encryption at a push of the WPS button
• Supports Windows 8/7/XP 32/64bit
• Easy Wireless Configuration Utility
• Equipped with a USB 3.0 1.0m Extension Cable for flexible deployment

Hardware:
• Interface: USB 3.0
• Button: WPS button
• Dimensions (W X D X H): 92.2×29×14.6mm
• Antenna Type: Omni Directional

Wireless:
Wireless Standards
• IEEE 802.11ac, IEEE 802.11a,
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
• 5GHz
• 2.4GHz

Signal Rate
5GHz
• 11ac: Up to 867Mbps(dynamic)
• 11a: Up to 54Mbps(dynamic)
2.4GHz
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)

Reception Sensitivity
5GHz:
• 11a 6Mbps: -88dBm
• 11a 54Mbps: -71dBm
• 11ac HT20: -65dBm
• 11ac HT40: -60dBm
• 11ac HT80: -56dBm
2.4GHz:
• 11b 11Mbps: -90dBm
• 11g 54Mbps: -73dBm
• 11n HT20: -71dBm
• 11n HT40: -68dBm

Transmit Power
• < 20dBm (EIRP)

Wireless Modes
• Ad-Hoc / Infrastructure mode

Wireless Security
• Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology
• DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Others:
Certification
• CE, FCC, RoHS

Environment
• Operating Temperature: 0 ~ 40°C
• Storage Temperature: -40 ~ 70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Windows 10, Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)

• Wireless Adapter Archer T4U
• Resource CD
• Quick Installation Guide
• USB Extension Cable
