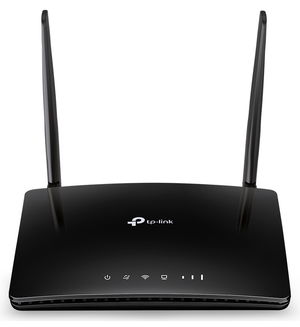

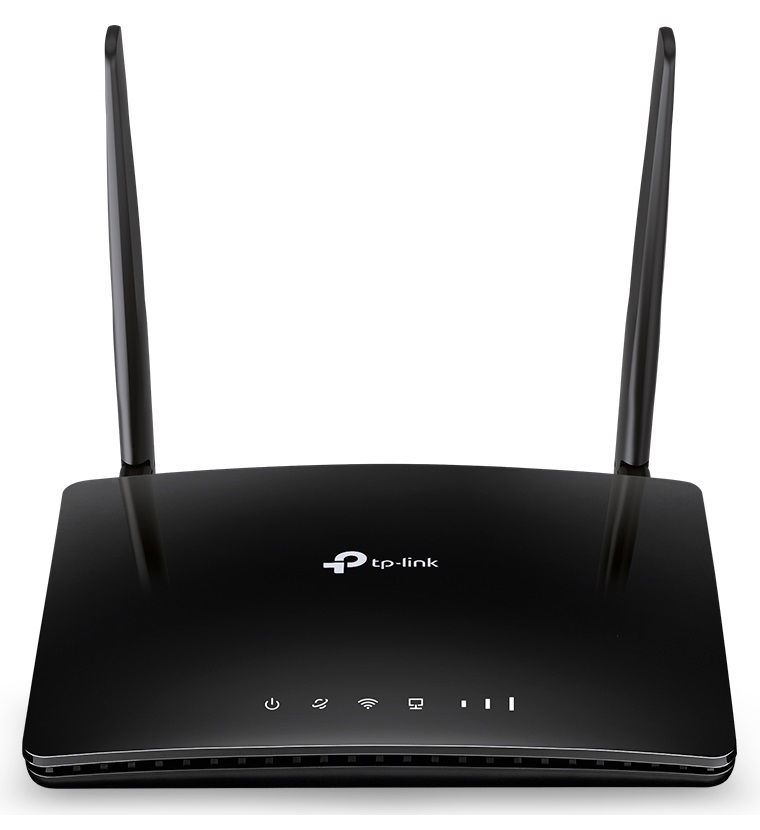

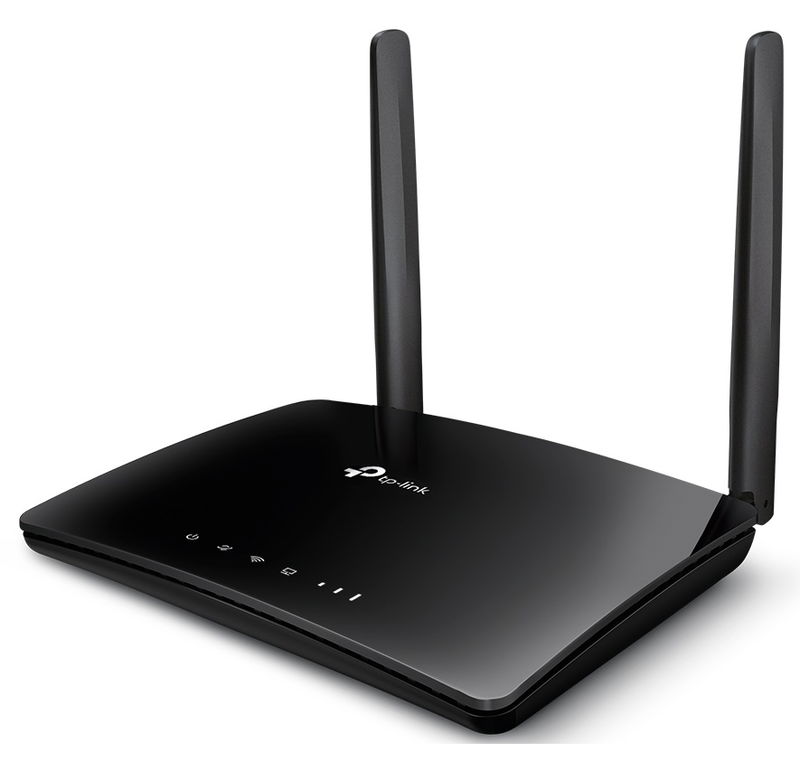

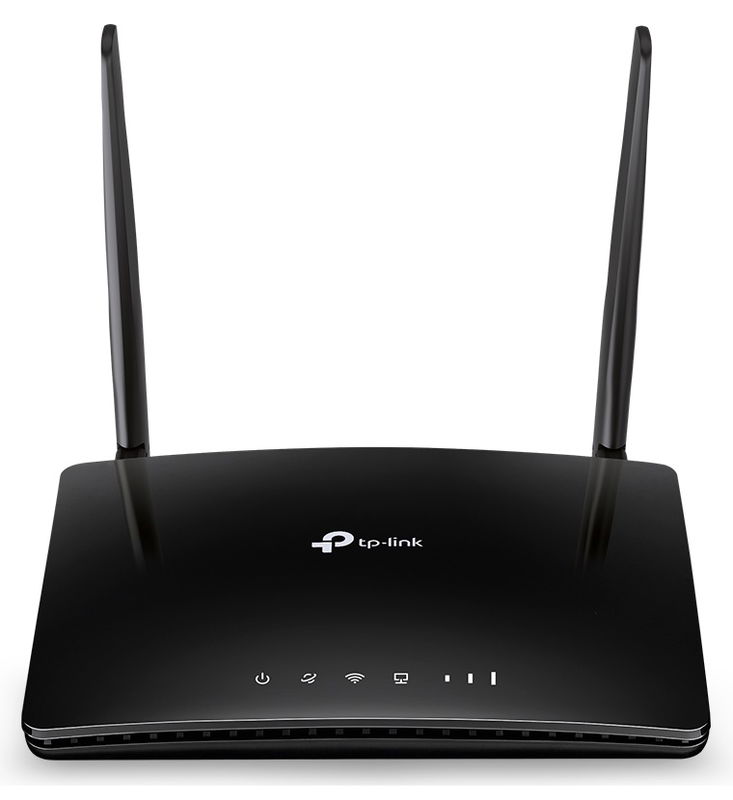

TP-Link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router

4G LTE with AC1200 Wi-Fi to Stream from Everywhere,

Got SIM Card? Then Plug and Play!:
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network:
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It:
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Available WAN Connection:
The WAN/LAN port enables Archer MR402 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Management:
Set up the Archer MR402 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Hardware:

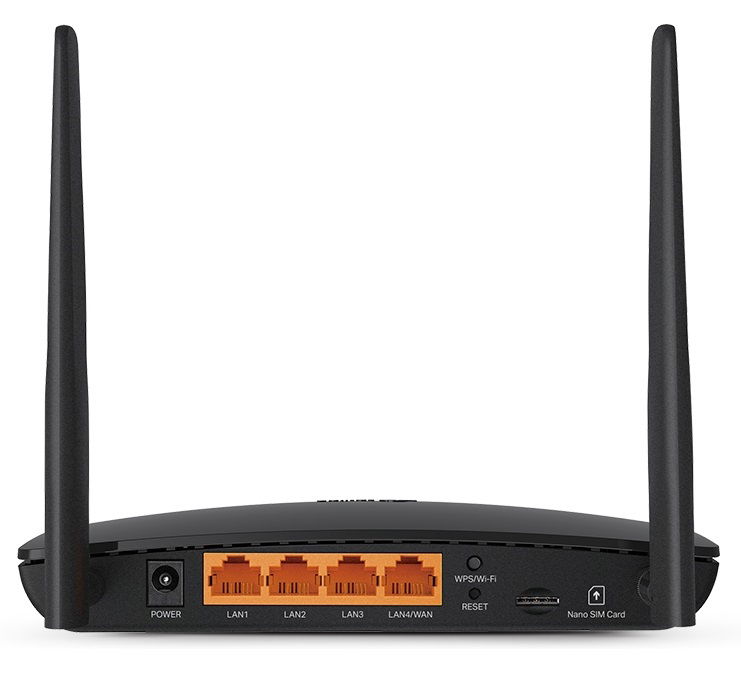

• Interface: 3x10/100Mbps LAN Ports, 1x 10/100Mbps LAN/WAN Port, 1x Nano SIM Card Slot, 2x External SMA-F Antenna Interface
• Button: WPS/Wi-Fi Button, Reset Button
• External Power Supply: 12V/1A
• Dimensions (LxWxH): 174 × 124.5 × 33.5 mm
• Antenna: 2x Detachable External 4G LTE Antennas

Wireless:

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
• 5 GHz Reception Sensitivity: 11a 54M: -77 dBm, 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm, 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm, 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
• 2.4 GHz Reception Sensitivity: 11g 54M: -74.5 dBm, 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm, 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz), 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software:

• Quality of Service: Prioritizes network traffic by device or application
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management Features: Access Control, Local Management, Remote Management, reboot schedule
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• VPN: PPTP VPN, OpenVPN
• Access Control: Parental Control, Local Management Control
• Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x1, 5GHz guest network x1

Others:

• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
• Nano SIM Card
