TP-Link Archer MR202 AC750 Wireless Dual Band 4G LTE Router

Enjoy 4G Wireless Sharing Everywhere.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Got SIM Card? Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously
The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It
The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.

Available WAN Connection
The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Management
Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

Hardware:

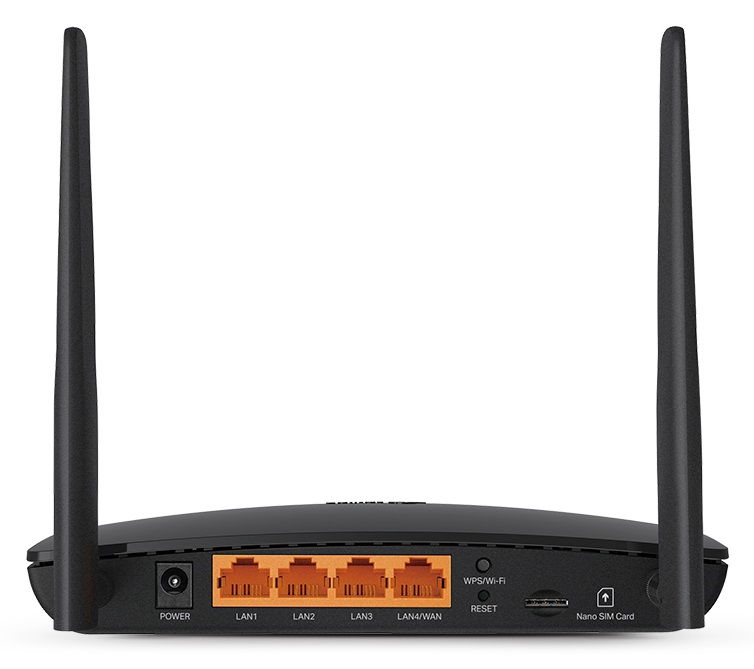

• Interface: 3x 10/100Mbps LAN Ports, 1x 10/100Mbps LAN/WAN Port, 1x Nano SIM Card Slot, 2x External SMA-F Antenna Interface
• Button: WPS/Wi-Fi Button, Reset Button
• External Power Supply: 12V/1A
• Dimensions (LxWxH): 174 × 124.5 × 33.5 mm
• Antenna: 2x Detachable External 4G LTE Antennas

Wireless:

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
• 5 GHz Reception Sensitivity: 11a 54M: -78 dBm, 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm, 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm, 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
• 2.4 GHz Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm, 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
  Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Network Type:4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz), 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software:

• Quality of Service: Prioritizes network traffic by device or application
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management Features: Access Control, Local Management, Remote Management, reboot schedule
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP, TP-Link DDNS
• VPN: PPTP VPN, OpenVPN
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x1, 5GHz guest network x1

Others:

• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Nano SIM Card
