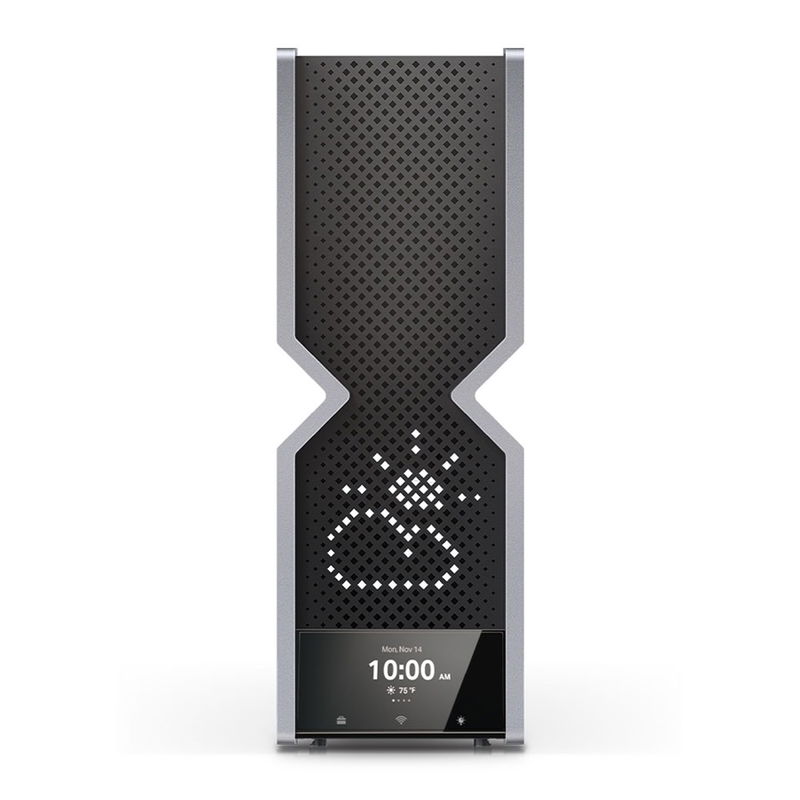

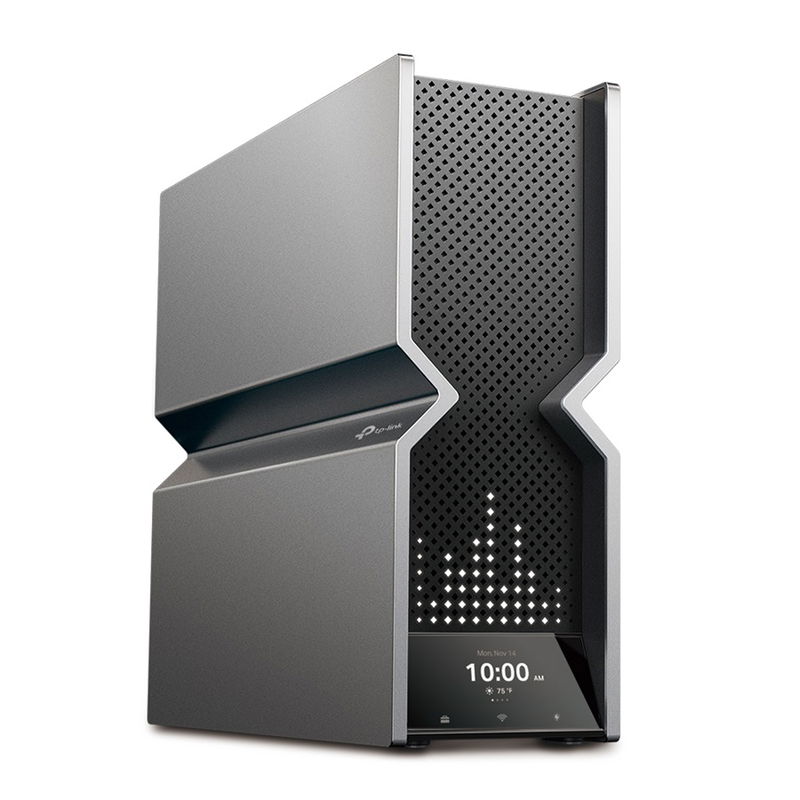

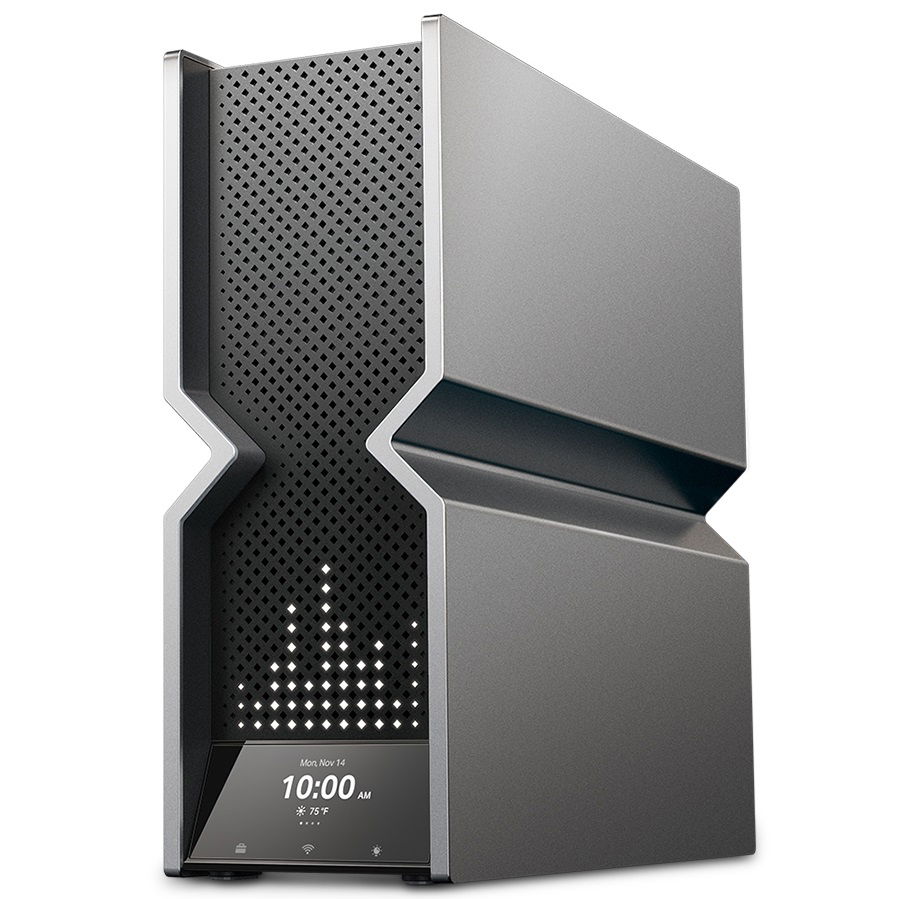

TP-Link Archer BE900 BE24000 Quad-Band Wi-Fi 7 Wireless Router

Experience the world’s first quad-band WiFi 7 router with blazing-fast speeds up to 24.4 Gbps. Every device in your home network will run at top performance. The brand-new 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.

Redefining WiFi Routers:
With powerful WiFi 7 performance, lightning-fast wired connections, brand-new design, and easy-to-use touchscreen and LED screen.

Lightning-Fast 24.4 Gbps Quad-Band WiFi 7:
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and unbelievably fast downloads.

Dual 10G Ports:
1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× 1 Gbps port + 2× USB ports ensure max flexibility and boosted throughput.

Maximized Coverage:
Proprietary WiFi optimization and 12× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible:
Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

TP-Link HomeShield:
Enhanced security defends against the latest cyber threats.

Easy and Fun to Use:
Conveniently manage everything with the Tether app and touchscreen. Visually display the time, weather, and playful graphics with the LED screen.

Wireless:

• WiFi Speeds - BE24000: 6 GHz: 11520 Mbps (802.11be); 5 GHz-1: 5760 Mbps (802.11be); 5 GHz-2: 5760 Mbps (802.11be); 2.4 GHz: 1376 Mbps (802.11be)
• WiFi Range: 4 Bedroom Houses: 12× Optimally Positioned Antennas, Beamforming, High-Power FEM
  WiFi Capacity - Very High: Quad-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 16 Streams
• Working Modes: Router Mode, Access Point Mode
• Advanced Features: 320 MHz Channel, 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network

Security:

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security
• Guest Network: 1× 6 GHz Guest Network, 1× 5 GHz-1 Guest Network, 1× 5 GHz-2 Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN Server, PPTP VPN Server, L2TP VPN Server, WireGuard VPN Server
• VPN Client: Open VPN Client, PPTP VPN Client, L2TP VPN Client, WireGuard VPN Client
• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Hardware:

• Ethernet Ports: 1× 10 Gbps WAN/LAN, 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN, 4× 2.5 Gbps LAN, 1× 1 Gbps LAN
• USB Support: 1× USB 3.0, 1× USB 2.0
• Buttons: Power On/Off Button, Wi-Fi On/Off Button (Touchscreen), LED Button (Touchscreen), WPS Button (Touchscreen), Reset Button
• Power: 15 V ⎓ 5 A
• Touchscreen: Yes
• LED Screen: Yes

Software:

• Protocols: IPv4, IPv6
• Service Kit: HomeShield
• EasyMesh: Compatible with EasyMesh
• Parental Controls: HomeShield Parental Controls
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management Features: Tether App, Webpage

General:

• Certifications: CE, FCC, RoHS
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
• Dimensions (W×D×H): 96 × 302 × 262.5 mm

System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)

• Wi-Fi 7 Router Archer BE900
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
