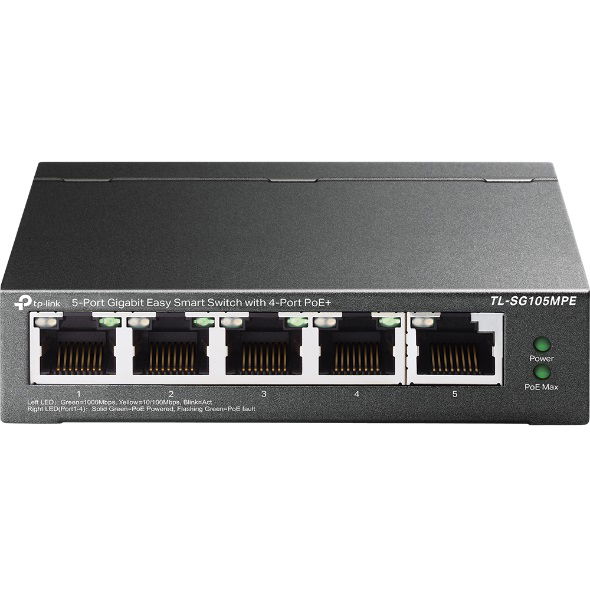

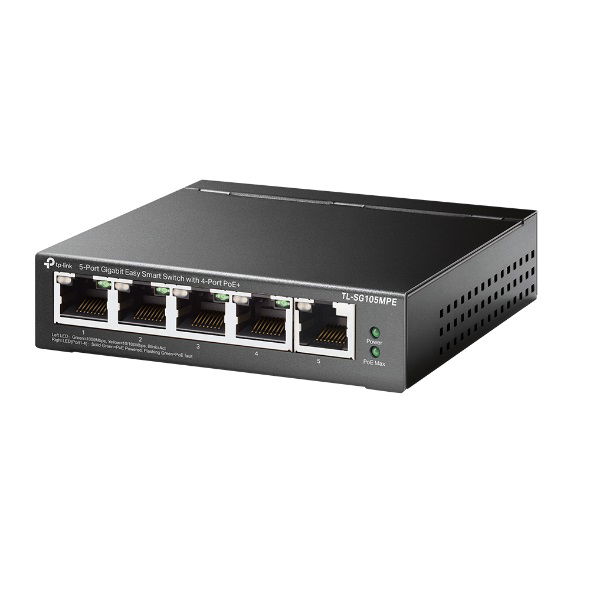

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 120 W for all PoE ports*
• Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise

Hardware:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface: Five 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Port 1- Port 4, PoE Power Budget: 120 W
• Dimensions (W x D x H): 99.8 x 98 x 25 mm
• Max Power Consumption: 4.34 W (220 V/50 Hz with no PD connected), 137.01 W (110 V/50 Hz with 120 W PD connected)
• Max Heat Dissipation: 14.8 BTU/h (with no PD connected), 467.17 BTU/h (with 120 W PD connected)

Performance:

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2 K
• Packet Buffer Memory: 1 Mb
• Jumbo Frame: 16 KB

Software:

• Quality of Service: Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Management: Web-based GUI, Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

Environment:

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

• TL-SG105MPE
• Power Adapter
• Installation Guide
• Rubber Feet
