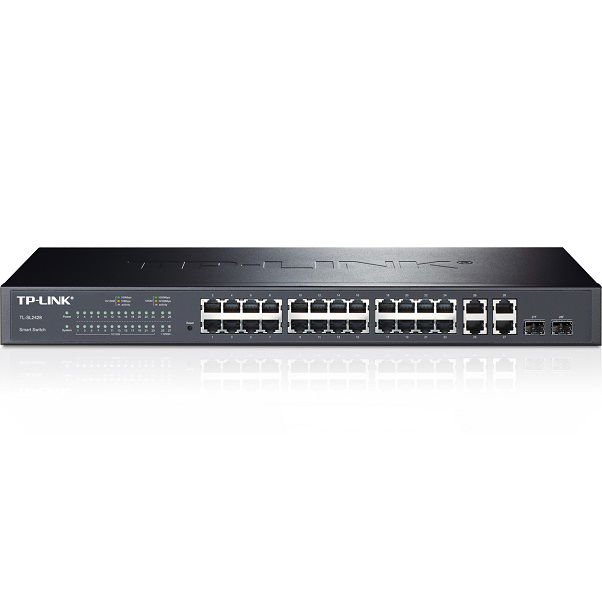

TP-Link TL-SL2428WEB 24-Port 10/100Mbps + 4-Port Gigabit Web Smart Switch

The TP-LINK TL-SL2428WEB is a web smart switch with 24 10/100Mbps ports, 2 10/100/1000Mbps Port, and 2 Gigabit SFP Slots supporting Mini GBIC modules. It integrates advanced management and security functions that provide performance and scalability. It delivers maximum throughput where you need it to high-performance workgroups at the edge of the network. What’s more, Quality of Service (QoS) provides enhanced traffic management capabilities to ensure your data transmission smoother and faster.

Versatile Layer 2 Switching Features:
Equipped with a complete lineup of L2 features, this switch includes Port Mirroring and IEEE 802.3x Flow Control. VLAN Supported (IEEE 802.1Q, Port-Based, MTU), Network security is a top priority in any size business. VLANs allow the network to be segmented into groups (Departmental, Hierarchical, and Security Groups). It enhances the security of a network. Virtual Cable Test is designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error: opens, shorts, cable impedance mismatch, bad connectors, and termination mismatch.

Quality of Service:
TL-SL2428WEB supports IEEE 802.1p, applies Class of Service with 4 priority queues per port: lowest, lower, higher and highest. Now the administrator can designate the bandwidth intensive and sensitive applications with high priority to remain stable and fluid so that you don’t get interrupted when you’re watching a video online or lag during an Internet phone call.

Streamlined Web-based Management:
In addition, an intuitive, Web-browser interface offers the simple mart switch management, making it a snap to monitor switch performance, configures ports, even set up port trunking, VLANs, and 802.1p Priority Class prioritization.

Hardware:

• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p
• Interface: 24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX), 2 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX), 2 Gigabit SFP ports
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-X: MMF, SMF
• Fan Quantity: Fanless
• Button: Reset Button
• External Power Supply: 100-240VAC, 50/60Hz
• Backup Bandwidth: 12.8Gbps
• Packet Forwarding Rate: 9.52Mpps
• Mac Address Table: 8k
• Buffer Size: 4Mb
• Dimensions (W x D x H): 440 x 180 x 44 mm

Software:

• VLAN: Port Based VLAN, 802.1Q Tag-VLAN, MTU VLAN
• Access Control List: Based on Port, Based on MAC
• Security: Port Security, Statick MAC Address Binding, Dynamic MAC Address Binding
• Management: Web (Http) Management, Remote Management
• Basic Function: MAC Address Auto-Learning and Auto-aging, Storm Control (Broadcast, Multicast, Unknown unicast), Port Mirroring
• Transfer Method: Store-and-Forward
• Priority: Port based Priority, IEEE 802.1p based Priority: 4 Queues, IP DSCP based Priority
• Link Aggregation: Port Trunking
• System Function: Fixed IP Address Setting, VCT (visual cable test ), Port Flow Statistics, TFTP Upgrade

Environment:

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

• Web Smart Switch
• Power Cord
• Rackmount KITUser Guide
