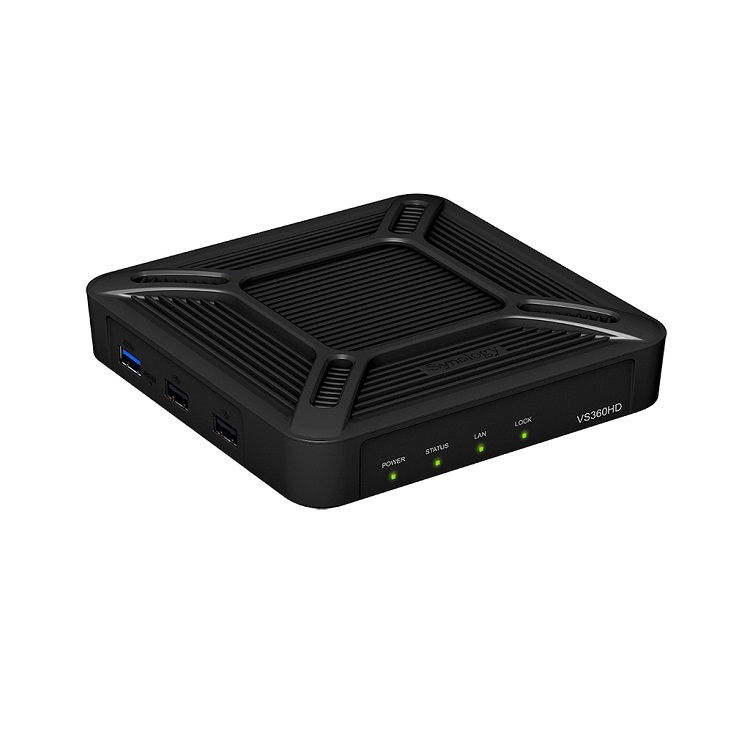

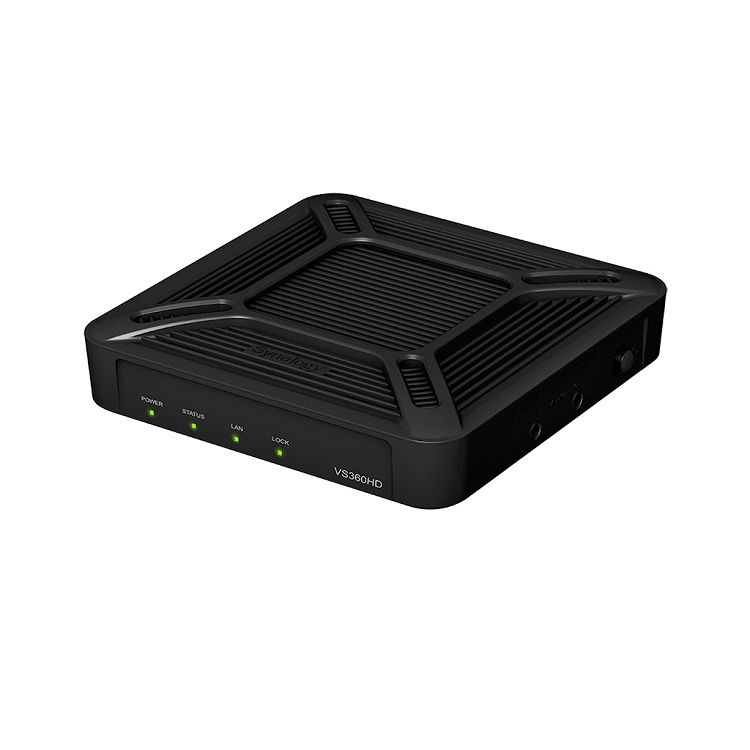

Synology VS360HD Visual Station

Working with Synology NAS, VS360HD is an ultra-compact companion system offering features from Surveillance Station including live view and management tools.

Designed for PC-less surveillance monitoring solution

• VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station — and you've set up a monitoring station for yourself.

Robust and certified hardware for harsh environments

• Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20?C to 50?C. In addition, VisualStation is EN45545 and EN50155 certified.

Ideal for TV wall setup

• TV wall is ideal for monitoring a massive amount of camera at a glance, and it is easy to set up with VisualStation.
• Dual screen display: Supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup, and scalable TV wall solution.
• Minimum device size: The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.

Convenient live view and playback interface

• VS360HD provides a user-friendly interface and powerful features both inherited from Surveillance Station.
• Intuitive interface for easy operation: For both beginner and advanced users, you can enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard, or even a joystick.
• Support most Surveillance Station features: Perform PTZ actions in Live View, switch to Timeline to watch recorded events, take snapshots and export them to an external storage device, and more.

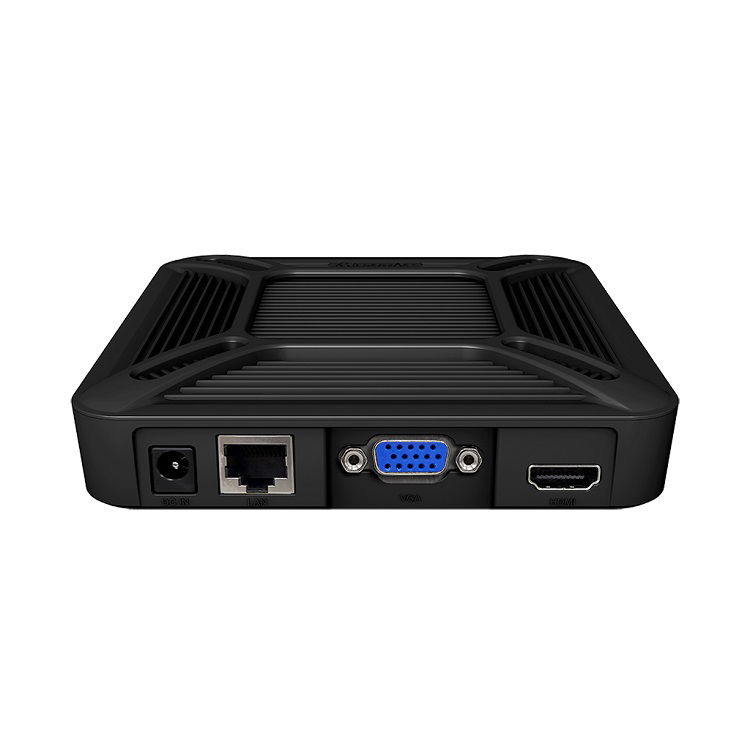

• Video Outputs: VGA x 1, HDMI x 1
• Supported Video Resolution: 1080p 60Hz
• Audio Input: 3.5 mm Stereo Audio Jack x 1
• Audio Output: 3.5 mm Stereo Audio Jack x 1
• RJ-45 1GbE LAN Port: 1
• USB 2.0 Port: 2
• USB 3.0 Port: 1
• Power Supply Unit / Adapter: 36 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Consumption: 4.76 W (36ch full-load), 3.61 W (Power on Idle)
• Operating Temperature: -20°C to 50°C
• Adapter Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions: (HxWxD): 32 x 130 x 130 mm
• Weight: 300 g

• Main Unit
• Quick Installation Guide
• AC Power Adapter
• RJ-45 LAN Cable
• VESA mounting kit
