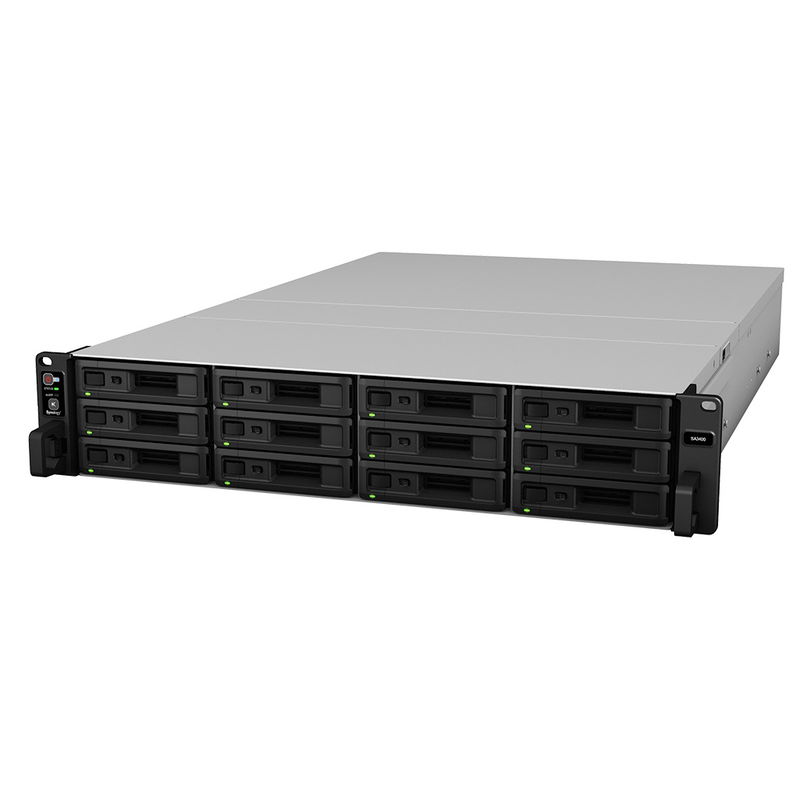

Synology SA Series SA3400 12 Bay Xeon 16GB RAM Diskless 2RU Rack Mount Scalable NAS

Highly scalable NAS meeting extensive data storage needs.

Highly scalable storage with uncompromising performance

• Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS. Built-in 10GbE Ethernet, PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with fast data transmission, fulfilling modern enterprises' needs for excellent performance and massive storage scalability simultaneously.

Small-to-hyperscale flexibility

• Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.

Supercharge network performance effortlessly

• Built-in dual 10GbE Ethernet ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards' expansion.

Btrfs: Next generation storage efficiency

• The Btrfs file system introduces cutting-edge storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

CPU:

• CPU Model: Intel Xeon D-1541
• CPU Architecture: 64-bit
• CPU Frequency: 8-core 2.1 (base) / 2.7 (turbo) GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 16 GB DDR4 ECC RDIMM
• Memory Module Pre-installed: 16 GB (16 GB x 1)
• Total Memory Slots: 4
• Memory Expandable up to: 128 GB (32 GB x 4)

Storage:

• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 96 (RX1217sas) / 180 (RX2417sas)
• Compatible Drive Type: 3.5" SAS HDD, 2.5" SAS HDD, 2.5" SAS SSD, 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only), 108 TB
• Hot Swappable Drive: Yes

External Ports:

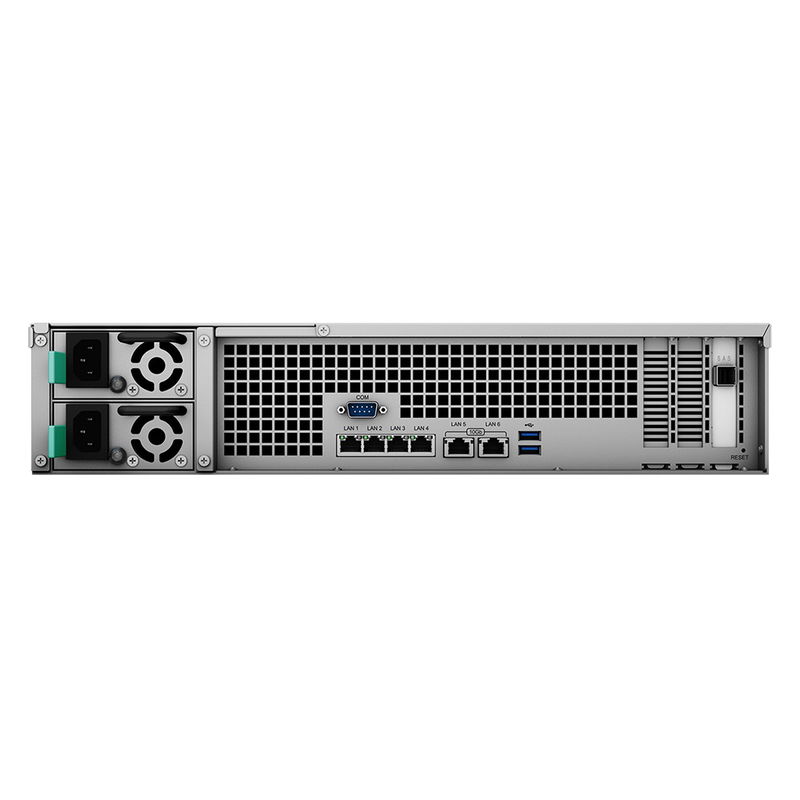

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• Expansion Port: 1

PCIe:

• PCIe Expansion: 2 x Gen3 x8 slots (x8 link)
• Add-In-Card Support : PCIe Network Interface Card

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT_(Notes: exFAT Access is purchased separately in Package Center.)_

Environmental:

• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH

General Specifications:

• System Fan: 80 mm x 80 mm x 4 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Power Recovery: Yes
• Noise Level: 49.8 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 500 W
• Redundant Power Supply: Yes
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 137.17 W (Access), 70.95 W (HDD Hibernation)
• British Thermal Unit: 468.04 BTU/hr (Access), 242.09 BTU/hr (HDD Hibernation)
• Form Factor (RU): 2U
• Rack Installation Support: 4-post 19" rack (Rail kit is sold separately)
• Dimensions (Height x Width x Depth): 88 mm x 482 mm x 724 mm
• Weight: 14.5 kg

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• Quick Installation Guide X 1
