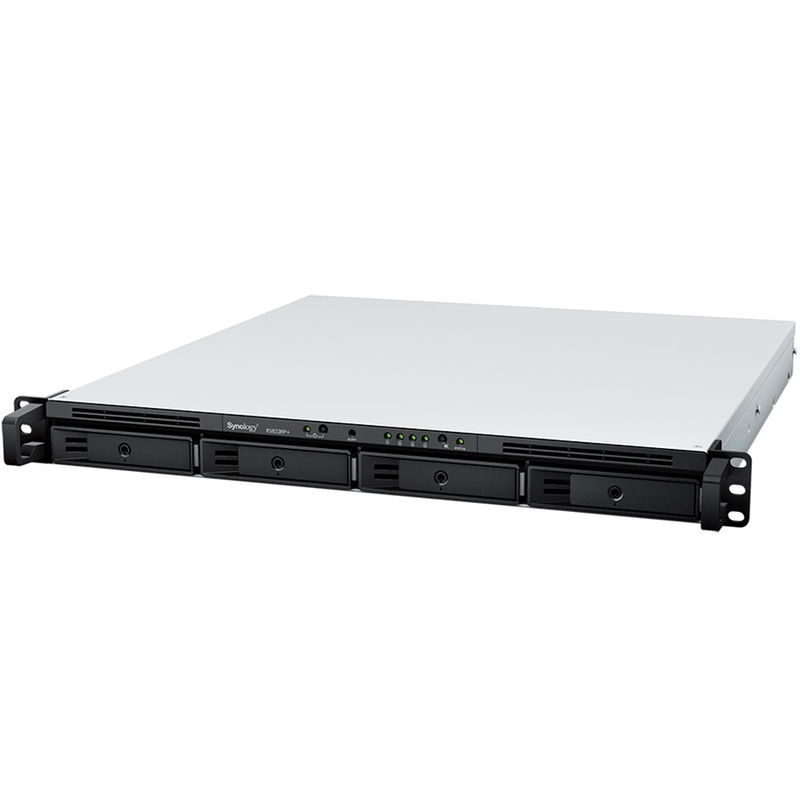

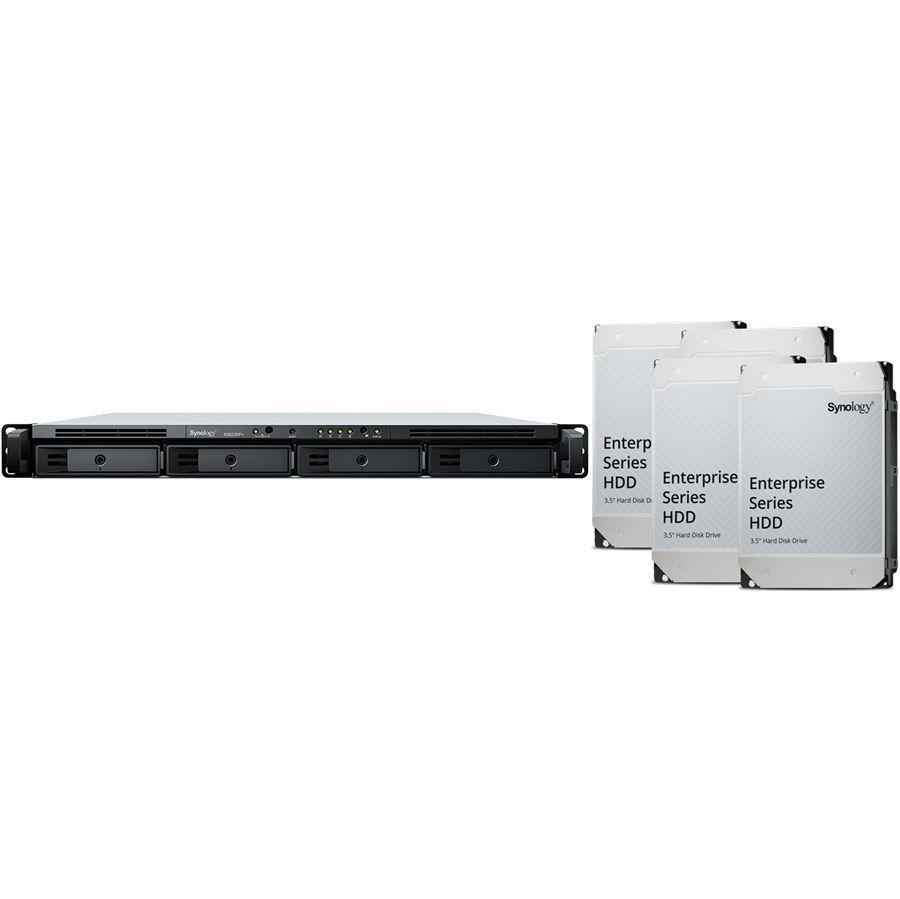

Synology RackStation RS822+ 4 Bay 2GB RAM Rackmount NAS with 4x 8TB Synology Enterprise Series Drives

The compact 1U 4-bay Synology RackStation RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

Built for reliability:
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Room for expansion:
Easily adjust the RS822+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.

All-in-one data management platform:
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

Edge storage for distributed teams:
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations.

Multi-endpoint data protection:
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.

Smart surveillance for small deployments:
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

CPU:

• CPU Model: AMD Ryzen V1500B
• CPU Quantity: 1
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 2.2 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 2 GB DDR4 ECC SODIMM
• Memory Module Pre-installed: 2 GB (2 GB x 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB x 2)

Storage:

• Drive Bays: 4
• Maximum Drive Bays with Expansion Unit: 8 (RX418 x 1)
• Drive Type: 3.5" SATA HDD, 2.5" SATA SSD
• Drive Compatibility: Synology drives only, consult the Synology website for a full list of compatible storage drives.
• Hot Swappable Drive: Yes

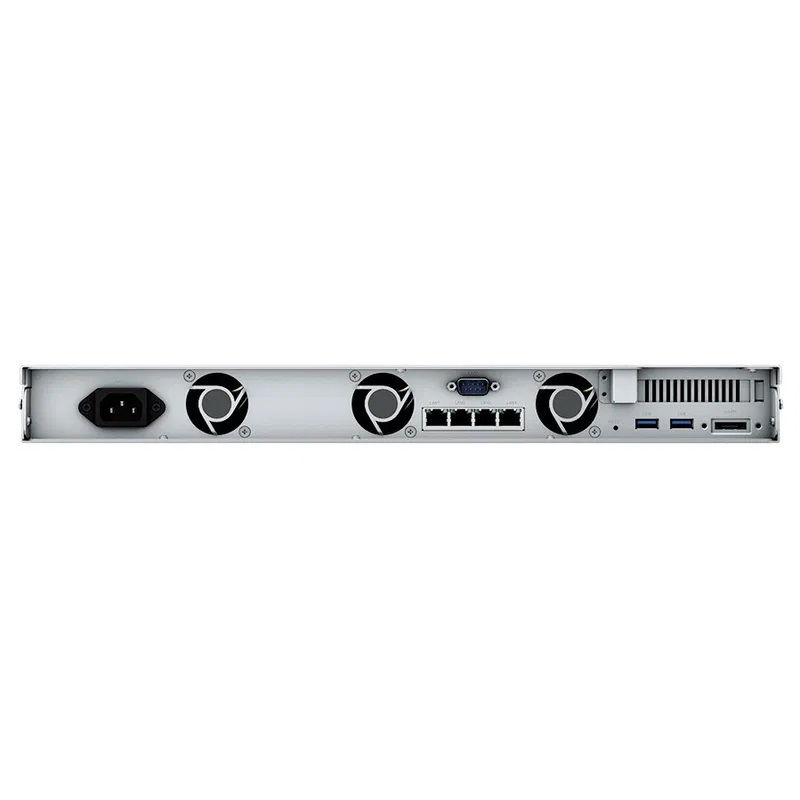

External Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• USB 3.2 Gen 1 Port: 2
• eSATA Port: 1

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

Appearance:

• Form Factor (RU): 1U
• Size (H x W x D): 44 x 480 x 492.6 mm
• Weight: 6.4 kg
• Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)

Others:

• System Fan: 40 x 40 mm x 3 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Noise Level: 27.4 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 150 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 47.69 W (Access), 16.7 W (HDD Hibernation)
• British Thermal Unit 162.83 BTU/hr (Access), 57.02 BTU/hr (HDD Hibernation)

Temperature:

• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH

Certification:

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC
• UL

• Main Unit X 1
• 4x 8TB Synology Enterprise Series Drives
• Accessory Pack X 1
• AC Power Cord X 1
• Quick Installation Guide X 1
