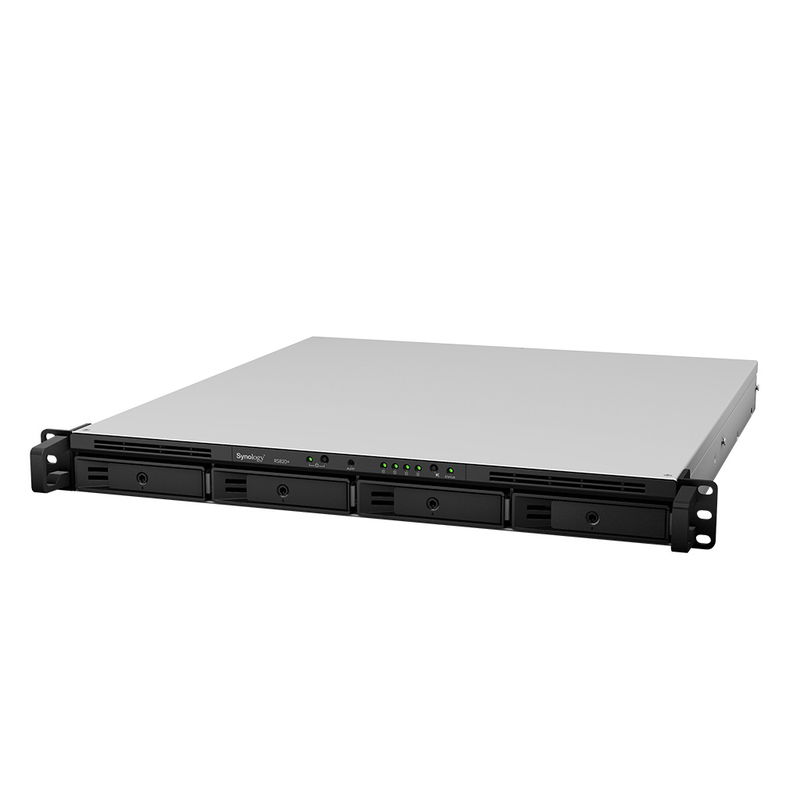

Synology RackStation RS820RP+ 4 Bay 2GB RAM 1RU Rack Mountable NAS with Redundant Power Supply with 4x 4TB Western Digital Red Drives + Installation!

Ideal 1U rackmount NAS for high-performance data management

High-performance storage solution with on-demand scalability

• Synology RackStation RS820RP+ is designed for businesses pursuing an effective and centralized data management. It comes with four drive trays and 1GbE LAN ports and supports an optional 10GbE network or M.2 SSD adapter card, providing fast data transmission and reducing IO latency.

Built for service reliability

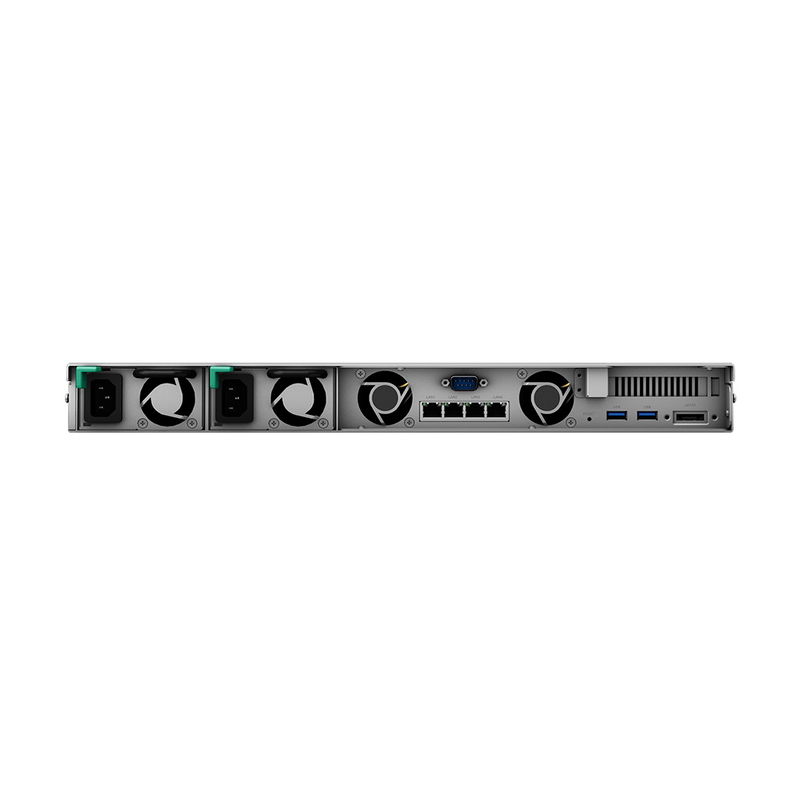

• RS820RP+ comes with four 1GbE LAN ports to support Link Aggregation and failover. Synology High Availability provides a reliable active/passive server cluster, maximizing service uptime. Furthermore, RS820RP+ is equipped with redundant power supplies to achieve service continuity.

Next-generation file system for better data protection

• The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Ultimate Backup Solution

• RS820RP+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Real-time collaboration on your private cloud

• Synology Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

CPU:

• CPU Model: Intel Atom C3538
• CPU Architecture: 64-bit
• CPU Frequency: Quad Core 2.1 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 2 GB DDR4
• Total Memory Slots: 1
• Memory Expandable up to: 18 GB (2GB + 16 GB)

Storage:

• Drive Bays: 4
• Maximum Drive Bays with Expansion Unit: 8
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 64 TB (16 TB drive x 4) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 128 TB (64 TB + 16 TB drive x 4) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 108 TB
• Hot Swappable Drive: Yes
• Installed: 4x 4TB Western Digital Red Drives

External Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• eSATA Port: 1

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (black, x4 link)
• Add-In-Card Support : PCIe Network Interface Card, M2D18 - Dual M.2 SATA/NVMe SSD adapter card for SSD cache

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

Environmental:

• Operating Temperature 0°C to 35°C (32°F to 95°F)
• Storage Temperature -20°C to 60°C (-5°F to 140°F)
• Relative Humidity 5% to 95% RH

General Specifications:

• Form Factor (RU): 1U
• Rack Installation Support: 4-post 19" rack_(Synology Rail Kit - RKM114/RKS1317, The rail kit is sold separately)_
• System Fan: 40 mm x 40 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Noise Level: 39.9 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 150 W
• Redundant Power Supply: Yes
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 38.88 W (Access), 22.17 W (HDD Hibernation)
• British Thermal Unit: 132.75 BTU/hr (Access), 75.70 BTU/hr (HDD Hibernation)
• Dimensions (Height x Width x Depth): 44 mm x 480 mm x 518.6 mm
• Weight: 7.96 kg

• Main Unit with 4x 4TB WD Red Drives pre-installed
• Accessory Pack
• 2x AC Power Cord
• Quick Installation Guide
