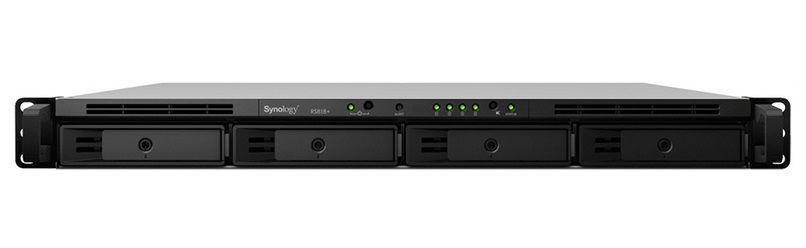

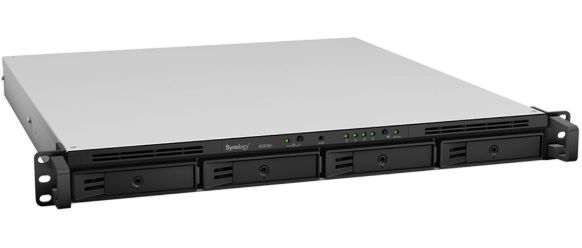

Synology RackStation RS818+ 4 Bay 2GB RAM Diskless 1RU Rack Mountable NAS

Synology RackStation RS818+ comes with a quad-core processor with the AES-NI hardware encryption engine, quad 1GbE LAN ports, and optional 10GbE NIC support. It provides both high performance and a scalable storage solution for sharing files across different platforms, centralizing data backups, and protecting critical assets.

Powerful and scalable storage solution

• Synology RackStation RS818+ comes with a quad-core processor with the AES-NI hardware encryption engine, quad 1GbE LAN ports, and optional 10GbE NIC support. It provides both high performance and a scalable storage solution for sharing files across different platforms, centralizing data backups, and protecting critical assets.

Fully certified storage virtualization solutions

• Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Empower your storage with speedier performance

• RS818+/RS818RP+ allows network and memory upgrades to boost system performance.

CPU

• CPU Model: Intel Atom C2538 64-bit
• CPU Frequency: Quad Core 2.4 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory

• System Memory: 2 GB DDR3
• Memory Module Pre-installed: 2GB (1 x 2GB)
• Total Memory Slots: 2
• Memory Expandable up to: 16 GB (8 GB x 2)

Storage

• Drive Bay(s): 4 Bays
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD,
• Maximum Internal Raw Capacity: 48 TB (12 TB drive x 4) (Capacity may vary by RAID types)
• Hot Swappable Drive: Yes

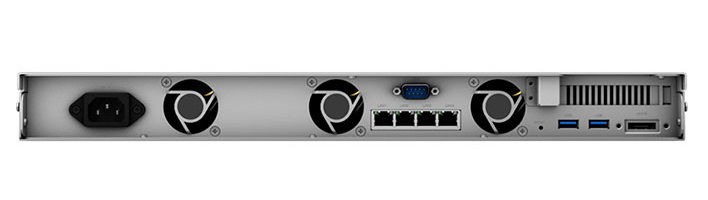

Ports

• RJ-45: 4 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• eSATA Port 1

File System

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT3, FAT, NTFS, HFS+, exFAT (exFAT Access is purchased separately in Package Center)

Other Features

• System Fan: 40 mm x 40 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Noise Level: 28.5 dB(A)
• Scheduled Power On/Off: Yes
• Wake on LAN/WAN: Yes
• Power Supply Unit / Adapter: 1 x 100W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 45.28 W (Access), 20.81 W (HDD Hibernation)
• Redundant Power Supply: No

General Specifications

• Operating Temperature: 5°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions (H x W x D): 44 x 480 x 492.6 mm
• Weight (approx.): 6.21 kg

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• Quick Installation Guide X 1
