Key Details:
- Model: RS4017xs+
- Part #: VT00064
- Warranty: 5 Years
- Brand: Synology
Ask Our Experts:

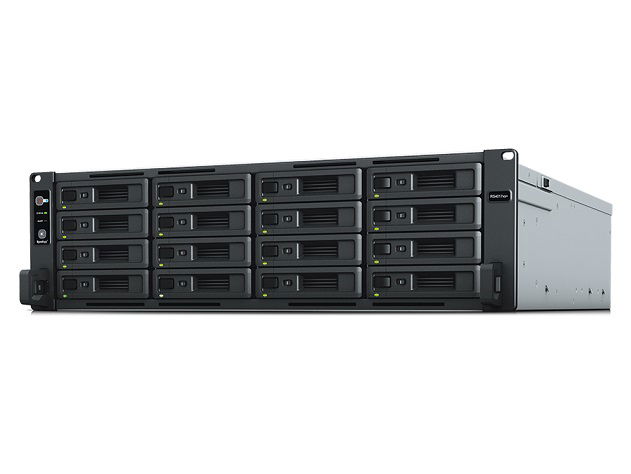

Synology RackStation RS4017xs+ 16 Bay 8GB RAM Diskless 3RU Rack Mountable NAS
Highly scalable NAS designed for virtualization, data-intensive applications and service continuity for large scale businesses
Powerful storage solution
- RS4017xs+ provides rock-solid storage solution with ultra-high performance at over 844,000 sequential read IOPS and 5,900 MB/s sequential read throughput. DDR4 ECC UDIMM and 10GbE connectivity guarantees data accuracy and performance for mission-critical environment.
Robust scalability and reliability
- Storage capacity of RS4017xs+ can be further scaled up when connected to two Synology Expansion Unit RX1217 or RX1217RP, providing a total drive number of 40 without disrupting host services
Fully certified storage virtualization solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
CPU
- CPU Model: Intel Xeon D-1541 64-bit
- CPU Frequency: 8-Core 2.1 (base) / 2.7 (turbo) GHz
- Hardware Encryption Engine (AES-NI): Yes
Memory
- System Memory: 8 GB DDR4 ECC UDIMM
- Memory Module Pre-installed: 8GB (1 x 8GB)
- Total Memory Slots: 4
- Memory Expandable up to: 64 GB (16 GB x 4)
Storage
- Drive Bay(s): 16 Bays
- Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Capacity: 192 TB (12 TB drive x 16) (Capacity may vary by RAID types)
- Hot Swappable Drive: Yes

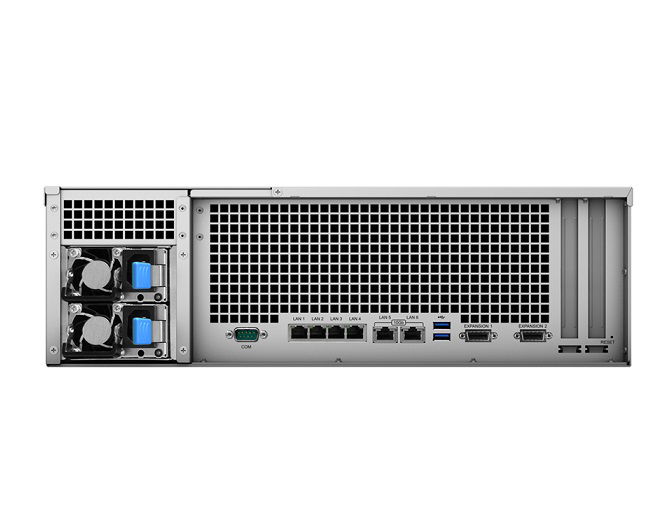

Ports
- RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
- RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.0 Port: 2
- Expansion Port: 2
File System
- Internal Drives: Btrfs, EXT4
- External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT (exFAT Access is purchased separately in Package Center)
Other Features
- System Fan: 80 mm x 80 mm x 4 pcs
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
- Easy Replacement System Fan: Yes
- Power Recovery: Yes
- Noise Level: 44.7 dB(A)
- Scheduled Power On/Off: Yes
- Wake on LAN/WAN: Yes
- Power Supply Unit / Adapter: 2 x 800W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption: 136.4 W (Access), 69.2 W (HDD Hibernation)
- Redundant Power Supply: Yes
General Specifications
- Operating Temperature: 5°C to 35°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 5% to 95% RH
- Dimensions (H x W x D): 132.3 x 482 x 656.5 mm
- Weight: 17.4 kg
