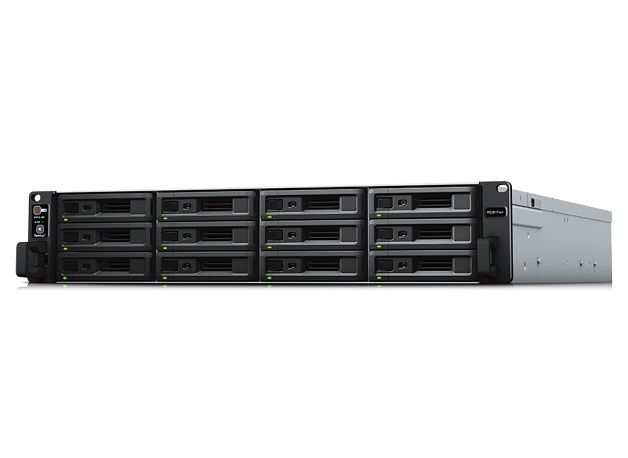

Synology RS3617XS+ 12 Bay Rack NAS with 12x 8TB Western Digital Red Pro Drives + Installation!

Built to support data-intensive applications and demanding workloads

Powerful storage solution

• RS3617xs+ provides a rock-solid and high performing storage solution with over 693,000 IOPS and 5,200 MB/s sequential read throughput1. DDR4 ECC UDIMM guarantees data accuracy and performance for mission-critical environments.

Complete iSCSI and virtualization solutions

• Synology iSCSI storage supports most virtualization solutions including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.

Next-generation file system for better data protection

• The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

CPU:

• CPU Model: Intel Xeon D-1531 64-bit
• CPU Frequency: 6-Core 2.2 (base) / 2.7 (turbo) GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 8 GB DDR4 ECC UDIMM. Memory Expandable up to 64 GB (16 GB x 4)

Storage:

• Drive Bay(s): 12 Bays
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
• Installed: 12x 8TB Western Digital Red Pro Drives

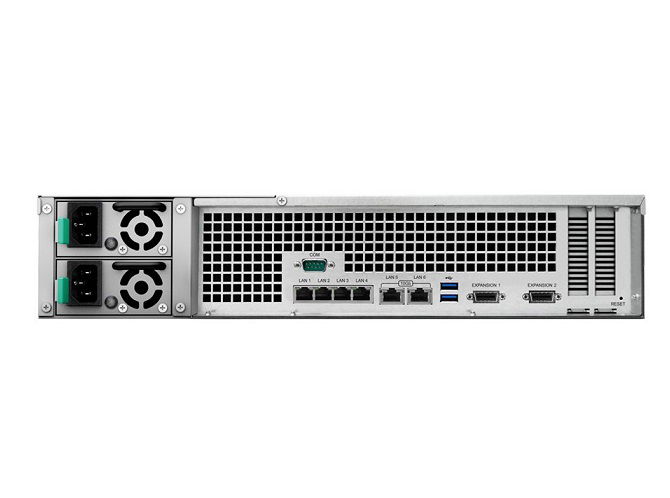

Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• Expansion Port: 2

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+

Other Features:

• System Fan: 80 mm x 80 mm x 4 pcs
• Wake on LAN: Yes
• Power Recovery: Yes
• Noise Level: 50.2 dB(A)
• Power Supply Unit / Adapter: 2 X 500W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 HZ, Single Phase
• Power Consumption: 133.9 W (Access), 69.18 W (HDD Hibernation)

General Specifications:

• Operating Temperature: 5°C to 35°C (40°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH
• Dimensions (H x W x D): 88 x 430.5 x 692 mm
• Weight: 14.5 kg

• Main Unit with 12x 8TB WD Red Pro Drives pre-installed
