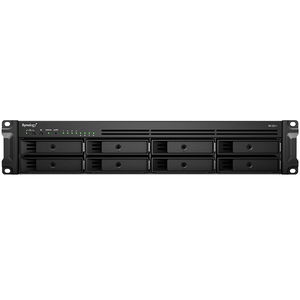

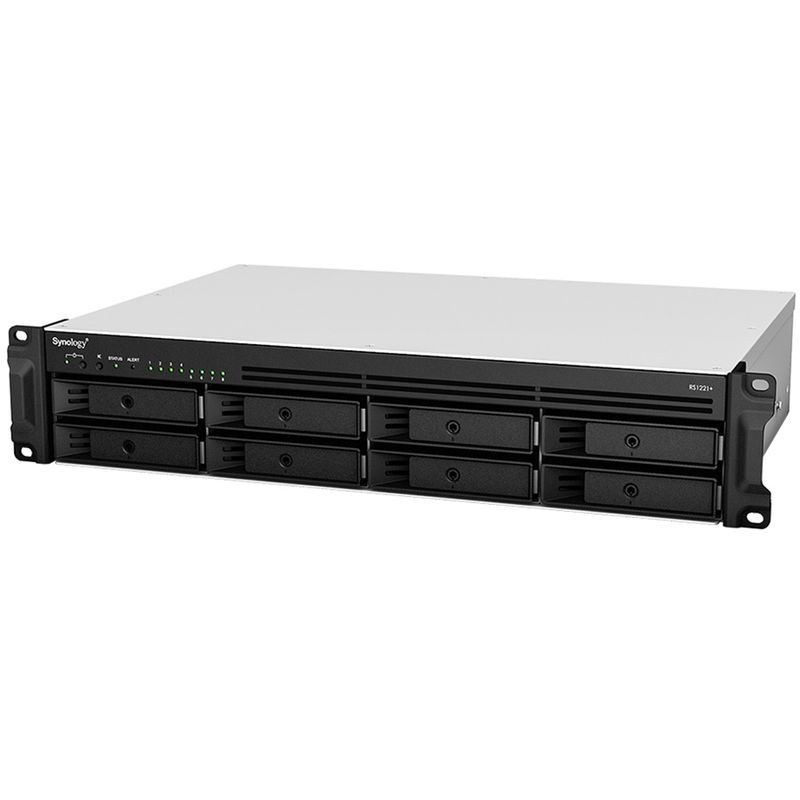

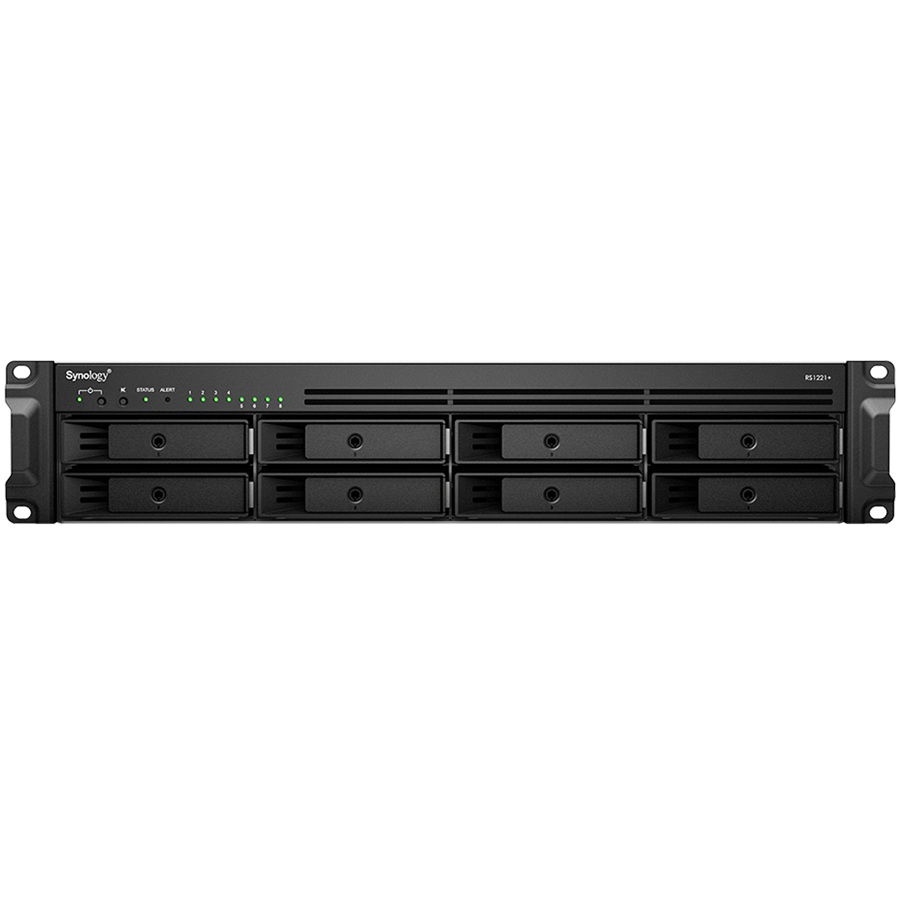

Synology RackStation RS1221+ 8 Bay 4GB RAM Diskless 2RU Rackmount NAS

A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.

A compact design for space efficiency:
The RS1221+ is designed to help you save space in compact deployments. At only 30 centimetres, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures.

Redundant power:
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.

Maximise service availability:
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimise service downtime.

Data integrity and protection:
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.

High performance storage for anything:
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.

CPU:

• CPU Model: AMD Ryzen V1500B
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 2.2 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 4 GB DDR4 ECC SODIMM
• Memory Module Pre-installed: 4 GB (4 GB x 1)
• Total Memory Slots: 2
• Memory Expandable up to: 32 GB (16 GB x 2)

Storage:

• Drive Bays: 8
• Maximum Drive Bays with_Optional_Expansion Unit: 12
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Single Volume Size: 108 TB
• Hot Swappable Drive: Yes

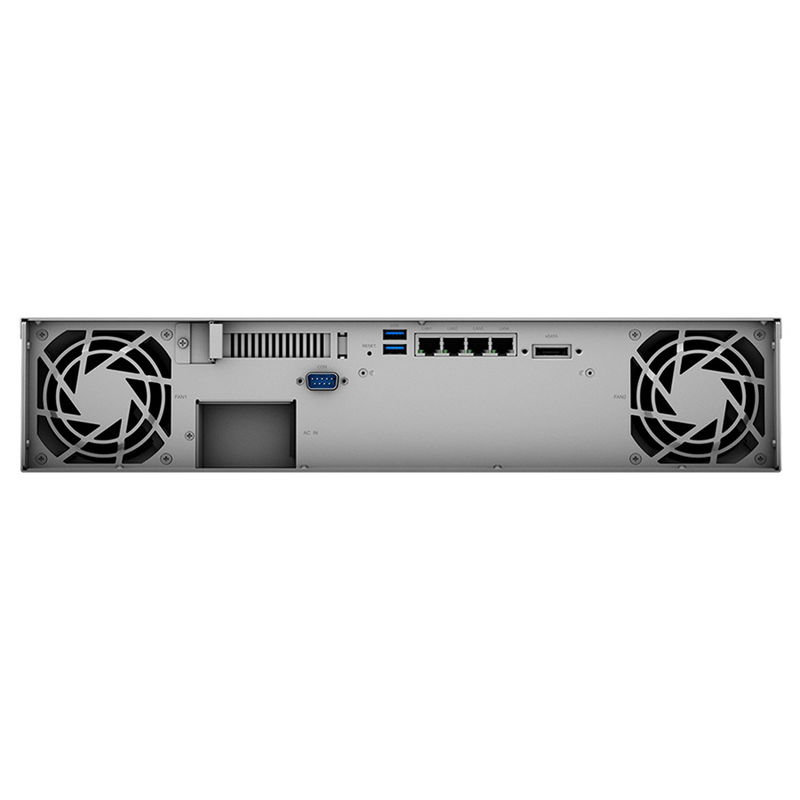

External Ports:

• 4x RJ-45 1GbE LAN Port (with Link Aggregation / Failover support)
• 2x USB 3.2 Gen 1 Port
• 1x eSATA Port

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT_(Note: exFAT Access is purchased separately in Synology Package Center.)_

General Specifications:

• Form Factor (RU): 2U
• Rack Installation Support: 2-post 19" rack (direct mounting), 4-post 19" rack (Synology Rail Kit - RKM114/RKS1317), sold separately)
• System Fan: 80 mm x 80 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Noise Level: 25.2 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 250 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 49.89 W (Access) 22.64 W (HDD Hibernation)
• British Thermal Unit: 170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation)
• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions (HxWxD): 88 mm x 482 mm x 306.6 mm
• Weight: 6.9 kg

• 1x Main Unit
• 1x Accessory Pack
• 1x AC Power Cord
• 1x C13 to C14 power cord
• 1x Quick Installation Guide
