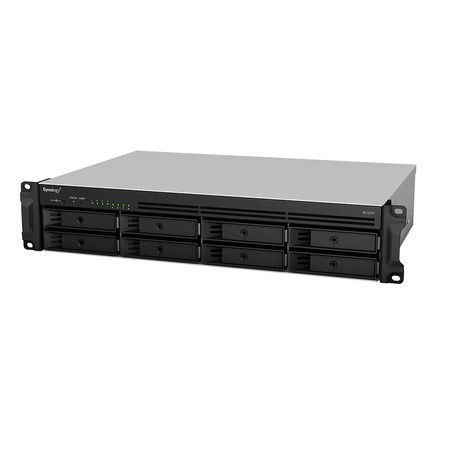

Synology RackStation RS1219+ 8 Bay 2GB RAM 2RU Rack Mountable NAS with 8x 8TB Western Digital Red Pro Drives + Installation!

Synology's compact 2U, 8-bay rackmount for small- and medium-sized businesses.

Scalable storage server that grows with your business

• RS1219+ is Synology’s brand new 2U 8-bay NAS that provides storage scalability and is perfect for small- to medium-sized businesses. Further boost storage performance with the optional M.2 SSD cache or enhance network speeds by adding a 10 GbE NIC. RS1219+ is ideal to serve as a backup target for protecting your critical assets or a centralized file server for sharing files across different platforms.

Synology's most economical and space-saving rackmount during server deployment

• RS1219+ supports up to 12 drives when connecting with one RX418 expansion unit. Since both RS1219+ and RX418 are only 12 inches in depth, they can fit perfectly in a 2-post or wall mount rack.

Ultimate file management and sharing

• File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, RS1219+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

CPU:

• CPU Model: Intel Atom C2538
• CPU Architecture: 64-bit
• CPU Frequency: Quad Core 2.4 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 2 GB DDR3
• Memory Module Pre-installed: 2 GB (2 GB x 1)
• Total Memory Slots: 2
• Memory Expandable up to: 16 GB (8 GB x 2)

Storage:

• Drive Bays: 8
• Maximum Drive Bays with Expansion Unit 12
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 128 TB (16 TB drive x 8) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 192 TB (128 TB + 16 TB drive x 4) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 108 TB
• Hot Swappable Drive: Yes
• Installed: 8x 8TB Western Digital Red Pro Drives

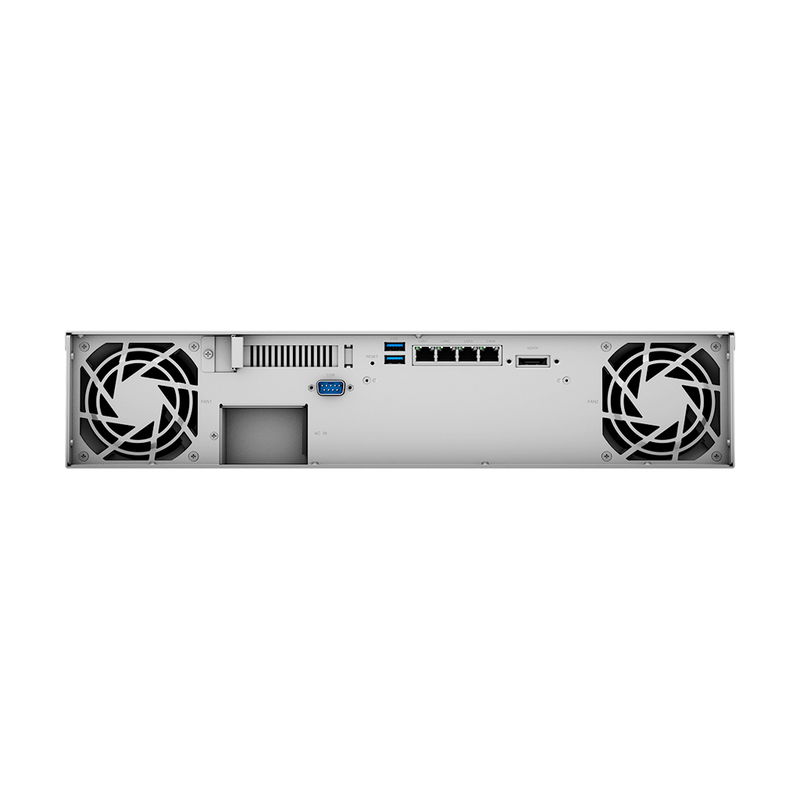

External Ports:

• 4x RJ-45 1GbE LAN Port (with Link Aggregation / Failover support)
• 2x USB 3.0 Port
• 1x eSATA Port

PCIe:

• PCIe Expansion: 1 x Gen2 x8 slot (x4 link)
• Add-In-Card Support : PCIe Network Interface Card, M2D18 Dual M.2 SATA SSD adapter card for SSD cache (not included)

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT_(Note: exFAT Access is purchased separately in Package Center.)_

General Specifications:

• Form Factor (RU): 2U
• Rack Installation Support: 2-post 19" rack (direct mounting), 4-post 19" rack (Synology Rail Kit RKS1317, sold separately)
• System Fan: 80 mm x 80 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Power Recovery: Yes
• Noise Level: 36.8 dB dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 250 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 60.31 W (Access), 29.04 W (HDD Hibernation)
• British Thermal Unit: 205.92 BTU/hr (Access), 99.15 BTU/hr (HDD Hibernation)
• Operating Temperature: 5°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions (HxWxD): 88 x 481.9 x 306.6 mm
• Weight: 6.9 kg

• Main Unit with 8x 8TB WD Red Pro Drives pre-installed
• Accessory Pack
• AC Power Cord
• C13 to C14 power cord
• Quick Installation Guide
