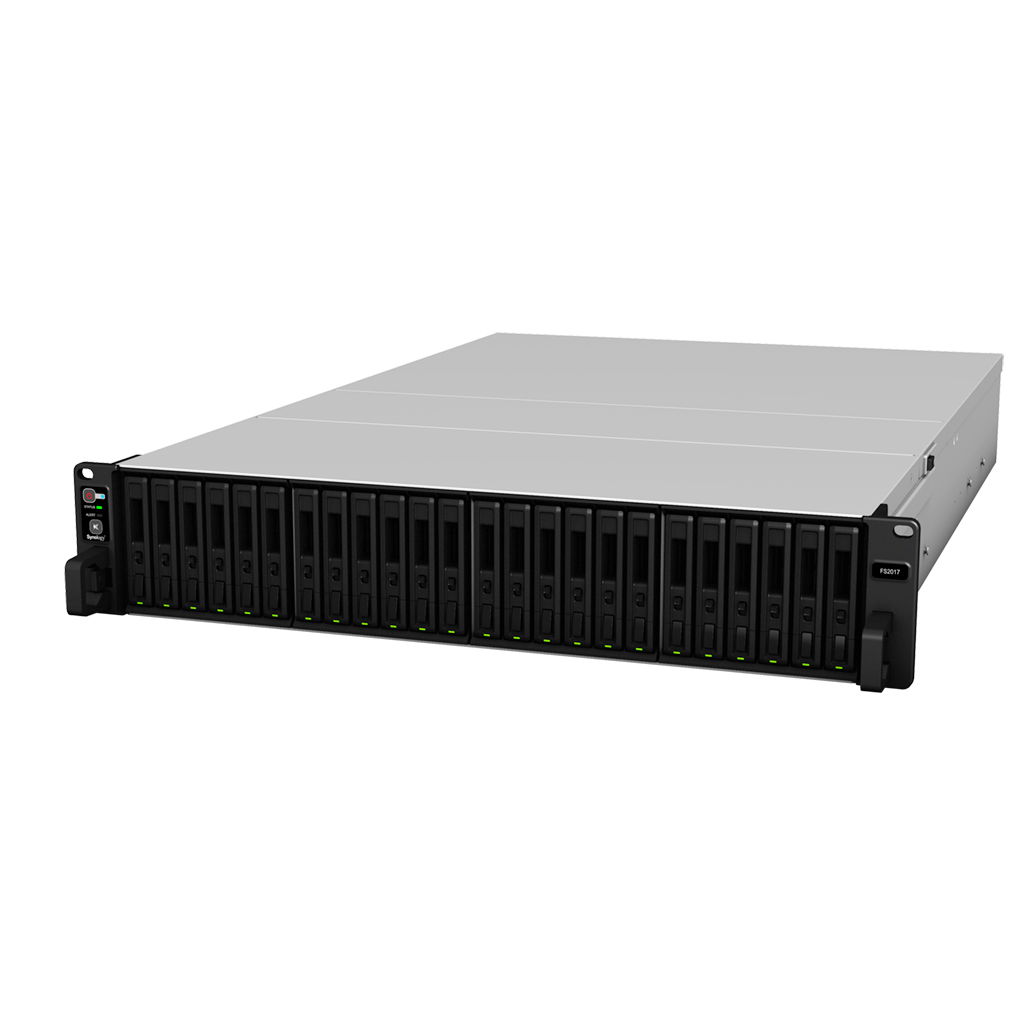

Synology FlashStation FS2017 24 Bay Xeon 16GB RAM 2RU Rack Mountable NAS with Redundant Power Supply

Synology FlashStation FS2017 is a high performance 24-bay rackmount NAS designed for 2.5" SSDs. FS2017 brings easy to manage, lightning-fast storage, perfect for video post-productions, mail servers, virtualization environments, and database applications.

RAID F1

• Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.

Fast and reliable networking

• With the multi-LAN design, FS2017 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, an optional Ethernet add-in card can be installed into the PCIe slot, providing fast data transmission of 40GbE/25GbE/10GbE.

Fully certified storage virtualization solutions

• Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Processor:

• CPU Model: Intel Xeon D-1541
• CPU Architecture: 64-bit
• CPU Frequency: 8-Core 2.1 (base) / 2.7 (turbo) GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 16 GB DDR4 ECC RDIMM
• Memory Module Pre-installed: 16 GB (16 GB x 1)
• Total Memory Slots: 4
• Memory Expandable up to: 128 GB (32 GB x 4)

Storage:

• Drive Bays: 24
• Maximum Drive Bays with Expansion Unit: 48 (RX1217sas) / 72 (RX2417sas)
• Compatible Drive Type: 2.5" SAS HDD, 2.5" SAS SSD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 552.96 TB (184.32 TB + 7.68 TB drive x 48) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only), 108 TB
• Hot Swappable Drive: Yes

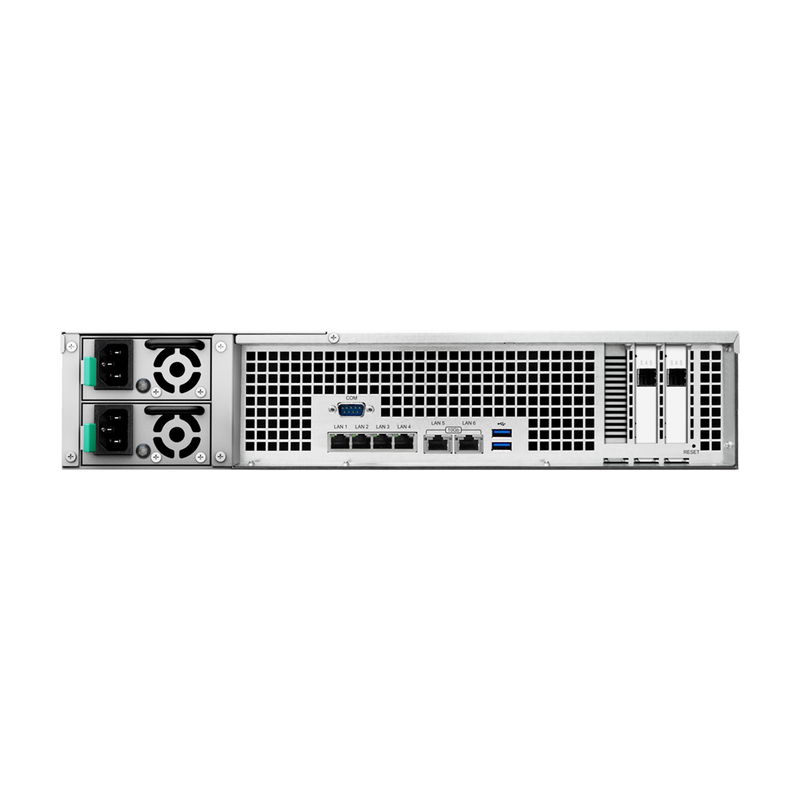

External Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• Expansion Port: 1

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (x8 link)
• Add-In-Card Support: PCIe Network Interface Card, M2D18 - Dual M.2 SATA SSD adapter card for SSD cache

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

General Specifications:

• Form Factor (RU): 2U
• Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKS1317 - rail kit is sold separately)
• System Fan: 80 mm x 80 mm x 4 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Power Recovery: Yes
• Noise Level: 57 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN Yes
• Power Supply Unit / Adapter: 500 W
• Redundant Power Supply: Yes
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 313 W (Access), 126 W (HDD Hibernation)
• British Thermal Unit: 1,068 BTU/hr (Access), 430 BTU/hr (HDD Hibernation)
• Operating Temperature: 5°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions (HxWxD): 88 x 482 x 724 mm
• Weight: 14.9 kg

• 1x Main Unit
• 1x Accessory Pack
• 2x AC Power Cord
• 1x Quick Installation Guide
