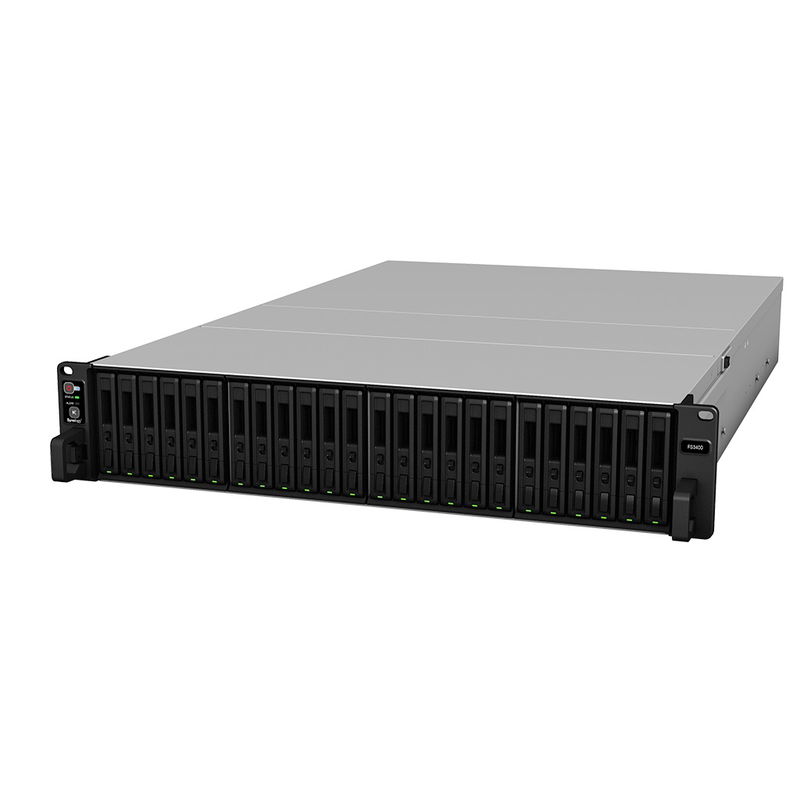

Synology FlashStation FS3400 24 Bay Xeon 16GB RAM Diskless 2RU Rack Mount NAS

Fueling IT transformation for small and midsize businesses.

Lightning speed with lower TCO

• Featuring an 8-core CPU and 16GB ECC RDIMM memory, FS3400 provides more than 137,000 4K random write IOPS, meeting the needs for real-time analytics, online transaction processing, and mission-critical database services.1 With built-in 10GbE Ethernet, PCIe expansion, and the support of various SAS and SATA drives, FS3400 delivers flexible and economical all-flash server deployment on demand.

RAID F1

• Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.

Ultimate Backup Solution

• FS3400 integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

CPU:

• CPU Model: Intel Xeon D-1541
• CPU Architecture: 64-bit
• CPU Frequency: 8-core 2.1 (base) / 2.7 (turbo) GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 16 GB DDR4 ECC RDIMM
• Memory Module Pre-installed: 16 GB (16 GB x 1)
• Total Memory Slots: 4
• Memory Expandable up to: 128 GB (32 GB x 4)

Storage:

• Drive Bays: 24
• Maximum Drive Bays with Expansion Unit: 48 (RX1217sas) / 72 (RX2417sas)
• Compatible Drive Type: 2.5" SAS HDD, 2.5" SAS SSD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 368.44 TB (15.36 TB drive x 24) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 1,105.92 TB (368.44 TB + 15.36 TB drive x 48) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only), 108 TB
• Hot Swappable Drive: Yes

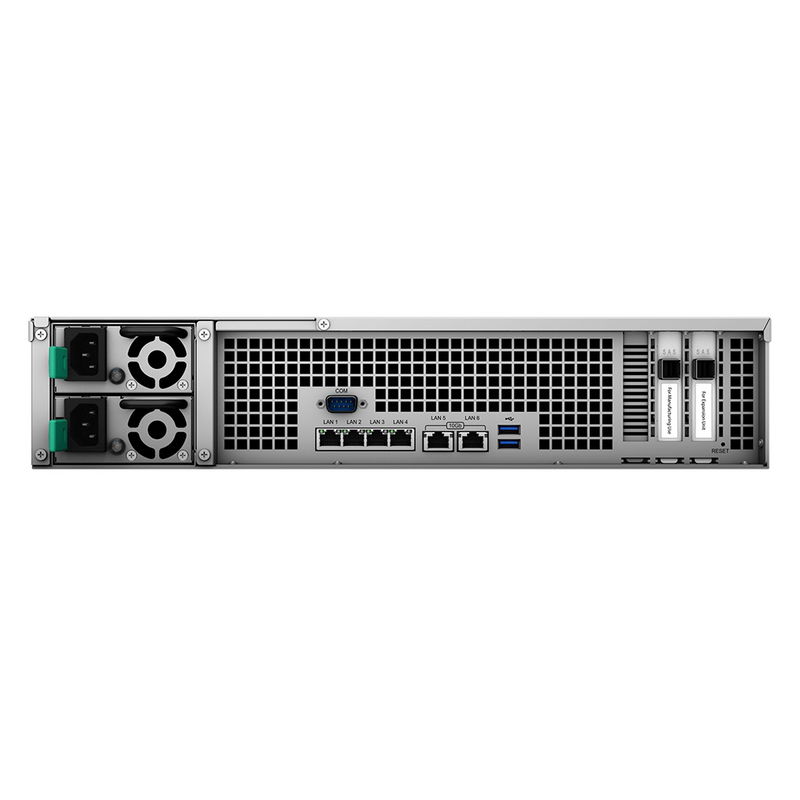

External Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• Expansion Port: 1

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (x8 link)
• Add-In-Card Support : PCIe Network Interface Card

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT_(Notes: exFAT Access is purchased separately in Package Center.)_

Environmental:

• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH

General Specifications:

• System Fan: 80 mm x 80 mm x 4 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Power Recovery: Yes
• Noise Level: 57 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 500 W
• Redundant Power Supply: Yes
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 313.84 W (Access), 125.77 W (HDD Hibernation)
• British Thermal Unit: 1,070.86 BTU/hr (Access), 429.15 BTU/hr (HDD Hibernation)
• Form Factor (RU): 2U
• Rack Installation Support: 4-post 19" rack (Rail kit is sold separately)
• Dimensions (Height x Width x Depth): 88 mm x 482 mm x 724 mm
• Weight: 14.9 kg

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• Quick Installation Guide X 1
