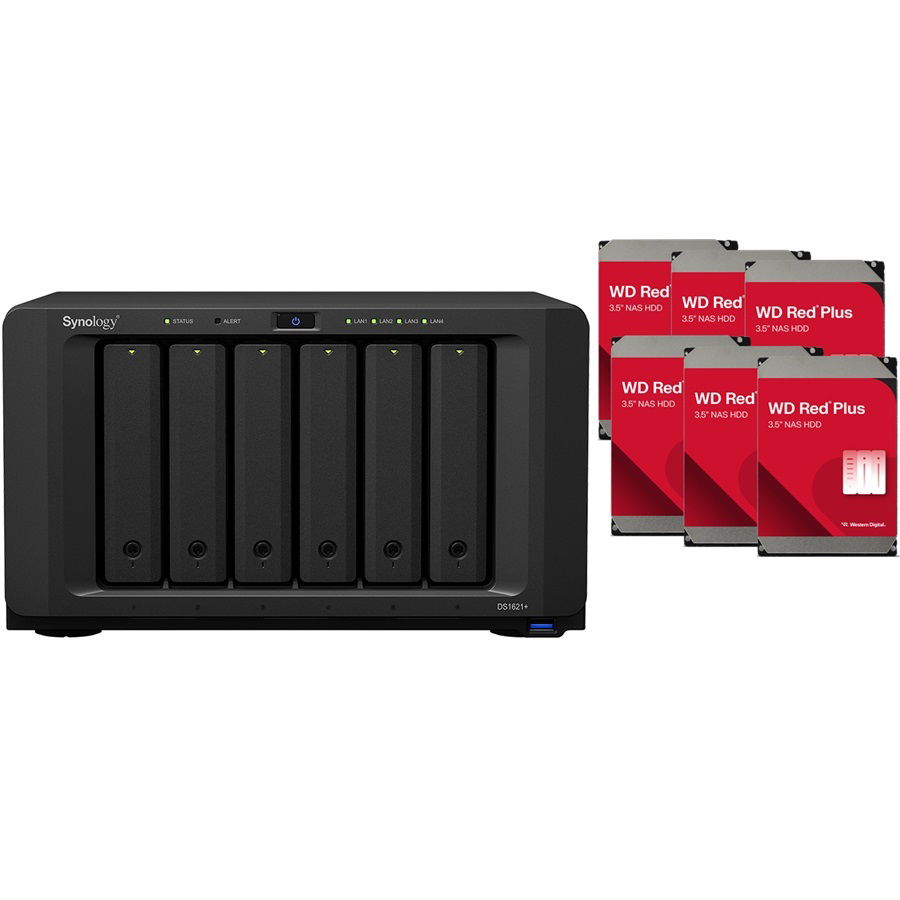

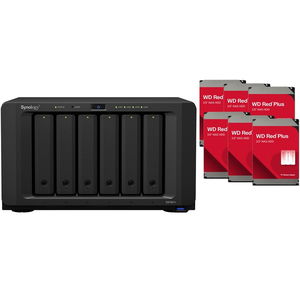

Synology DiskStation DS1621+ 6 Bay 4GB RAM NAS with 6x 4TB Western Digital Red Drives

Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.

Faster in everything:
The DS1621+ is faster in just about everything you can imagine. Get things done quicker through Synology Drive and faster and smoother photos management with Synology Moments.

Turbocharge and supersize it:
Upgrade your DS1621+ to match your data requirements, whether it is for faster networking or for higher storage capacity.

Ultimate file management and sharing:
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1621+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Fully certified storage virtualization solutions:
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Ultimate Backup Solution:
DS1621+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

CPU:

• CPU Model: AMD Ryzen V1500B
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 2.2 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 4 GB DDR4 ECC SODIMM
• Memory Module Pre-installed: 4 GB (4 GB x 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB x 2)

Storage:

• Drive Bays: 6
• Maximum Drive Bays with Expansion Unit: 16 (DX517 x 2)
• M.2 Drive Slots: 2 (NVMe)
• Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD, M.2 2280 NVMe SSD
• Drive Compatibility: Synology drives only, consult the Synology website for a full list of compatible storage drives.
• Maximum Single Volume Size: 108 TB
• Hot Swappable Drive: Yes

External Ports:

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• USB 3.2 Gen 1 Port: 3
• eSATA Port: 2

PCIe:

• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT (exFAT Access is purchased separately in Package Centre)

Power:

• Power Recovery: Yes
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 250 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 51.22 W (Access), 25.27 W (HDD Hibernation)

Environmental:

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH

General Specifications:

• System Fan 92 mm x 92 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Brightness Adjustable Front LED Indicators: Yes
• Noise Level: 25.2 dB(A)
• British Thermal Unit: 174.77 BTU/hr (Access), 86.22 BTU/hr (HDD Hibernation)
• Dimensions (H x W x D): 166 mm x 282 mm x 243 mm
• Weight (approx.) 5.1 kg

• 1x Main Unit
• 6x 4TB Western Digital Red Drive
• 1x Accessory Pack
• 1x AC Power Cord
• 1x RJ-45 LAN Cable
• 1x Quick Installation Guide
