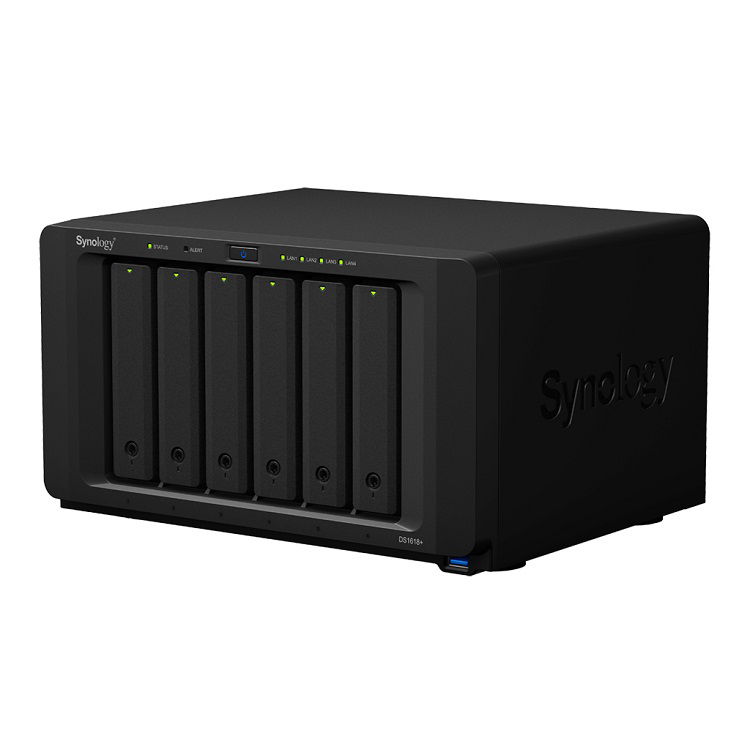

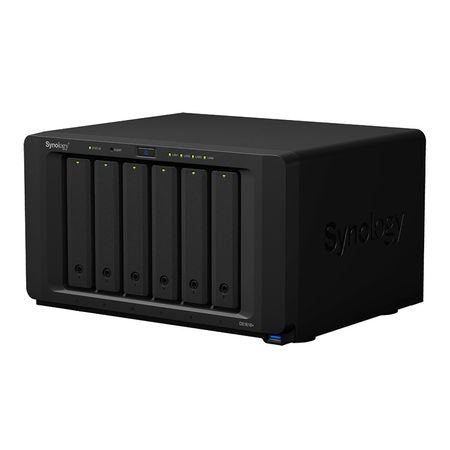

Synology DiskStation DS1618+ 6 Bay 4GB RAM NAS with 6x 8TB Western Digital Red Drives + Installation!

DS1618+ is a 6-bay NAS that provides storage scalability perfect for tech enthusiasts and small- to medium-sized businesses by effortlessly handling workloads.

Supercharge your storage with speedy performance

• DS1618+ comes with a PCIe expansion slot to support add-in cards. Install an optional dual M.2 SSD card for high-IOPS system caching or a 10GbE NIC for ultra-fast data transmission.

Ultimate file management and sharing

• File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Real-time collaboration on your private cloud

• Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Ultimate Backup Solution

• DS1618+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

Btrfs: Next generation storage efficiency

• Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses.

Fully certified storage virtualization solutions

• Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

CPU

• CPU Model: Intel Atom C3538
• CPU Architecture: 64-bit
• CPU Frequency: Quad Core 2.1 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory

• System Memory: 4 GB DDR4
• Memory Module Pre-installed: 4GB (1 x 4GB)
• Total Memory Slots: 2
• Memory Expandable up to: 32 GB (16 GB x 2)

Storage

• Drive Bay(s): 6 Bays
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 72 TB (12 TB drive x 6) (Capacity may vary by RAID types)
• Hot Swappable Drive: Yes
• Installed: 6x 8TB Western Digital Red Drives

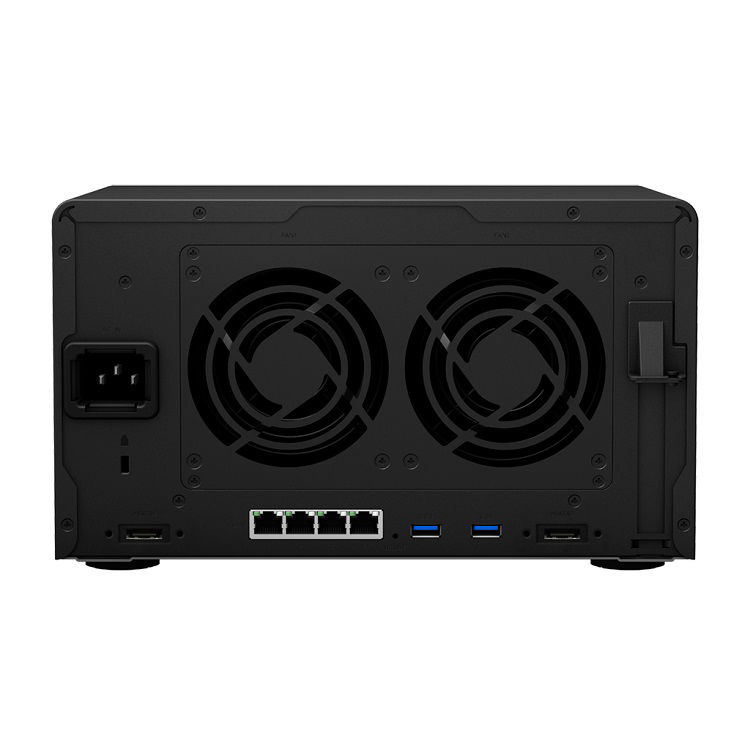

Ports

• RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
• USB 3.0 Port: 3
• eSATA Port: 2
• PCIe Expansion: 1 x Gen3 x8 slot (black, x4 link)

File System

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

Other Features

• System Fan: 92 mm x 92 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Brightness adjustable front LED indicators: Yes
• Power Recovery: Yes
• Noise Level: 23.7 dB(A)
• Scheduled Power On/Off: Yes
• Wake on LAN: Yes
• Power Recovery: Yes
• Noise Level: 22.2 dB(A)
• Power Supply Unit / Adapter: 250W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 HZ, Single Phase
• Power Consumption: 56.86 W (Access) , 25.76 W (System Hibernation)

General Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH
• Dimensions (H x W x D): 166 x 282 x 243 mm
• Weight: 5.05 kg

• 1x Main Unit with 6x 8TB WD Red Drives pre-installed
• 1x Accessory Pack
• 1x AC Power Cord
• 2x RJ-45 LAN Cable
• 1x Quick Installation Guide
