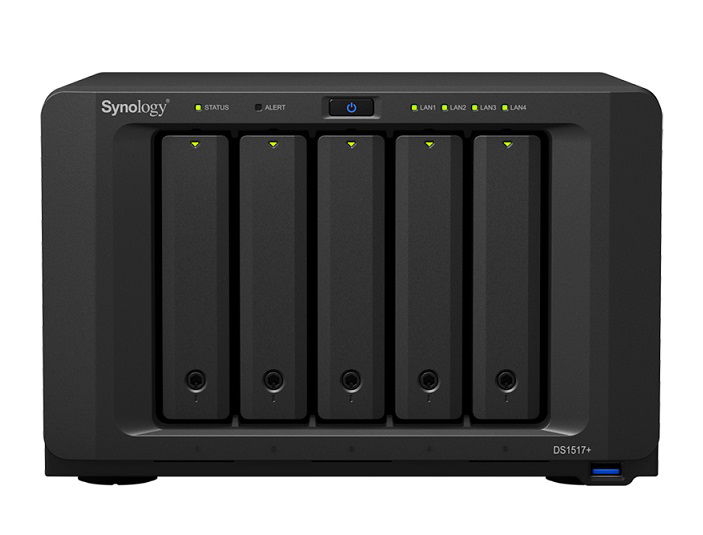

Synology DS1517+ 5 Bay 2GB RAM Diskless NAS

Synology DiskStation DS1517+ is a 5-bay NAS powered by a quad-core CPU with AES-NI hardware encryption engine. Coming with quad 1GbE LAN ports, it can be installed with a 10GbE network interface card (NIC) or a dual M.2 SSD adapter card, thereby enhancing network speeds or boosting performance with SSD cache.

Next-generation file system for effective data protection

• The Btrfs file system introduces the most advanced storage technologies to prevent data corruption and reduce maintenance overhead with optimized snapshots. It ensures high-level data integrity, while taking advantage of flexible, efficient data protection and recovery tools.

Ultimate file management and sharing

• The web-based File Station is a user-friendly management tool built to allow intuitive, drag-and-drop operation without any complex setup required on your Mac or PC. The advanced search and filtering tools enable easy organization and sharing that entails just a link. Compatible with SMB, FTP, AFP, NFS, and WebDAV, File Station suits all environments.

Fully certified storage virtualization solutions

• Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

CPU:

• CPU Model: Intel Atom C2538
• CPU Frequency: Quad Core 2.4 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 2 GB DDR3. Memory Expandable up to 16 GB (8GB x 2)

Storage

• Drive Bay(s): 5 Bays
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 50 TB (10 TB HDD x 5) (Capacity may vary by RAID types)

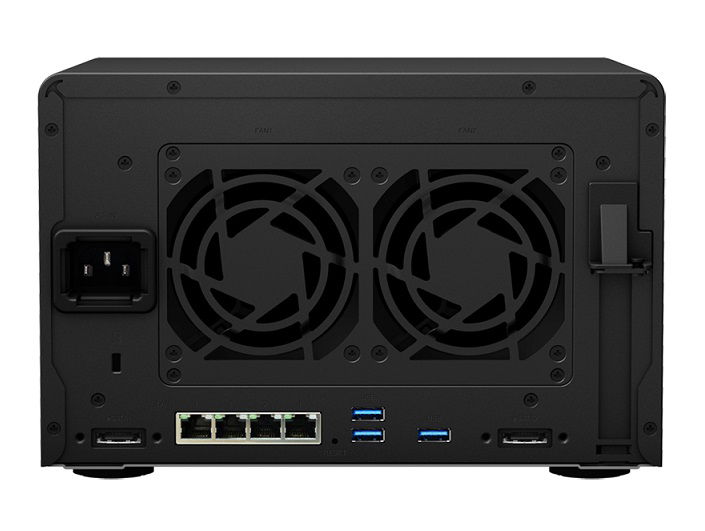

Ports:

• USB 3.0 Port: 4
• eSATA Port: 2
• RJ-45: 4 (with Link Aggregation / Failover support)

File System

• Internal Drives: Btrfs, EXT4
• External Drives: EXT4, EXT3, FAT, NTFS, HFS+

Other Features

• System Fan: 80 mm x 80 mm x 2 pcs
• Wake on LAN: Yes
• Power Recovery: Yes
• Noise Level: 26.2 dB(A)
• Power Supply Unit / Adapter: 200W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 HZ, Single Phase
• Power Consumption: 42.1 W (Access), 23.1 W (HDD Hibernation)

General Specifications

• Operating Temperature: 5°C to 35°C (40°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH
• Dimensions (H x W x D): 166 x 250 x 243mm
• Weight: 4.46 kg
