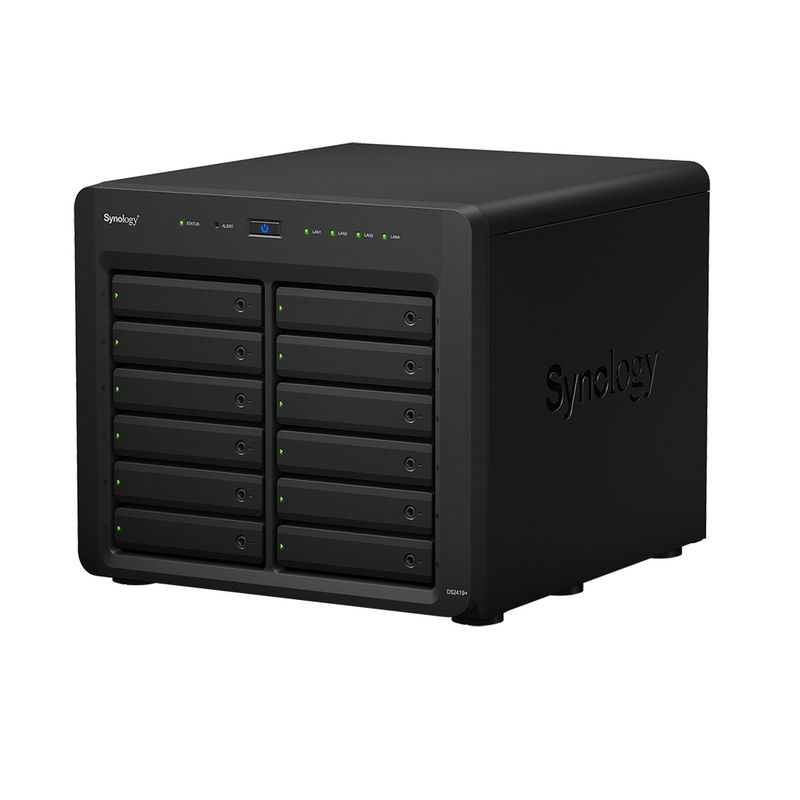

Synology DiskStation DS2419+ 12 Bay 4GB Diskless Tower NAS

High-capacity and scalable desktop NAS adapted to small- to medium-sized businesses needs

A flexible, reliable, and efficient storage solution

• DS2419+ is a high-capacity and scalable NAS with on-the-fly volume expansion capability, upgradable memory configuration, and diversified add-in card options to meet the needs of modern businesses which require a flexible, reliable, and efficient storage solution.

Boost your storage performance with easy-to-install add-in cards

• Equipped with a PCIe 3.0 slot, DS2419+ supports installing an M.2 SSD adapter card or 10GbE NIC for a high-IOPS system cache and ultra-fast data transmission.

Next-generation file system for better data protection

• The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Ultimate Backup Solution

• DS2419+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Fully certified storage virtualization solutions

• Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

CPU:

• CPU Model: Intel Atom C3538
• CPU Architecture: 64-bit
• CPU Frequency: Quad Core 2.1 GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory:

• System Memory: 4 GB DDR4
• Memory Module Pre-installed: 4 GB (4 GB x 1)
• Total Memory Slots: 2
• Memory Expandable up to: 32 GB (16 GB x 2)

Storage:

• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 24
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
• Maximum Raw Capacity with Expansion Units: 384 TB (192 TB + 16 TB drive x 12) (Capacity may vary by RAID types)
• Maximum Single Volume Size: 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
• Hot Swappable Drive: Yes

External Ports:

• RJ-45: 1GbE LAN Port 4 (with Link Aggregation / Failover support)
• USB 3.0 Port: 2
• Expansion Port: 1

PCIe:

• PCIe Expansion 1 x Gen3 x8 slot (black, x4 link)
• Add-In-Card Support : PCIe Network Interface Card, M2D18 - Dual M.2 SATA/NVMe SSD adapter card for SSD cache

File System:

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT*

Environmental:

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% RH

General Specifications:

• System Fan 120 mm x 120 mm x 2 pcs
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Easy Replacement System Fan: Yes
• Power Recovery: Yes
• Noise Level: 22.3 dB(A)
• Scheduled Power On / Off: Yes
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 500 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 101.6 W (Access), 43.96 W (HDD Hibernation)
• British Thermal Unit: 346.9 BTU/hr (Access), 150.09 BTU/hr (HDD Hibernation)
• Dimensions (Height x Width x Depth) 270 mm x 300 mm x 340 mm
• Weight 9.5 kg

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2
• Quick Installation Guide X 1
